Page #10 background imageLoading...
Page #10 background image
9
CFD-E90L

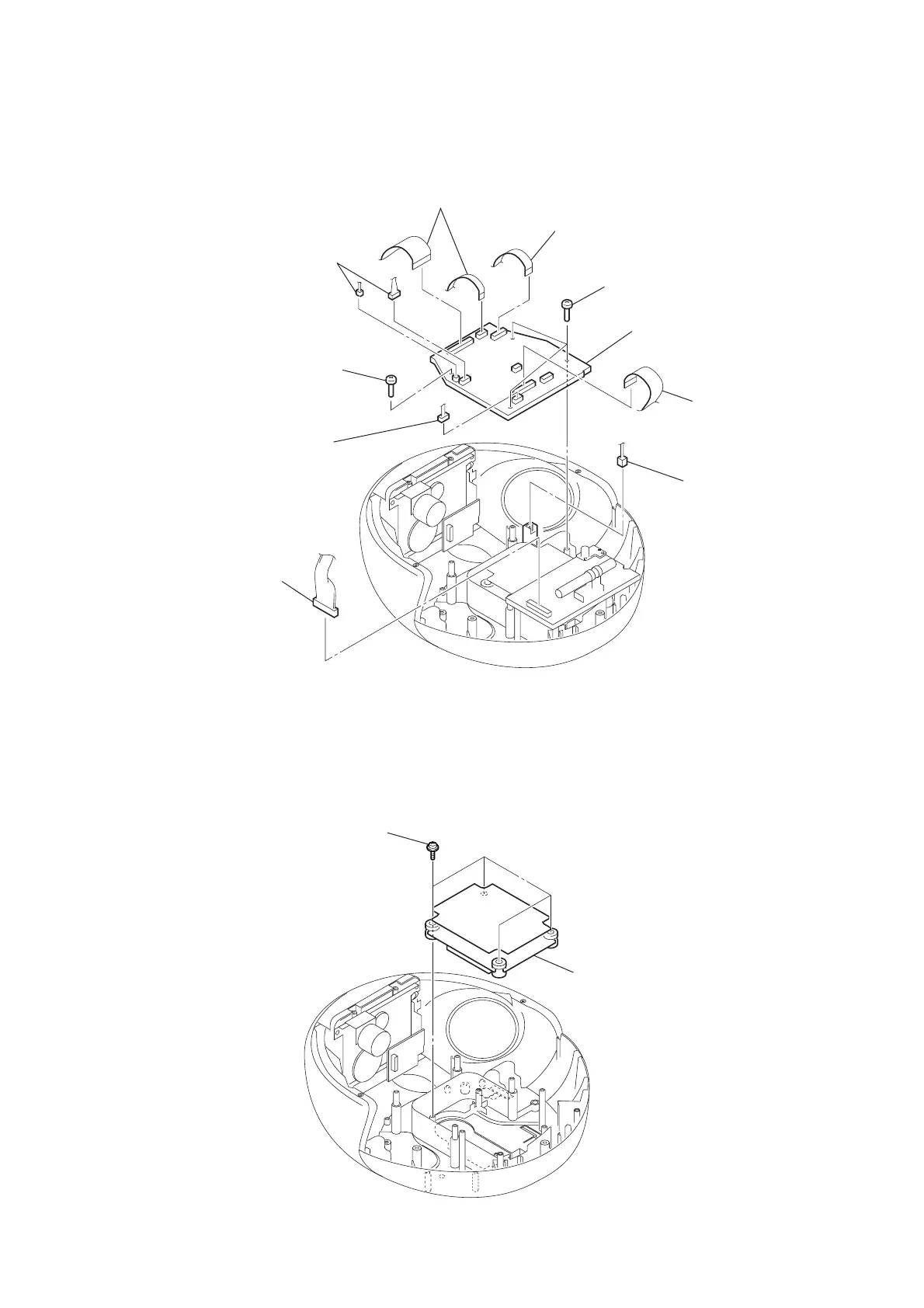

3-5. MAIN BOARD
3-6. CD MECHANISM DECK
(KSM-213RDP)
1
four screws
(2.6
×
10)
2
CD mechanism dec
k
(KSM-213RDP)
3
three screws
(2.6
×
8)
4
screw (2.6
×
8)
2
connector
(CNP1)
1
flexible flat cable
(CN803)
5
main board
2
two connectors
(CNP314, CN331)
2
connector
(KH802)
2
connector
(CN312)
1
flexible flat cable
(CN310)
1
two flexible flat cables
(CN802, 804)
