Sony cfd-s27 - Main Unit Component Separation

– 6 –

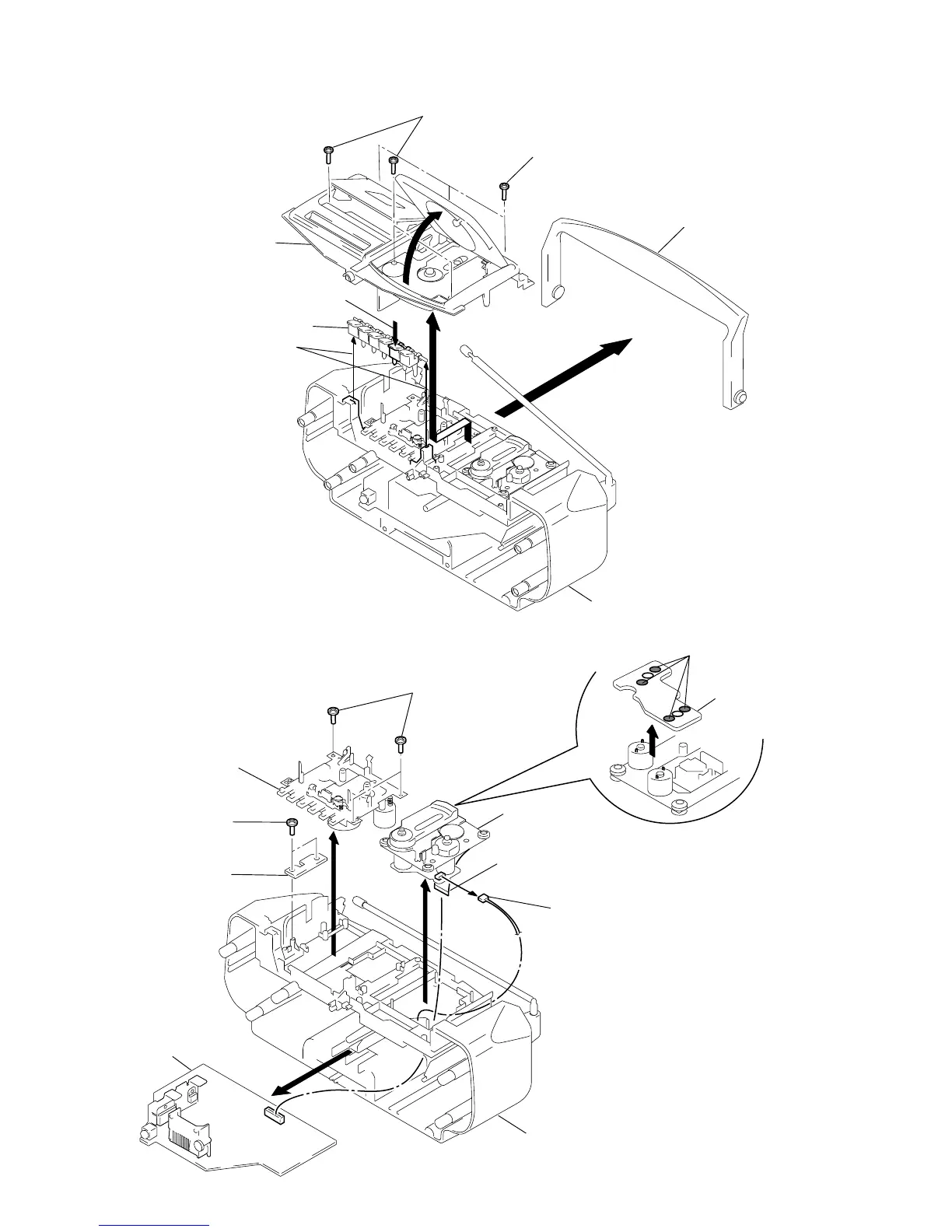

3-3. CABINET (UPPER)
3-4. OPTICAL PICK-UP SECTION, MECHANISM DECK, MAIN BOARD,
REC SW BOARD, CD MOTOR BOARD
Cabinet (Rear)
6
7
3
5
2
STOP/EJECT
4 Screws
+BVTP (3X10)
1 Screws
+BVTP (3X10)
Handle
Tape operation buttons
Cabinet (Upper)
2 CNP707 (6pin)
Cabinet (Rear)
Main board
REC SW board
3 Wire (Flat type) (16 core)
to MAIN board (CN701)
5 Screws +BVTP (3X10)
7 Screws +BVTP (3X10)
6
1
4
Optical pick-up
section
Mechanism deck
9
CD motor board
8 Remove solder
