SECTION 2
DISASSEMBLY

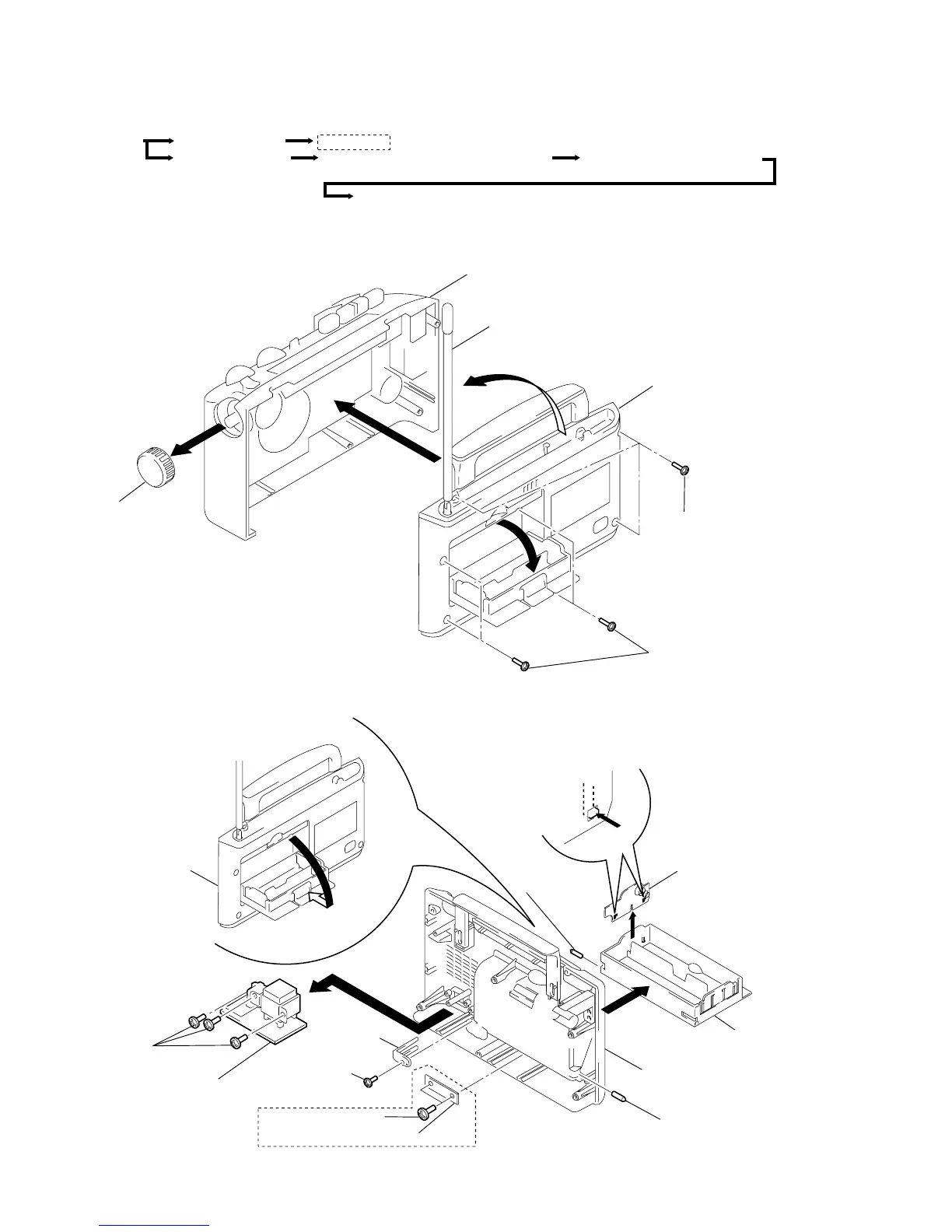

2-1. CABINET (REAR) REMOVAL
2-2. ISS SW BOARD, BATTERY CASE, BATTERY BOARD, POWER BOARD REMOVAL
Note : Follow the disassembly procedure in the numerical order given.
z
The equipment can be removed using the following procedure.
ISS SW board , BATTERY CASE, BATTERY board, POWER board
Main board, TUN LED board, TACT SW board
Mechanism deck, DECK CONTROL board, VOLUME board
Cabinet (Rear) assy
Set
Cabinet (Front) assy
AEP, UK model
H/P JACK board, DOOR EAR (PH),
BOX EAR (PH)
1
4
3
5
ANT1
Knob, TU
Cabinet (Front) assy
Cabinet (Rear) assy
2 Screws (+BV 3X14)
2 Screws (+BV 3X14)
5
8
7
2
Cabinet (Rear) assy
AEP, UK model
BATTERY board
ISS SW board
Battery cas
e
Cabinet (Rear) assy
Stoper, wire
3 Screw
(+BV 3x10)
1 Screws (+BV 3x10)
4 Shaft, handle
6 Shaft, handle
0
9 Screw
(+BV 3x10)
Power board
Ver 1.1 2001.11
