Sony CFS-903L - Section 6 Exploded Views

Oo On A
W
12
13

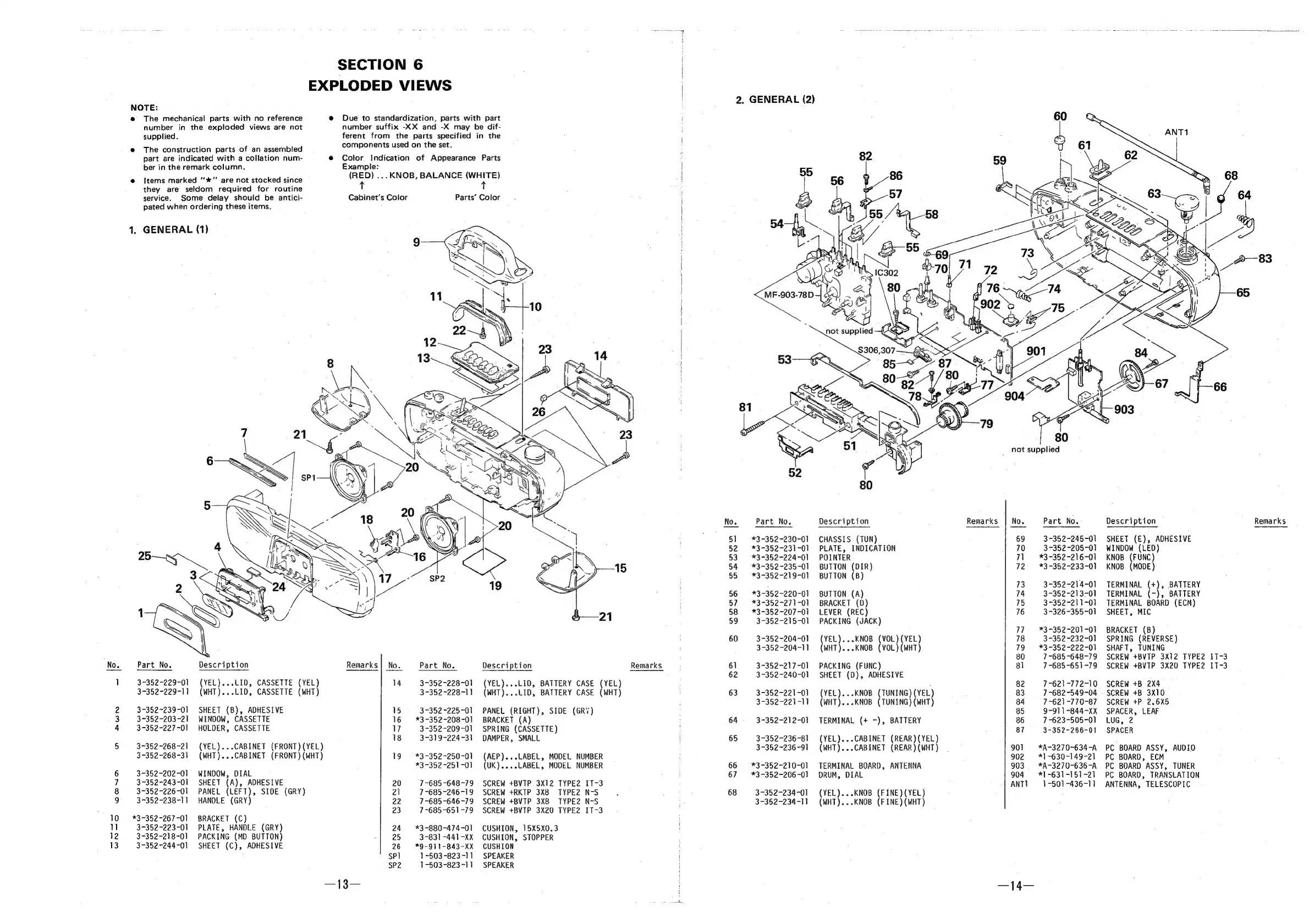

SECTION 6
EXPLODED VIEWS
NOTE:
@ The mechanical parts with no reference
number in the exploded views are not
supplied.
e@ The construction parts of an assembled
part are indicated with a collation num-
ber in the remark column.
@ [tems marked ‘x’ are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.
Due to standardization, parts with part
number suffix -XX and -X may be dif-
ferent from the parts specified in the
components used on the set.
Color Indication of Appearance Parts
Example:
(RED) ...KNOB, BALANCE (WHITE)
t t
Parts’ Color
Cabinet's Color
1, GENERAL (1)
Part No.
3-352-229-01
3-352-229-11
3-352-239-01
3~352-203-21
3-352-227-01
3-352-268-21
37-352-268-31
3-352-202-01
3-352-243-01
3-352-226-01
37352-238-11
*3-352-267-01
3-352-223-01
3-352-218-01
3-352-244-01
Description
(YEL)...LID, CASSETTE (YEL)
(WHT)...LID, CASSETTE (WHT)
SHEET (B), ADHESIVE
WINDOW, CASSETTE
HOLDER, CASSETTE
(YEL)...CABINET (FRONT) (YEL)
(WHT)...CABINET (FRONT) (WHT)
WINDOW, DIAL
SHEET (A), ADHESIVE
PANEL (LEFT), SIDE (GRY)
HANDLE (GRY)
BRACKET (C)
PLATE, HANDLE (GRY)
PACKING (MD BUTTON)
SHEET (C), ADHESIVE
Remarks | No. Part No. Description Remarks
14 3-352-228-01 (YEL)...LID, BATTERY CASE (YEL)
3-352-228-11 (WHT)...LID, BATTERY CASE (WHT)
15 3-352-225-01 PANEL (RIGHT), SIDE (GR‘)
16 *3-352-208-01 BRACKET (A)
7 3-352-209-01 SPRING (CASSETTE)
18 3-319-224-31 DAMPER, SMALL
19 = *3-352-250-01 (AEP)...LABEL, MODEL NUMBER
*3-352-251-01 (UK)....LABEL, MODEL NUMBER
20 7-685-648-79 SCREW +BVIP 3X12 TYPE2 IT-3
2] 7-685-246-19 SCREW +RKTP 3X8 TYPE2 N-S
22 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N~-S
23 7-685-651-79 SCREW +BVIP 3X20 TYPE2 IT-3
24 *3-880-474-01 CUSHION, 15X5xX0.3
25 37-831 -441-XX CUSHION, STOPPER
26 *9-911-843-XX CUSHION
SP] 1-503-823-11 SPEAKER
SP2 1-503-823-11 SPEAKER
eae
2. GENERAL (2)
No.
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
53
Part No.
*3-352~-230-01
*3-352-231-01
*3-352-224-01
*3-352-235-01
*3-352-219-01
*3-352-220-01
*3-352-271-01
*3-352-207-01
3-352-215-01
3-352-204-01
3-352-204-11
3-352-217-01
3-352-240-01
3-352-221-01
3-352-221-11
3-352~-212-01
3-352-236-81
3-352 -236-91
*3~-352-210-01
*3-352-206-01
3-352-234-01
3-352-234-31
g b |
$96 307
Description
CHASSIS (TUN)
PLATE, INDICATION
POINTER
BUTTON (DIR)
BUTTON (B)
BUTTON (A)
BRACKET (D)
LEVER (REC)
PACKING (JACK)
(YEL)...KNOB (VOL) (YEL)
(WHT)...KNOB (VOL) (WHT)
PACKING (FUNC)
SHEET (D), ADHESIVE
(YEL)...KNOB (TUNING) (YEL)
(WHT)...KNOB (TUNING) (WHT)
TERMINAL (+ -), BATTERY
(YEL)...CABINET (REAR) (YEL)
(WHT). ..CABINET (REAR) (WHT)
TERMINAL BOARD, ANTENNA
DRUM, DIAL
(YEL)...KNOB (FINE) (YEL)
(WHT)...KNOB (FINE) (WHT)
not supplied SSS
Remarks | No.
69
70
7]
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
901
902
903
904
ANTI
not supplied
Part No.
3-352-245-01
3~-352-205-01
*3~352-216-01
*3-352-233-01
3-352-214-01
3-352-213-01
3-352-211-01
3-326-355-01
*3-352-201~01
37352-232-01
*3-352-222-01
7-685 -648-79
7-685-651~79
7-621-772-10
7-682-549-04
7~621-770~87
9-911 -844-XX
7-623-505-01
3-352-266-01
*A-3270-634-A
*]-630-149-21
*A-3270-636-A
*1-631-151-21
1-501 ~436-11
Description Remarks
SHEET (E), ADHESIVE
WINDOW (LED)
KNOB (FUNC)
KNOB (MODE)
TERMINAL (+), BATTERY
TERMINAL (-), BATTERY
TERMINAL BOARD (ECM)
SHEET, MIC
BRACKET (B)
SPRING (REVERSE)
SHAFT, TUNING
SCREW +BVTP 3X12 TYPE2 11-3
SCREW +BVTP 3X20 TYPE2 11-3
SCREW +B 2X4
SCREW +B 3X10
SCREW +P 2.6X5
SPACER, LEAF
LUG, 2
SPACER
PC BOARD ASSY, AUDIO
PC BOARD, ECM
PC BOARD ASSY, TUNER
PC BOARD, TRANSLATION
ANTENNA, TELESCOPIC
