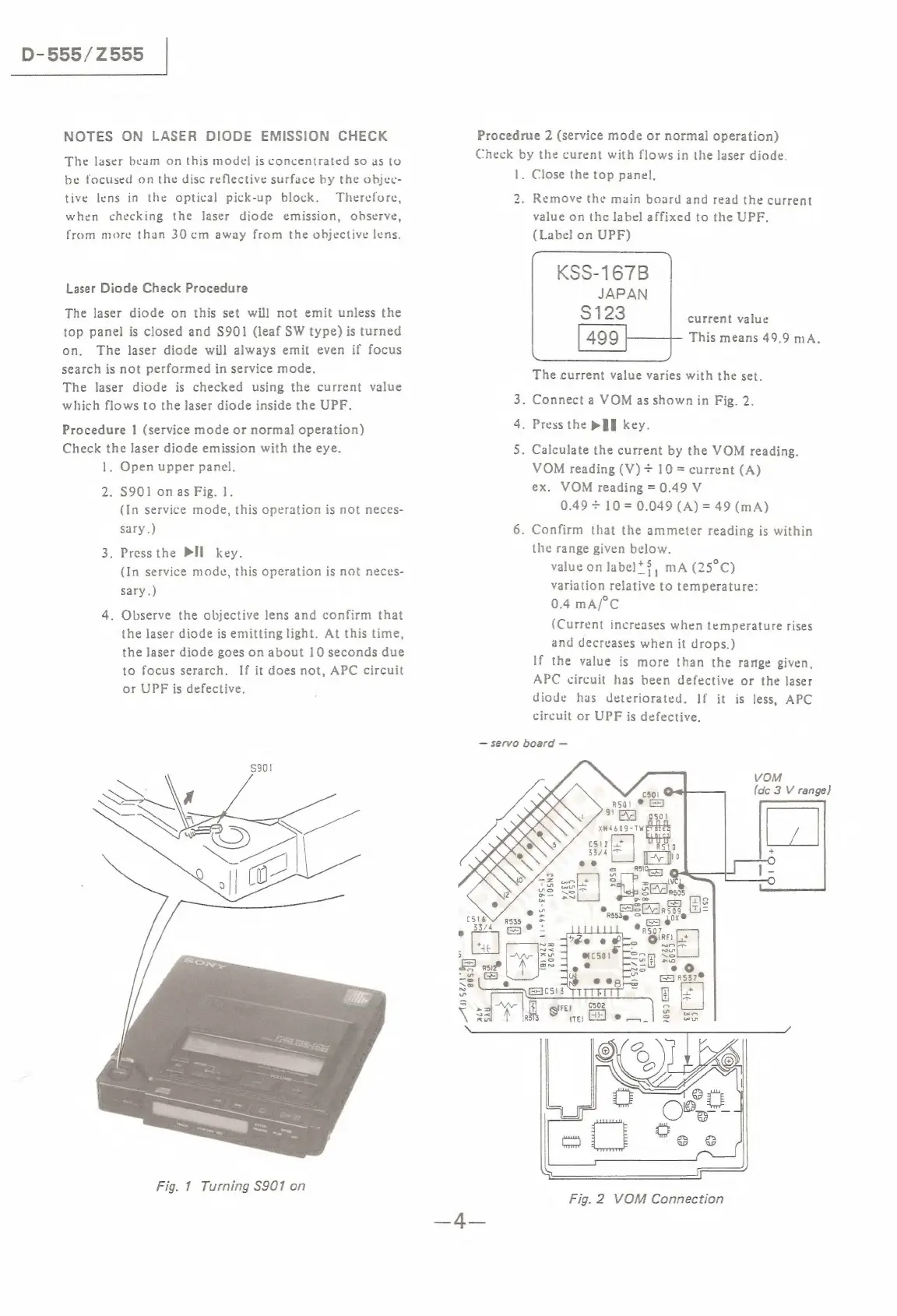

D-555/Z555
|
NOTES
ON
LASER
DIODE
EMISSION
CHECK
The
laser
beam
on
this
model
is
concentrated
so
as
to
be
focused
on
the
disc
reflective
surface
by
the
objec-
tive lens
in
the
optical
pick-up
block.
Therefore,
when
checking
the
laser
diode
emission,
observe,
from
more
than
30cm
away
from
the
objective
lens.
Laser
Diode
Check
Procedure
The
laser
diode
on
this
set
will
not
emit
unless
the
top
panel
is
closed
and
S901
(leaf
SW
type)
is
turned
on.
The
laser
diode
will
always
emit
even
if
focus
search
is
not
performed
in
service
mode.
The
laser
diode
is
checked
using
the
current
value
which
flows
to
the
laser
diode
inside
the
UPF.
Procedure
1
(service
mode
or
normal
operation)
Check
the
laser
diode
emission
with
the
eye.
1.
Open
upper
panel.
2.
$901
onas
Fig.
1.
(In
service
mode,
this
operation
is
not
neces-
sary.)
3.
Pressthe
PI
key.
(In
service
mode,
this
operation
is
not
neces-
sary.)
4.
Observe
the
objective
lens
and
confirm
that
the
laser
diode
is
emitting
light.
At
this
time,
the
laser
diode
goes
on
about
10
seconds
due
to
focus
serarch.
If
it
does
not,
APC
circuit
or
UPF
is
defective.
$901
Fig.
1
Turning
S907
on
Procedrue
2
(service
mode
or
normal
operation)
Check
by
the
curent
with
flows
in
the
laser
diode.
1.
Close
the
top
panel,
2.
Remove
the
main
board
and
read
the
current
value
on
the
label
affixed
to
the
UPF.
(Label
on
UPF)
KSS-167B
JAPAN
S
123
current
value
This
means
49.9
mA.
The
current
value
varies
with
the
set.
3.
Connect
a
VOM
as
shown
in
Fig.
2.
4.
Press
the
PJ
key.
5.
Calculate
the
current
by
the
VOM
reading.
VOM
reading
(V)
+
10
=
current
(A)
ex.
VOM
reading
=0.49
V
0.49
+
10
=
0.049
(A)
=
49
(mA)
6.
Confirm
that
the
ammeter
reading
is
within
the
range
given
below.
value
on
label*?,
mA
(25°C)
variation
relative
to
temperature:
0.4
mA/°C
(Current
increases
when
temperature
rises
and
decreases
when
it
drops.)
If
the
value
is
more
than
the
range
given,
APC
circuit
has
been
defective
or
the
laser
diode
has
deteriorated.
If
it
is
less,
APC
circuit
or
UPF
is
defective.
servo
board
VOM
(dc
3
V
range)
Fig.
2
VOM
Connection
