NOTE:
@ The mechanical parts with no reference
number in the exploded views are not
supplied.
@ The construction parts of an assembled
part are indicated with a collation num-
ber in the remark column.
@ [tems marked "*” are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.

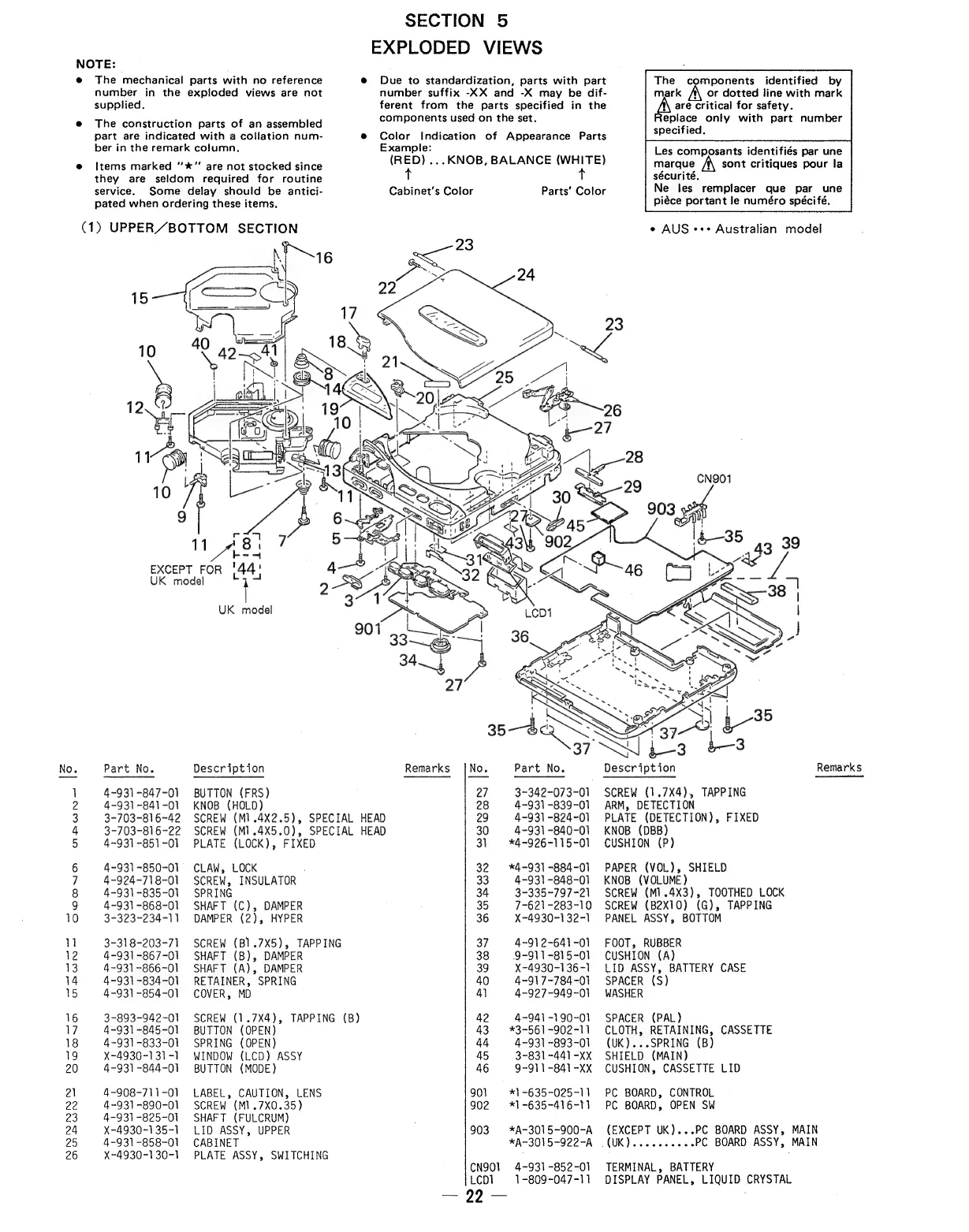

(1) UPPER/BOTTOM SECTION
SECTION 5
EXPLODED VIEWS
@® Due to standardization, parts with part
number suffix -XX and -X may be dif-
ferent from the parts specified in the
components used on the set.
e Color Indication of Appearance Parts
Example:
(RED) ...KNOB, BALANCE (WHITE)
t t
Parts’ Color
Cabinet's Color
The components identified by
mark or dotted line with mark
are Critical for safety.
eplace only with part number
specified.
Les composants identifiés par une
marque
sécurité,
Ne jes remplacer que par une
piéce portant le numéro spécifé.
sont critiques pour la
UK model
No. Part No. Description Remarks |No. Part No. Description Remarks
| 4-931-847-01 BUTTON (FRS) 27 3~342-073-01 SCREW (1.7X4), TAPPING
2 4-931 -841-01 KNOB (HOLD) 28 4-931-839~-01 ARM, DETECTION
3 3-703-816-42 SCREW (Ml .4X2.5), SPECIAL HEAD 29 4~931-824-01 PLATE (DETECTION), FIXED
4 3-703-816-22 SCREW (M1.4X5.0), SPECIAL HEAD 30 4-931-840-01 KNOB (DBB)
5 4-931-851-01 PLATE (LOCK), FIXED 31 *4-926-115-01 CUSHION (P)
6 4-931~-850-01 CLAW, LOCK ; 32 *4-931-884-01 PAPER (VOL), SHIELD
7 4-924-718-01 SCREW, INSULATOR 33 4-931-848-01 KNOB (VOLUME)
8 4-931-835-01 SPRING 34 3-335~-797-21 SCREW (MI.4X3), TOOTHED LOCK
9 4-931-868-01 SHAFT (C), DAMPER 35 7-621-283-10 SCREW (B2X10) (G), TAPPING
10 3-323-234-11 DAMPER (2), HYPER 36 X-4930-132-1 PANEL ASSY, BOTTOM
| 3-318-203-71 SCREW (B1.7X5), TAPPING 37 4-912-641-01 FOOT, RUBBER
12 4-931-867-01 SHAFT (B), DAMPER 38 9-911-815-01 CUSHION (A)
13 4-931-866-01 SHAFT (A), DAMPER 39 X-4930-136-1 LID ASSY, BATTERY CASE
14 4-931 -834-01 RETAINER, SPRING 40 4-917-784-01 SPACER (S)
15 4-931-854-01 COVER, MD 4] 4-927-949-01 WASHER
16 3-893-942-01 SCREW (1.7X4), TAPPING (B) 42 4-941-190-01 SPACER (PAL)
7 4-931-845-01 BUTTON (OPEN) 43 -*3-561-902-11 CLOTH, RETAINING, CASSETTE
18 4-931-833-01 SPRING (OPEN) 44 4~931-893-01 (UK)...SPRING (B)
19 X-4930-131-1 WINDOW (LCD) ASSY 45 3-831~-441-XX SHIELD (MAIN)
20 4-931 ~-844-01 BUTTON (MODE) 46 9~-911~841-XX CUSHION, CASSETTE LID
21 4-908-711~01 LABEL, CAUTION, LENS 901 = *1 -635-025-11 PC BOARD, CONTROL
22 4-931-890-01 SCREW (M1 .7X0.35) 902 *1-635~-416-1t1 PC BOARD, OPEN SW
23 4-931 -825-01 SHAFT (FULCRUM)
24 X-4930-135-1 LID ASSY, UPPER 903. *A-3015-900-A (EXCEPT UK)...PC BOARD ASSY, MAIN
25 4-931-858-01 CABINET *A-3015-922-A (UK)... eee eens PC BOARD ASSY, MAIN
26 X-4930-130-1 PLATE ASSY, SWITCHING :
CN901 4-931-852-01 TERMINAL, BATTERY
LCDI = =1-809~-047-11
EXCEPT FOR i4
UK model
4
e AUS «++ Australian model
DISPLAY PANEL, LIQUID CRYSTAL
