Sony D-99 - Section 5 Exploded Views; Upper;Bottom Section

NOTE:
@ The mechanical parts with no reference
=z °
)
—_ owon ROE,
ml
12
14
15
16
7
18
19
number in the exploded views are not
supplied.
The construction parts of an assembled
part are indicated with a collation num-
ber in the remark column.
Items marked "*" are not stocked since
they are seldom. required for routine
service. Some delay should be antici-
pated when ordering these items.

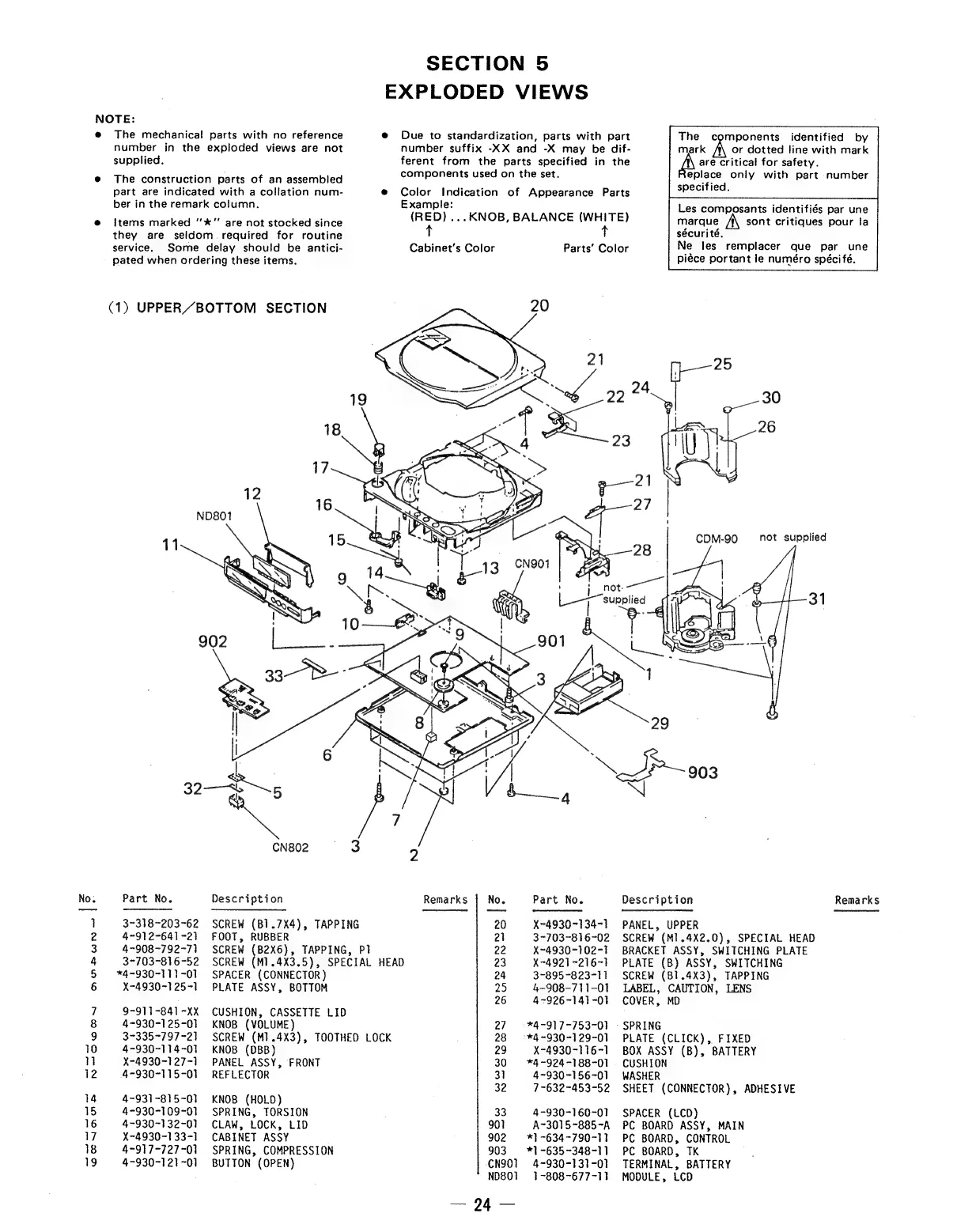

(1) UPPER,,BOTTOM SECTION
SECTION 5
EXPLODED VIEWS
@ Due to standardization, parts with part
number suffix -XX and -X may be dif-
ferent from the parts specified in the
components used on the set.
@ Color Indication of Appearance Parts
Example:
(RED)... KNOB, BALANCE (WHITE)
t
Cabinet's Color Parts’ Color
The components identified by
mark or dotted line with mark
A are critical for safety.
eplace only with part number
specified.
Les composants identifiés par une
marque sont critiques pour fa
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifé.
CDM-90 not supplied
CN802 3 9
Part No. Description Remarks | No. Part No. Description Remarks
3-318-203-62 SCREW (B1.7X4), TAPPING 20 X~4930-134-1 PANEL, UPPER
4-912-641-21 FOOT, RUBBER 21 37703-816-02 SCREW (MI.4X2.0), SPECIAL HEAD
4-908-792-71 SCREW (B2X6), TAPPING, P1 22 X~4930-102-1 BRACKET ASSY, SWITCHING PLATE
3-703~816-52 SCREW (M1.4X3.5), SPECIAL HEAD 23 X-4921-216~1 PLATE (B) ASSY, SWITCHING
*4-930-111-01 SPACER (CONNECTOR) 24 3-895-823-11 SCREW (B1.4X3), TAPPING
X~4930-125-1 PLATE ASSY, BOTTOM 25 4-908-711-O1 LABEL, CAUTION, LENS
26 47926-143-01 COVER, MD
9-911-841-XX CUSHION, CASSETTE LID
4-930-125-01 KNOB (VOLUME) 27 = *4-917-753-01 - SPRING
37-335-797~-21 SCREW (M1.4X3), TOOTHED LOCK 28 = *4~930-129-01 «PLATE (CLICK), FIXED
4~930-114-01 KNOB (DBB) 29 X-4930-116-1 BOX ASSY (B), BATTERY
X-4930-127-1 PANEL ASSY, FRONT 30 = *4-924-188-01 CUSHION
4-930-115-01 REFLECTOR 31 4-930~-156-01 WASHER
32 7-632-453-52 SHEET (CONNECTOR), ADHESIVE
4-931~815-01 KNOB (HOLD)
4-930-109-01 SPRING, TORSION 33 4-930-160-01 SPACER (LCD)
4-930-132-01 CLAW, LOCK, LID 901 A~3015~885-A PC BOARD ASSY, MAIN
X-4930-133-1 CABINET ASSY 902 *1-634-790-11 PC BOARD, CONTROL
4-917-727-01 SPRING, COMPRESSION 903 *1-635-348-11 PC BOARD, TK
4-930-121-01 BUTTON (OPEN) -CN9O01 «=4-930-137-01 TERMINAL, BATTERY
; ND801 1-808-677-11 MODULE, LCD
