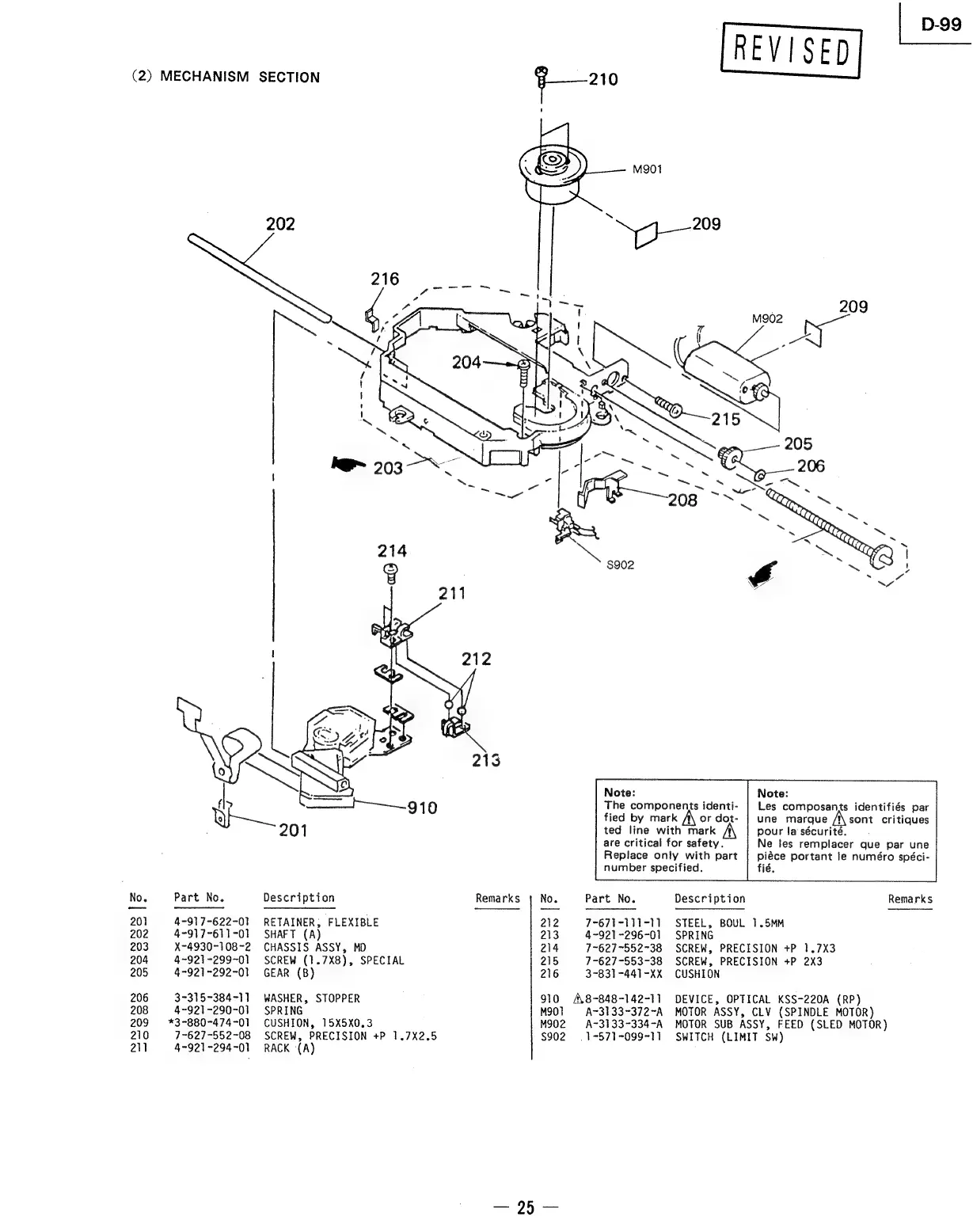

Sony D-99 - Mechanism Exploded View

(2) MECHANISM SECTION
No.
201
202
203
204
205
206
208
209
210
2u1
Part No.
4-917-622-01
4-917-611-01
X-4930-108~2
4~921-299~01
4-921~292-01
3-315-384-11
4-921 -290-01
*3-880-474-01
7-627-552-08
4-921 -294-01
Description
RETAINER; FLEXIBLE
SHAFT (A)
CHASSIS ASSY, MD
SCREW (1.7X8), SPECIAL
GEAR (B)
WASHER, STOPPER
SPRING
CUSHION, 15X5X0.3
SCREW, PRECISION +P 1.7X2.5
RACK -(A)
Remarks No.
212
213
214
215
216
910
M901
M902
$902
Note:
The components identi-
fied by mark A\ or dot-
ted line with mark
are critical for safety.
Replace only with part
number specified.
Part No. Description
D-99
Note:
Les composants identifiés par
une marque A\ sont critiques
pour fa sécurité.
Ne les remplacer que par une
piéce portant le numéro spéci-
fié.
Remarks
7-673-111-11 STEEL, BOUL 1.5MM
4~921-296-01 SPRING
7-627~552-38 SCREW, PRECISION +P 1.7X3
7-627-553-38 SCREW, PRECISION +P 2x3
3-831 -441-XX CUSHION
A8-848-142-11 DEVICE, OPTICAL KSS-220A (RP)
A-3133-372-A MOTOR ASSY, CLV (SPINDLE MOTOR)
A-3133-334-A MOTOR SUB ASSY, FEED (SLED MOTOR)
_1-571-099-11 SWITCH (LIMIT SW)
