Sony D-E200 - Upper Cabinet Assembly Parts

– 25 –
SECTION 6
EXPLODED VIEWS
Ref. No. Part No. Description Remark

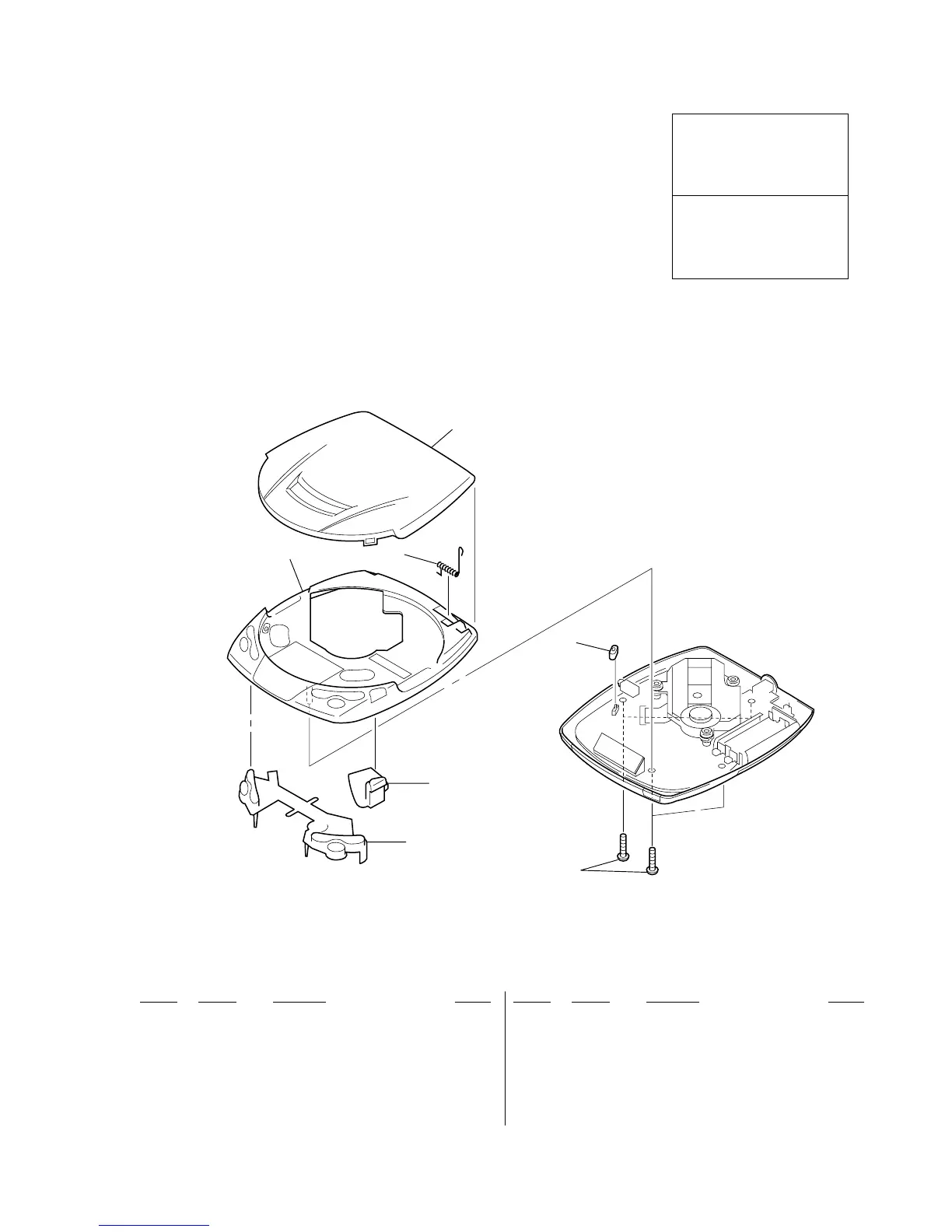

6-1. CABINET (UPPER) SECTION
Ref. No. Part No. Description Remark
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• Accessories and packing materials are
given in the last of this parts list.
• Abbreviation
CND : Canadian model
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
1 X-3378-735-1 LID ASSY, UPPER (SILVER) (E200)
1 X-3378-738-1 LID ASSY, UPPER (SILVER) (E201)
1 X-3378-739-1 LID ASSY, UPPER (BLUE) (E201)
1 X-3378-743-1 LID ASSY, UPPER (SILVER) (E206CK)
1 X-3378-746-1 LID ASSY, UPPER (SILVER) (E251)
2 4-215-485-01 SPRING, TORSION
3 3-336-395-01 SCREW (B2X10) (G), TAPPING
4 3-043-802-01 KNOB (ESP)
5 4-214-869-11 BUTTON (OPEN) (SILVER)
5 4-214-869-21 BUTTON (OPEN) (BLUE) (E201)
6 X-3378-731-1 CABINET (UPPER /S) (SERVICE) ASSY (SILVER)
6 X-3378-732-1 CABINET (UPPER /L) (SERVICE) ASSY
(BLUE) (E201)
7 4-214-868-41 BUTTON (CONTROL)
1
2
5
7
4
3
6
