X-3378-320-1 COVER ASSY, LID (EJ611:AUS,E13)
X-3378-321-1 COVER ASSY, LID (EJ611:AUS,E13)
X-4952-143-1 COVER ASSY, LID (SILVER)
X-4952-401-1 COVER ASSY, LID (BLUE)
(E660,EJ611:EXCEPT C&SA, EE,EA, AR, EJ613,
EJ615:EXCEPT CND,FR,EE)
X-4952-403-1 COVER ASSY, LID (BLACK)
(EJ611:AEP,UK,FR,G,AUS,E13/EJ615:AEP,UK)
X-4952-404-1 COVER ASSY, LID (YELLOW)
(EJ611:AEP,G,AUS,E13,EJ615:AEP,FR)
4-223-605-01 LID,UPPER (SILVER)
(EJ615:US,CND,AUS,E13,E33,HK,CH)
4-223-605-11 LID,UPPER (BLUE)
(EJ615:US,CND,AUS,E13,E33,C&SA,HK,CH)
4-223-605-21 LID,UPPER (BLACK) (EJ615:AEP,UK)
4-223-605-31 LID,UPPER (YELLOW) (EJ615:AEP,FR)
4-223-605-81 LID,UPPER (BLACK) (EJ610/EJ613)
4-223-605-91 LID,UPPER (SILVER) (EJ613)
4-225-281-01 LID,UPPER (SILVER) (EJ611:EXCEPT
AEP,G,UK,FR,EE)
4-225-281-11 LID,UPPER (BLUE) (EJ611:EXCEPT AEP,G,UK,FR,EE)
4-225-281-21 LID,UPPER (BLACK) (EJ611:EXCEPT AEP,G,UK,FR,EE)
4-225-281-31 LID,UPPER (YELLOW)
(EJ611:EXCEPT AEP,G,UK,FR,EE)
4-225-281-41 LID, UPPER (EJ611:EXCEPT AEP,G,UK,FR,EE)
4-225-281-51 LID, UPPER (EJ611:EXCEPT AEP,G,UK,FR,EE)
4-223-603-01 CABINET (FRONT) (DARK GRAY)
4-223-603-11 CABINET (FRONT) (BLUE)
(E660,EJ611:EXCEPT C&SA, EE,EA, AR, EJ613,
EJ615:EXCEPT US,CND,C&SA,FR,EE)
––––––––––
4-223-606-01 LID,BATTERY (SILVER,BLACK)
4-223-606-11 LID, BATTERY (BLUE)
(E660,EJ611:EXCEPT C&SA, EE,EA, AR, EJ613,
EJ615:EXCEPT US,CND,C&SA,FR,EE)
4-223-606-21 LID, BATTERY (YELLOW)
(EJ611:AEP,G,AUS,E13,EJ615:AEP,FR)
4-223-609-11 KNOB (JOGGABLE) (BLUE)
(E660,EJ611:EXCEPT C&SA, EE,EA, AR, EJ613,
EJ615:EXCEPT US,CND,C&SA,FR,EE)
4-223-609-21 KNOB (JOGGABLE) (YELLOW)
(EJ611:AEP,G,AUS,E13,EJ615:AEP,FR)
12
17
20
22
24
4
5
8
9
– 3 –– 2 –

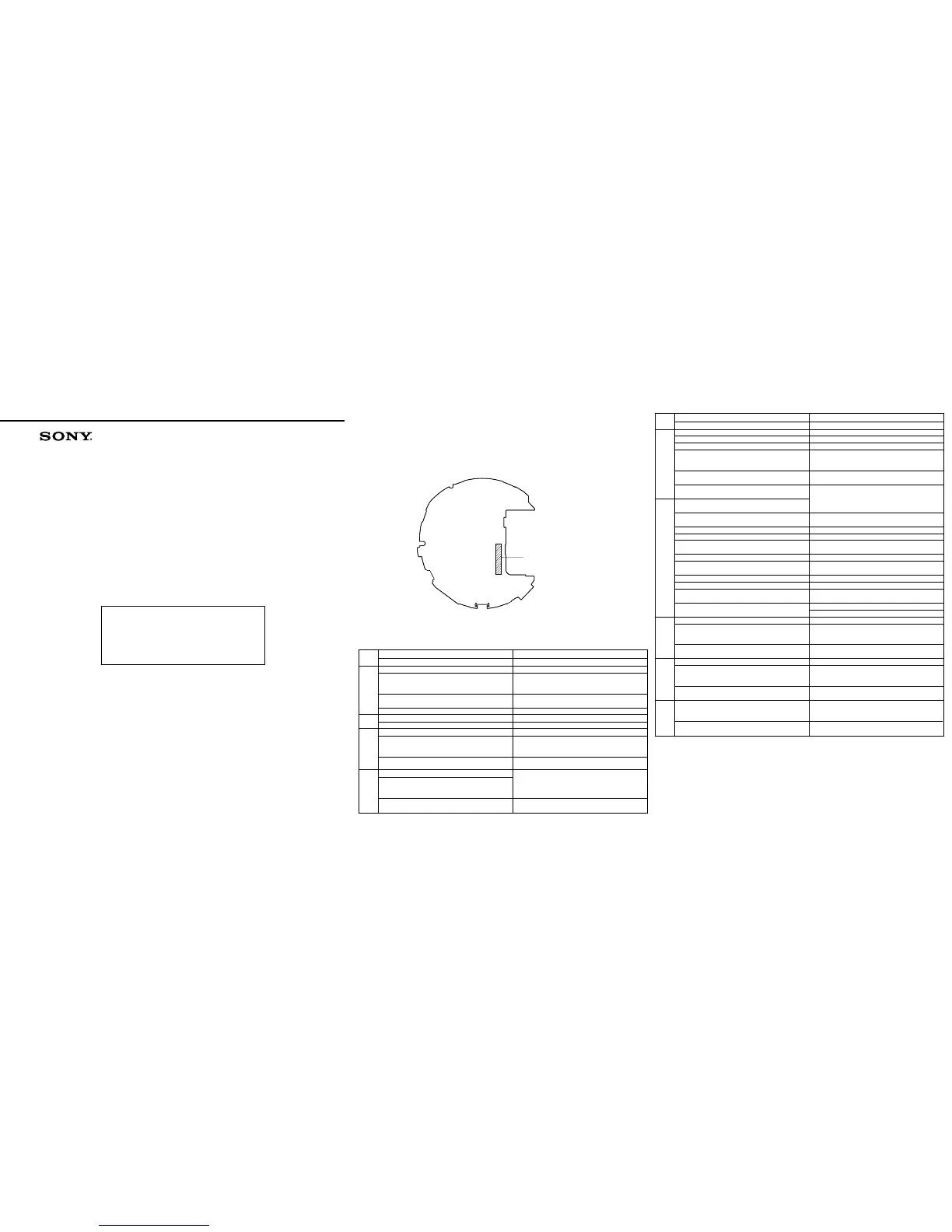

SERVICE MANUAL
SUPPLEMENT - 1
File this Supplement with the Service Manual.
Subject :

MODEL ADDETION
D-EJ610 (EAST EUROPEAN MODEL)
D-EJ611 (C&SA MODEL)
D-EJ611 (MEXICAN MODEL)

CHANGE OF MAIN BOARD

EXPLODED VIEWS

ELECTRICAL PARTS LIST
(ECN-CDA00801)
US Model
Canadian Model
D-EJ611/EJ615/EJ616CK
AEP Model
D-EJ610/EJ611/EJ613/EJ615/EJ616CK
UK Model
E Model
Australian Model
Chinese Model
D-EJ611/EJ615
Tourist Model
D-E660
D-E660/EJ610/EJ611/EJ613/EJ615/EJ616CK
• Abbreviation
C&SA : Central and South America

CHANGE OF MAIN BOARD
The main board have been changed.
Printed wiring board and schematic diagram of new type, and changed parts list are described in this Supplement-1.
Refer to original service manual (9-927-632-11) previously issued for the other information.
NEW TYPE IDENTIFICATION
[MAIN BOARD] (SIDE A)
1-675-135-12 (Former Type)
1-675-135-13 (New Type)
• Abbreviation
CND : Canadian AUS : Australian
FR : French HK : Hong Kong
AR : Argentina JE : Tourist
G : German EA : Saudi Arabia
CH : Chinese EE : East European
MX : Mexican
C&SA : Central and South America
E13 : AC220-230V area model
E33 : AC100-240V area model
Before Change Afrer Change
Ref. No. Part No. Description Part No. Description
––––––––––
––––––––––
4-223-582-01 COVER, LID (SILVER)
4-223-582-11 COVER, LID (BLUE) (E660/EJ611:US,CND,AEP,
UK,FR,G,AUS,E13,E33,CH/EJ613/EJ615:
AEP,UK,G,AUS,E13,E33,CH,HK)
4-223-582-21 COVER, LID (BLACK) (EJ611:CND,AEP,UK,FR,G,
AUS,E13/EJ615:AEP,G)
4-223-582-31 COVER, LID (YELLOW) (EJ611:AEP,G,AUS,E13/
EJ615:AEP)
4-223-605-01 LID,UPPER (SILVER) (EJ615:US,CND,AUS,E13,
E33,HK,CH)
4-223-605-11 LID,UPPER (BLUE) (EJ615:AUS,E13,E33,HK,CH)
4-223-605-21 LID,UPPER (SILVER) (EJ615:AEP,UK,FR,G,EE)
4-223-605-31 LID,UPPER (BLUE) (EJ615:AEP,G)
3-042-673-01 LID,UPPER (SILVER) (EJ610)
4-223-605-81 LID,UPPER (SILVER) (EJ613)
4-223-605-91 LID,UPPER (BLUE) (EJ613)
4-225-281-01 LID,UPPER (SILVER)
(EJ611:US,CND,C&SA,AUS,AR,E13,E33,EA,CH,MX)
4-225-281-11 LID,UPPER (BLUE) (EJ611:US,CND,AUS,E13,E33,CH)
4-225-281-21 LID,UPPER (BLACK) (EJ611:CND,AUS,E13)
4-225-281-31 LID,UPPER (YELLOW) (EJ611:AUS,E13)
––––––––––
––––––––––
4-223-603-01 CABINET (FRONT) (SILVER,BLACK)
4-223-603-11 CABINET (FRONT) (BLUE) (E660/EJ611:US,CND,
AEP,UK,FR,G,AUS,E13,E33,CH/EJ613/EJ615:
AEP,UK,G,AUS,E13,E33,CH,HK)
4-223-603-21 CABINET (FRONT) (YELLOW) (EJ611:AEP,G,AUS,
E13/EJ615:AEP)
4-223-606-01 LID,BATTERY (SILVER,BLACK)
4-223-606-11 LID, BATTERY (BLUE) (E660/EJ611:US,CND,AEP,
UK,FR,G,AUS,E13,E33,CH/EJ613/EJ615:AEP,UK,
G,AUS,E13,E33,CH,HK)
4-223-606-21 LID, BATTERY (YELLOW) (EJ611:AEP,G,AUS,E13/
EJ615:AEP)
4-223-609-11 KNOB (JOGGABLE) (BLUE) (E660/EJ611:US,CND,
AEP,UK,FR,G,AUS,E13,E33,CH/EJ613/EJ615:AEP,
UK,G,AUS,E13,E33,CH,HK)
4-223-609-21 KNOB (JOGGABLE) (YELLOW) (EJ611:AEP,G,
AUS,E13/EJ615:AEP)
Before Change Afrer Change
Ref. No. Part No. Description Part No. Description
4-993-131-01 KNOB(HOLD)
4-993-131-21 KNOB(HOLD) (FOR BLUE) (E660,EJ661,EJ613,EJ615)
––––––––––
––––––––––
A-3323-399-A MAIN BOARD, COMPLETE (EXCEPT FR/EJ616CK)
A-3323-401-A MAIN BOARD, COMPLETE (EJ616CK)
4-222-793-11 KNOB(OPEN)
4-222-793-21 KNOB(OPEN) (FOR BLUE) (E660,EJ661,EJ613,EJ615)
––––––––––
4-223-607-01 BUTTON (VOLUME)
4-223-607-11 BUTTON (VOLUME) (FOR BLUE)
(E660,EJ661,EJ613,EJ615)
––––––––––
––––––––––
4-993-131-21 KNOB(HOLD) (BLUE) (E660/EJ611:US,CND,AEP,
UK,FR,G,AUS,E13,E33,CH/EJ613/EJ615:
AEP,UK,G,AUS,E13,E33,CH,HK)
4-993-131-31 KNOB(HOLD) (YELLOW) (EJ611:AEP,G,AUS,E13/
EJ615:AEP,FR,G)
4-993-131-41 KNOB(HOLD) (SILVER,BLACK)
A-3323-399-A MAIN BOARD, COMPLETE (EXCEPT US,FR/EJ616CK)
A-3323-401-A MAIN BOARD, COMPLETE (EJ616CK: EXCEPT US)
4-222-793-11 KNOB(OPEN) (SILVER,BLACK)
4-222-793-21 KNOB(OPEN) (BLUE)
(E660/EJ611:US,CND,AEP,UK,FR,G,AUS,E13,E33,CH/
EJ613/EJ615:US,AEP,UK,G,AUS,E13,E33,CH,HK)
4-222-793-31 KNOB(OPEN) (YELLOW) (EJ611:AEP,G,AUS,E13/
EJ615:AEP)
4-223-607-01 BUTTON (VOLUME) (SILVER,BLACK)
4-223-607-11 BUTTON (VOLUME) (BLUE)
(E660/EJ611:US,CND,AEP,UK,FR,G,AUS,E13,E33,CH/
EJ613/EJ615:US,AEP,UK,G,AUS,E13,E33,CH,HK)
4-223-607-21 BUTTON (VOLUME) (YELLOW)
(EJ611:AEP,G,AUS,E13/EJ615:AEP,FR,G)
EXPLODED VIEWS
z
CHANGED PARTS LIST
CABINET SECTION (Service Manual See page 24)
2000.05
Ver 1.2 2000.09 Ver 1.4 2000.10
