Sony D-EJ1000 - Exploded Views for Assembly; Upper Lid and Cabinet Exploded Views

SECTION 6
EXPLODED VIEWS
24
D-EJ1000
• Abbreviation
AUS : Australian model
CH : Chinese model
CND : Canadian model
E13 : 220 – 230 V AC area in E model
E33 : 100 – 240 V AC area in E model
EE : East European model
FR : French model
HK : Hong Kong model
JEW : Tourist model
KR : Korean model
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
b
a
cabinet (lower) section
a
1
2
3
b
4
5
5
6
7
8
12
8
9
10
11
11

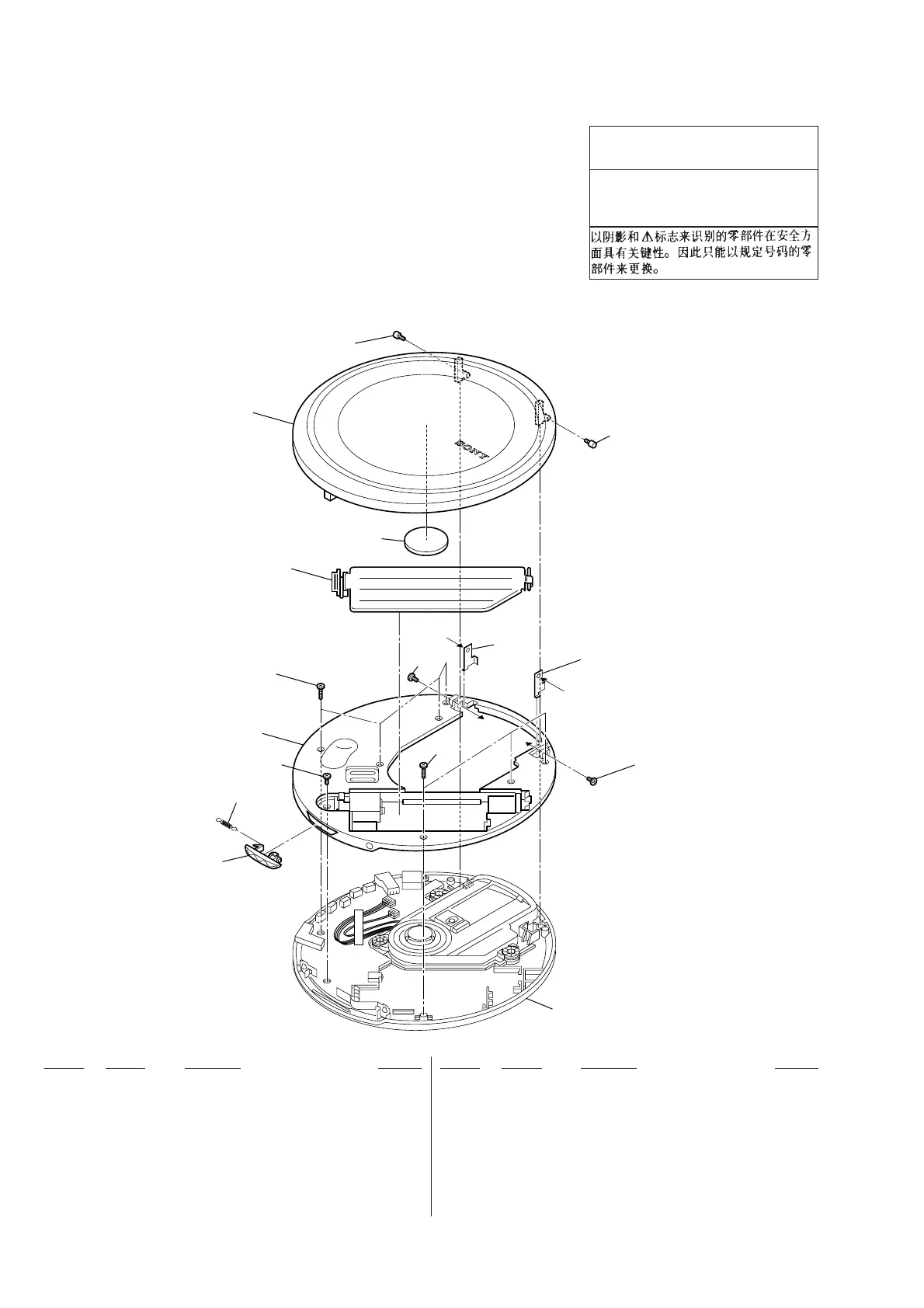

6-1. UPPER LID, CABINET (UPPER) SECTION
1 3-233-997-01 KNOB (OPEN)
2 3-233-998-01 SPRING, TENSION
3 4-908-792-01 SCREW (B2)
4 A-3052-748-A CABINET (UPPER) BLOCK ASSY
5 4-908-792-61 SCREW (B2)
6 X-3380-951-1 LID ASSY, BATTERY CASE (JEW)
6 X-3380-952-1 LID ASSY, BATTERY CASE
(AEP,AUS,CH,CND,E33,EE,FR,UK,US)
6 X-3380-953-1 LID ASSY, BATTERY CASE (E13,HK,KR)
7 A-3052-747-A LID BLOCK ASSY, UPPER
8 3-234-002-01 SCREW (UPPER LID)
9 3-234-004-01 GUIDE (R)
10 3-234-003-01 GUIDE (L)
11 3-232-536-07 SCREW (M1.4) (EG)
12 3-237-509-01 SPACER (S)
