28
D-NE20/NE20LS

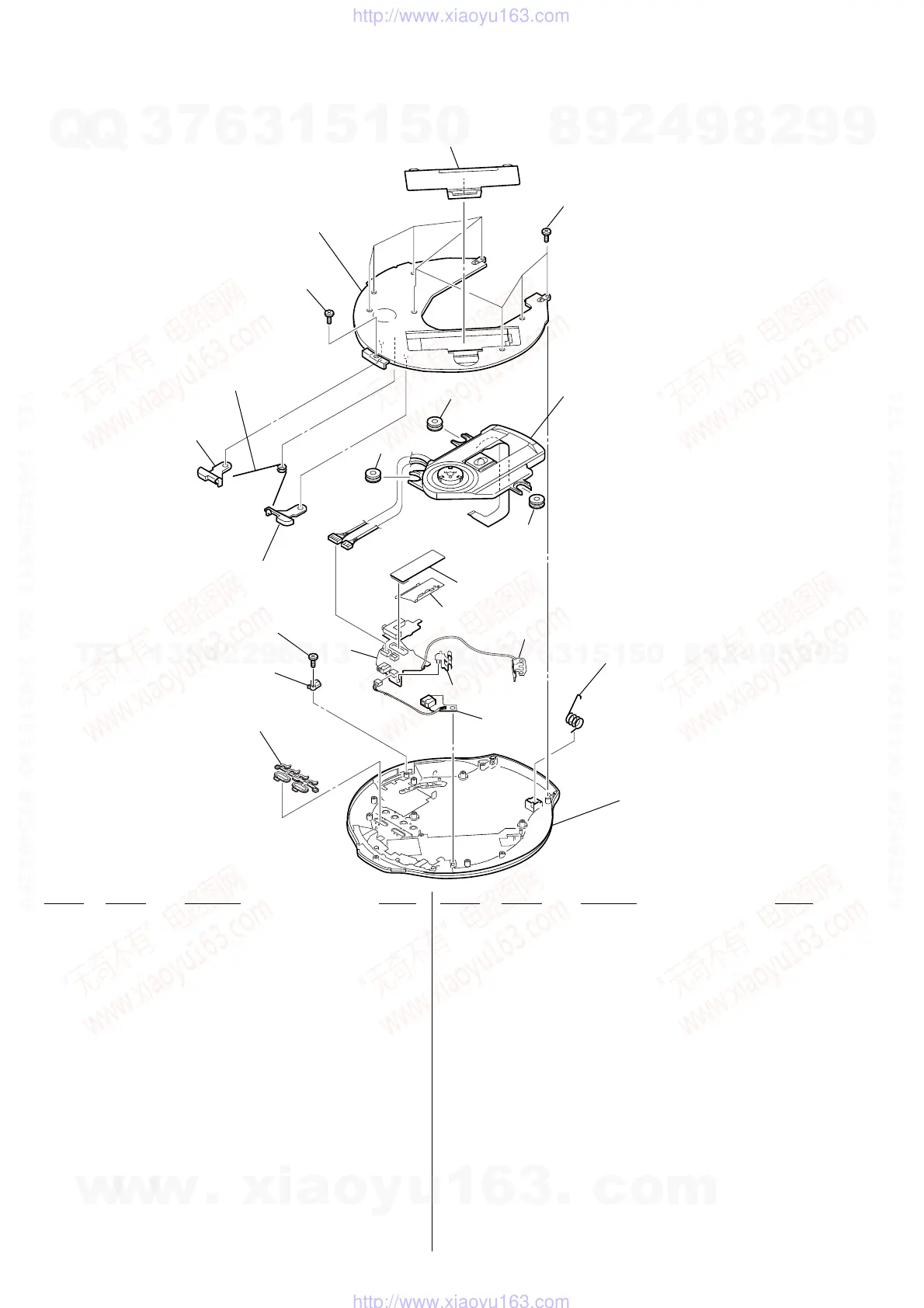

6-2. CABINET (LOWER) SECTION
55
60
59
61
62
64
65
52
52
53
66
51
54
56
57
57
57
not
supplied
not supplied
CD mechanism sectio
(CDM-3325ERV)
58
63
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 2-541-612-11 LID, BATTERY (EXCEPT CH)
51 2-541-612-21 LID, BATTERY (CH)
52 3-245-709-01 SCREW
53 X-2024-309-1 CABI MID SUB ASSY
54 2-187-578-01 KNOB, OPEN (L)
55 2-187-579-01 KNOB, OPEN (R)
56 3-258-894-01 SPRING (LOCK CLAW)
57 3-245-331-02 INSULATOR
58 A-1076-645-A EGH BOARD, COMPLETE (JE, HK, KR, CH)
58 A-1083-356-A EGH BOARD, COMPLETE (AEP, UK, EE)
58 A-1097-743-A EGH BOARD, COMPLETE
(US, CND, EA, AUS, E18)
59 2-187-571-01 WINDOW (LED)
60 2-187-569-01 BUTTON (CONTROL)
61 2-187-581-01 SPRING (UPPER LID)
62 X-2024-040-1 CABINET, LOWER SUB ASSY (SILVER)
(US, CND, EA, AUS, JE)
62 X-2024-325-1 CABINET, LOWER SUB ASSY (BLUE)
(US, CND, EA, AUS, JE)
62 X-2024-326-1 CABINET, LOWER SUB ASSY (RED)
(US, EA, AUS, JE)
62 X-2024-514-1 CABINET (LOWER) SUB ASSY (SILVER) (E18)
62 X-2024-515-1 CABINET (LOWER) SUB ASSY (BLUE) (E18)
62 X-2024-516-1 CABINET (LOWER) SUB ASSY (RED) (E18)
62 X-2024-539-1 CABINET (LOWER) SUB ASSY (BLUE)
(AEP, UK, EE)
62 X-2048-767-1 CABINET, LOWER SUB ASSY (SILVER) (KR, CH)
62 X-2048-768-1 CABINET, LOWER SUB ASSY (BLUE) (KR, CH)
62 X-2048-769-1 CABINET, LOWER SUB ASSY (RED) (KR, CH)
63 A-1076-646-A JACK BOARD, COMPLETE (JE, KR)
63 A-1098-010-A JACK BOARD, COMPLETE (US, CND)
63 A-1098-011-A JACK BOARD, COMPLETE (E18, EA, AUS, CH)
63 A-1113-456-A JACK BOARD, COMPLETE (AEP, EE, UK)
64 2-187-574-01 TERMINAL (+), BATTERY
65 2-187-575-01 TERMINAL (–), BATTERY
66 3-254-022-01 SCREW
