D-NE240/NE241/NE241CK
5

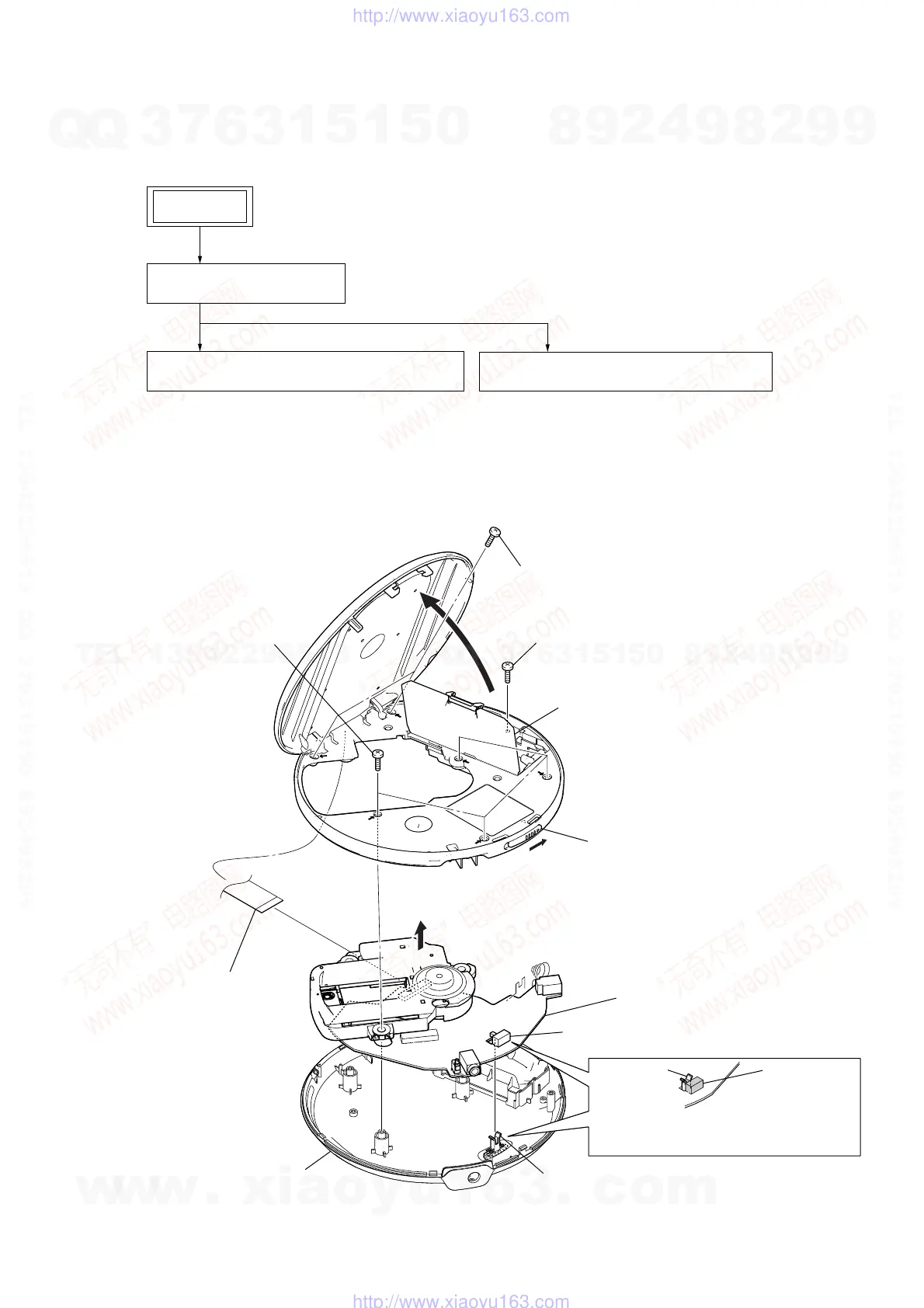

Note: Follow the disassembly procedure in the numerical order given.
3-2. CABINET (LOWER) ASSY
• This set can be disassembled in the order shown below.
3-1. DISASSEMBLY FLOW
SECTION 3
DISASSEMBLY
3-2. CABINET (LOWER) ASSY
(Page 5)
3-4. CABINET (INNER) ASSY, SWITCH BOARD
(Page 6)
3-3. MAIN BOARD, CD MECHANISM (CDM-3525A)
(Page 6)
SET
2
two screws
3
four screws
5
screw
1
Open the upper lid.
4
Open the battery case lid.
Note: On installation of MAIN board,
adjust the position of slide switch (S812)
and knob (hold).
9
cabinet (lower) assy
8
MAIN board block
6
Lift up the CD mechanism.
knob (hold)
knob (hold)
S812
S812
7
flexible flat cable
(CN801)
