D-NE240/NE241/NE241CK
88
D-NE240/NE241/NE241CK
• Note for Printed Wiring Boards and Schematic Diagrams
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and
1
/
4
W or less unless otherwise
specified.
• f : internal component.
• C : panel designation.
Note: The components identified by mark 0 or dotted line
with mark 0 are critical for safety.
Replace only with part number specified.
• A : B+ Line.
• Power voltage is dc 3 V and fed with regulated dc power
supply from battery terminal.
• Voltages and waveforms are dc with respect to ground in
no-signal conditions.
no mark : CD PLAY
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
J : CD PLAY
Note on Printed Wiring Board:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
• f : internal component.
• : Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
Caution:
Pattern face side: Parts on the pattern face side seen from
(Conductor Side) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(Component Side) the parts face are indicated.

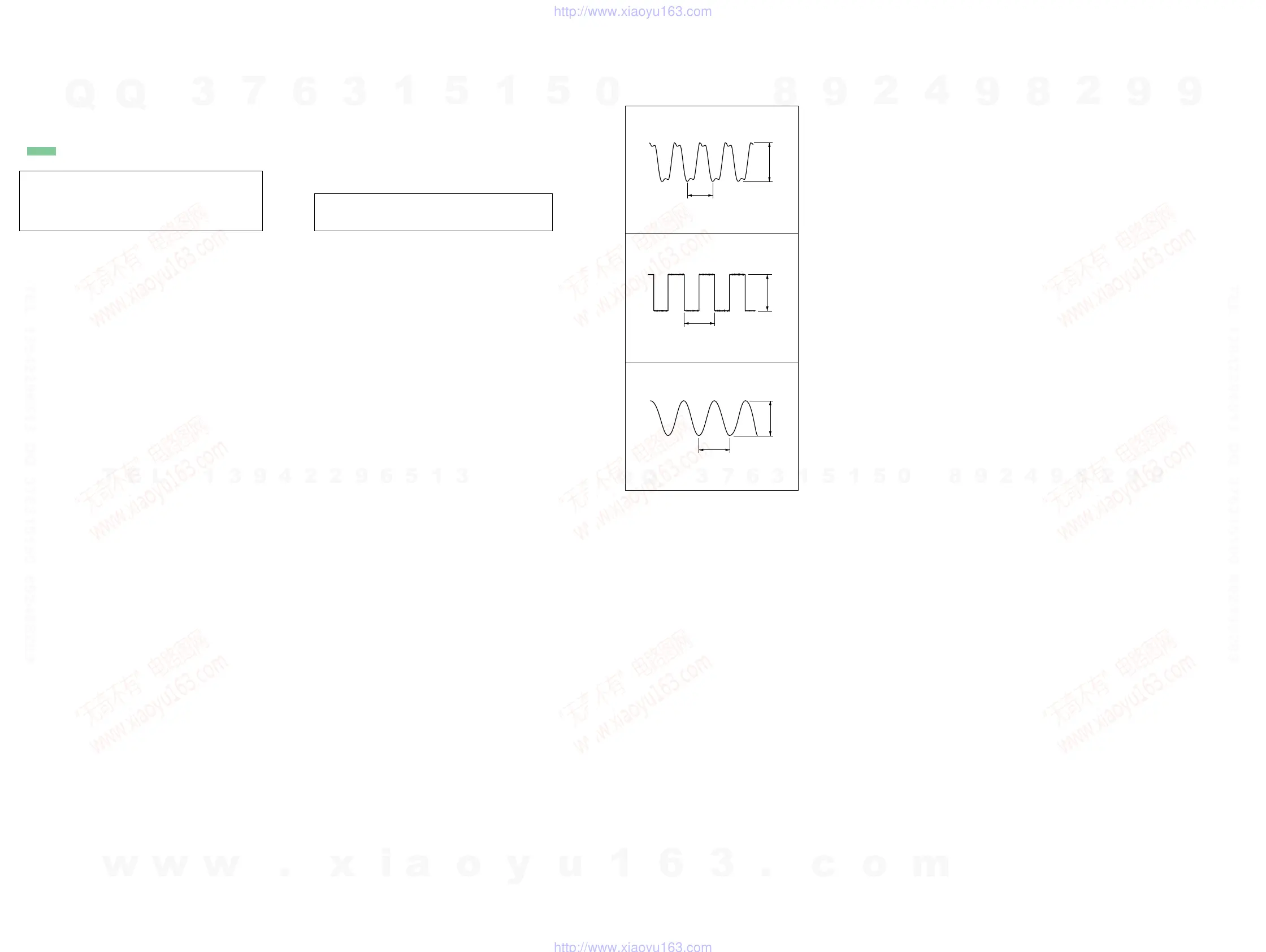

• Waveforms
– MAIN Board –
3
IC601 ya (XO)
500 mV/DIV, 20 ns/DIV
59.4 ns
1.6Vp-p
11.3 µs
3.1 Vp-p
2
IC601 th (CLK88)
1 V/DIV, 5
µ
s/DIV
237 ns
2.2 Vp-p
1
IC601 tg (CLK)
1 V/DIV, 100 ns/DIV
SECTION 6
DIAGRAMS
