SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

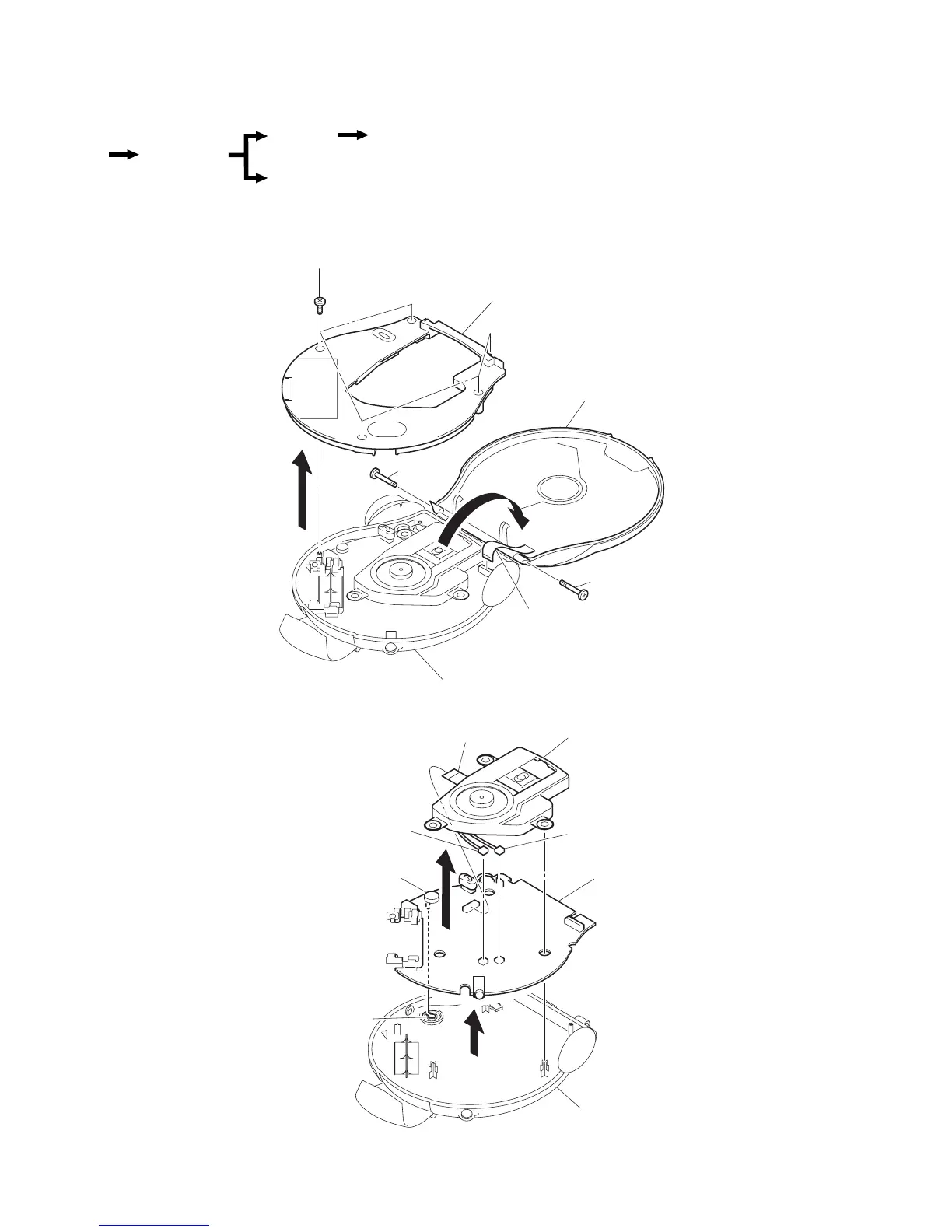

3-1. “LID, UPPER”, CABINET (FRONT)
z
The equipment can be removed using the following procedure.
“Lid, Upper”,
Cabinet (front)
MD ASSY “Moter ASSY, turn table (spindle) (M901)”
“Moter ASSY (Sled) (M902)”, Optical pick-up (DAX-25E),
Main board
Set
3-2. MD ASSY, MAIN BOARD
3 Five screws (B2)
1 Screws
5 Flexible cable (24P)
1 Screws
Cabinet (front)
Lid, upper
4
2
Cabinet (lower) sub ASSY
1
4
5
MD ASSY
Main board
RV301
LEVER (VOL) (B)
Cabinet (lower) sub ASSY
2 CN503 (black)
3 CN502 (white)
• Note ON DURING ASSEMBLY
Align RV301 and Lever (VOL) (B).
