Terminals for connecting the speakers
Note on placing speakers
Use caution when placing the subwoofer or a speaker stand (not supplied) that is attached with the
front/surround speakers on a specially treated (waxed, oiled, polished, etc.) floor, as staining or
discoloration may result.
Connect the To the
Front speakers SPEAKER FRONT L (white) and R (red) jacks
Surround speakers SPEAKER SURR L (blue) and R (grey) jacks
Centre speaker SPEAKER CENTER (green) jack
Subwoofer SPEAKER WOOFER (purple) jack

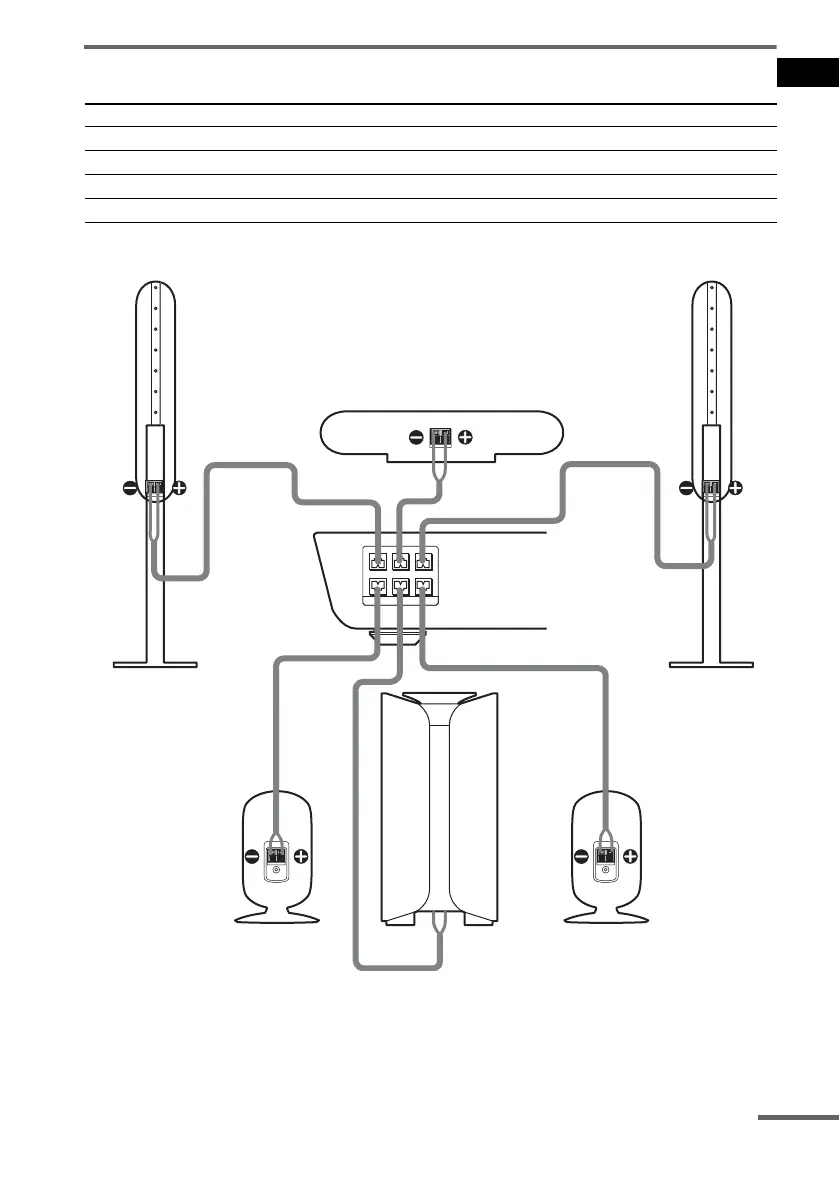

SPEAKER
CENTER FRONT LFRONT R
WOOFER SURR LSURR R
Front speaker (R)
Centre speaker
Front speaker (L)
Surround speaker (R)
Subwoofer
Surround speaker (L)
