2-9E
DCR-DVD201/DV201E
2. DISASSEMBLY
2. DISASSEMBLY

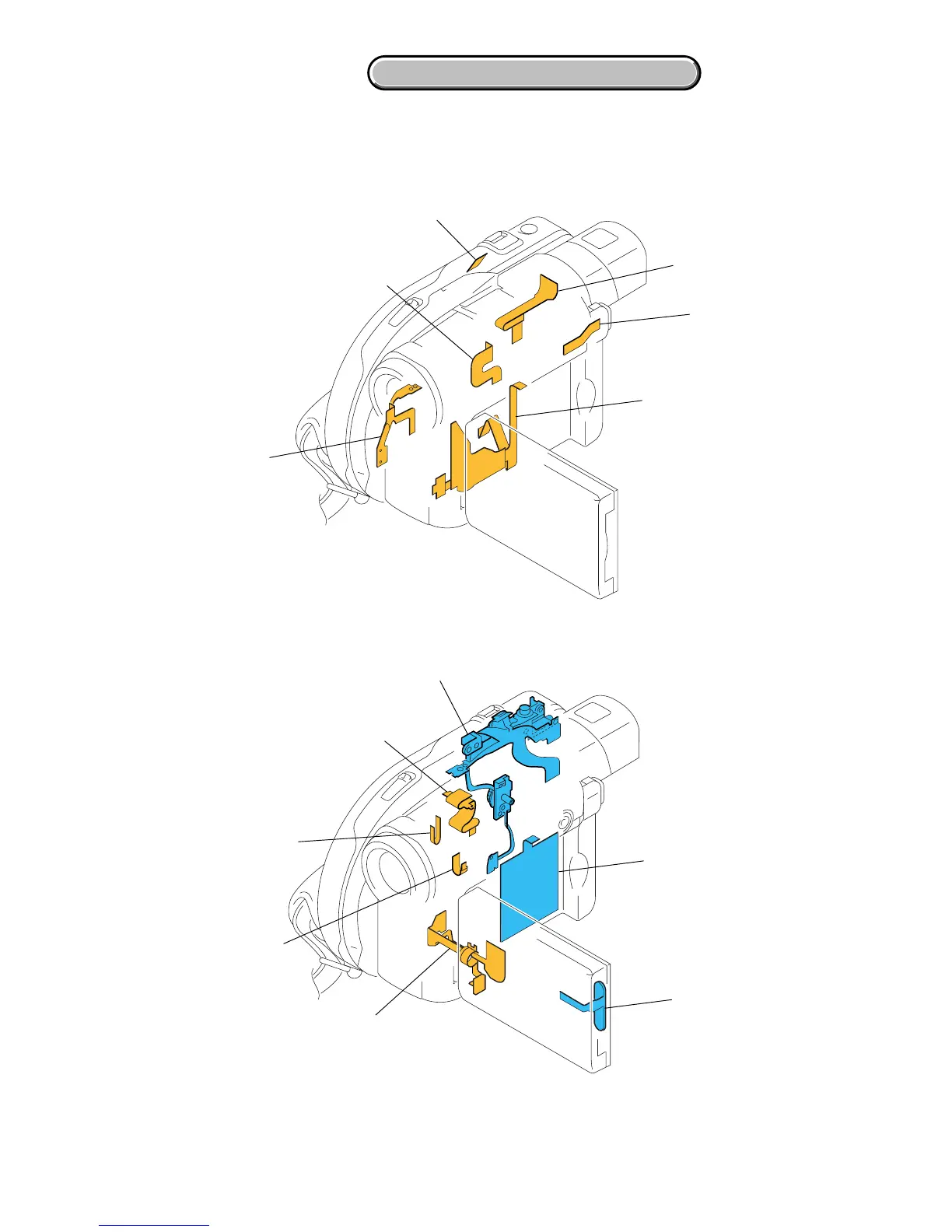

2-4. FLEXIBLE BOARDS LOCATION
The flexible boards contained in the lens block is not shown.
FP-887
FP-884
CONTROL SWTICH BLOCK (PS8700)
CONTROL SWTICH
BLOCK (SH8700)
CONTROL SWTICH
BLOCK (BL8700)
FP-889
FP-892
FP-228
FP-891
FP-888
FP-890
FP-883
FP-629
