5-4
5. REPAIR PARTS LIST
DCR-HC44E/HC46/HC46E_L2
Ref. No. Part No. Description Ref. No. Part No. Description
101 2-664-728-21 CABINET (C), P (HC46/HC46E)
101 2-664-728-71 CABINET (C), P (HC44E)
102 3-941-343-01 TAPE (A)
103 A-1153-883-A PD-283 BOARD, COMPLETE
* 104 1-867-778-11 FP-380 FLEXIBLE BOARD (Note)
105 2-664-737-01 COVER (C), HINGE
106 X-2067-431-1 HINGE ASSY
107 2-664-738-01 COVER (M), HINGE
* 108 2-664-734-01 CUSHION (173), TP
109 A-1153-842-A FP-386 FLEXIBLE BOARD, COMPLETE
110 X-2108-000-1 CABINET (M (173)) ASSY, P

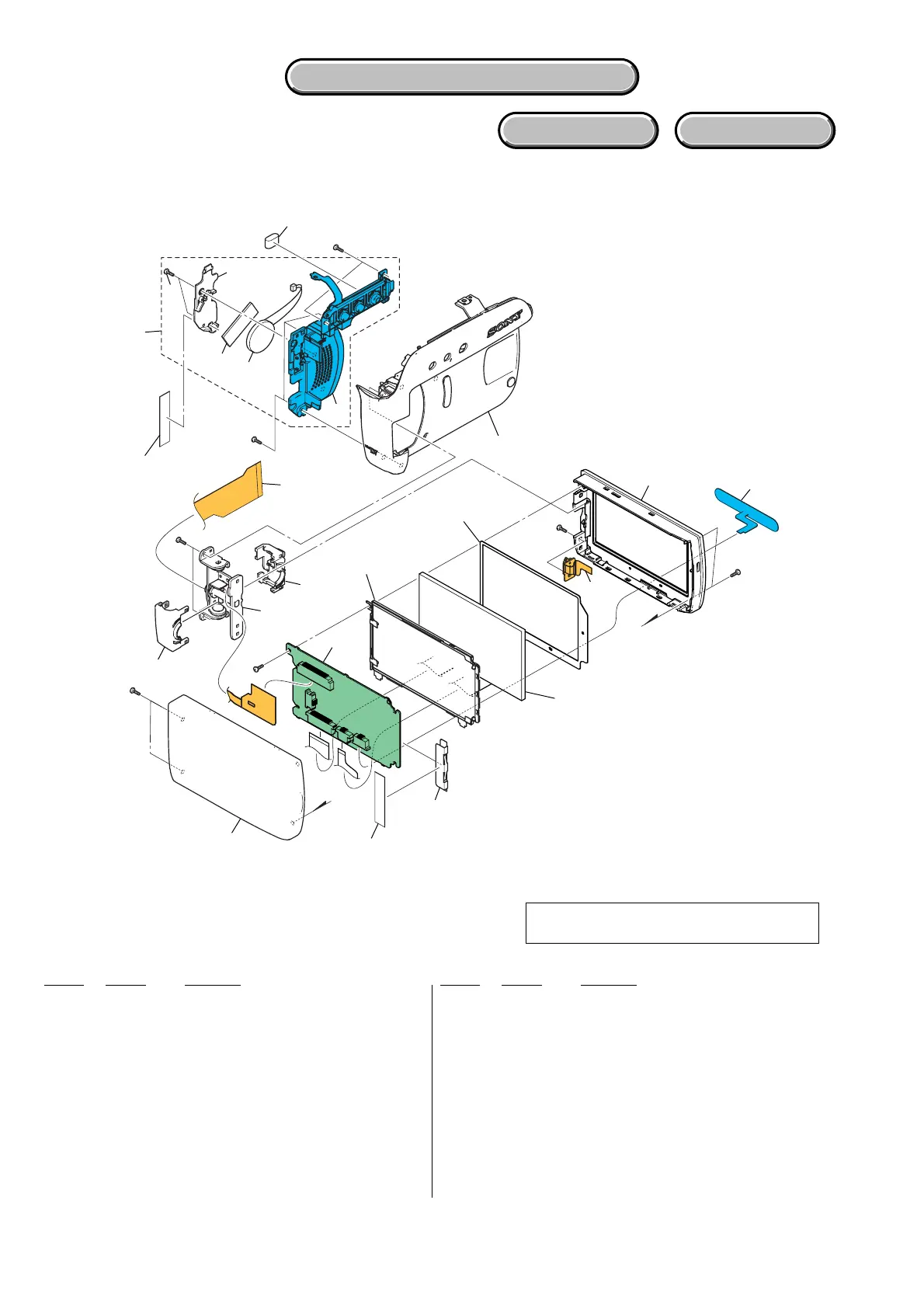

5-1-3. CABINET (R) BLOCK
111 1-478-984-11 KEY BLOCK, CONTROL (SB10600)
112 X-2103-697-1 CABINET (R (172)) ASSY
113 A-1153-904-A LIGHT GUIDE BLOCK (2.7)
114 1-479-506-21 KEY BLOCK, CONTROL (CF17000)
* 115 2-667-911-01 CUSHION (173), ELECTROSTATIC
LCD901 A-1083-763-A TP BLOCK ASSY 27STGU
* SP901 1-825-260-31 K016NA503-12
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#10 2-599-475-31 SCREW (M1.7) (Silver)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#13 3-085-397-01 SCREW (Silver)
Note: Be sure read “HELP” when you install the FP-
380 flexible board.
DISASSEMBLY
HARDWARE LIST
PD-283
#12
#12
#13
#10
ns
102
104
(Note)
101
105
107
112
114
115
106
#12
LCD901
#12
#3
102
103
108
110
109
111
ns
113
ns
ns
ns
SP901
ns: not supplied
