5-3
5. REPAIR PARTS LIST
DCR-HC94E/HC96/HC96E_L2

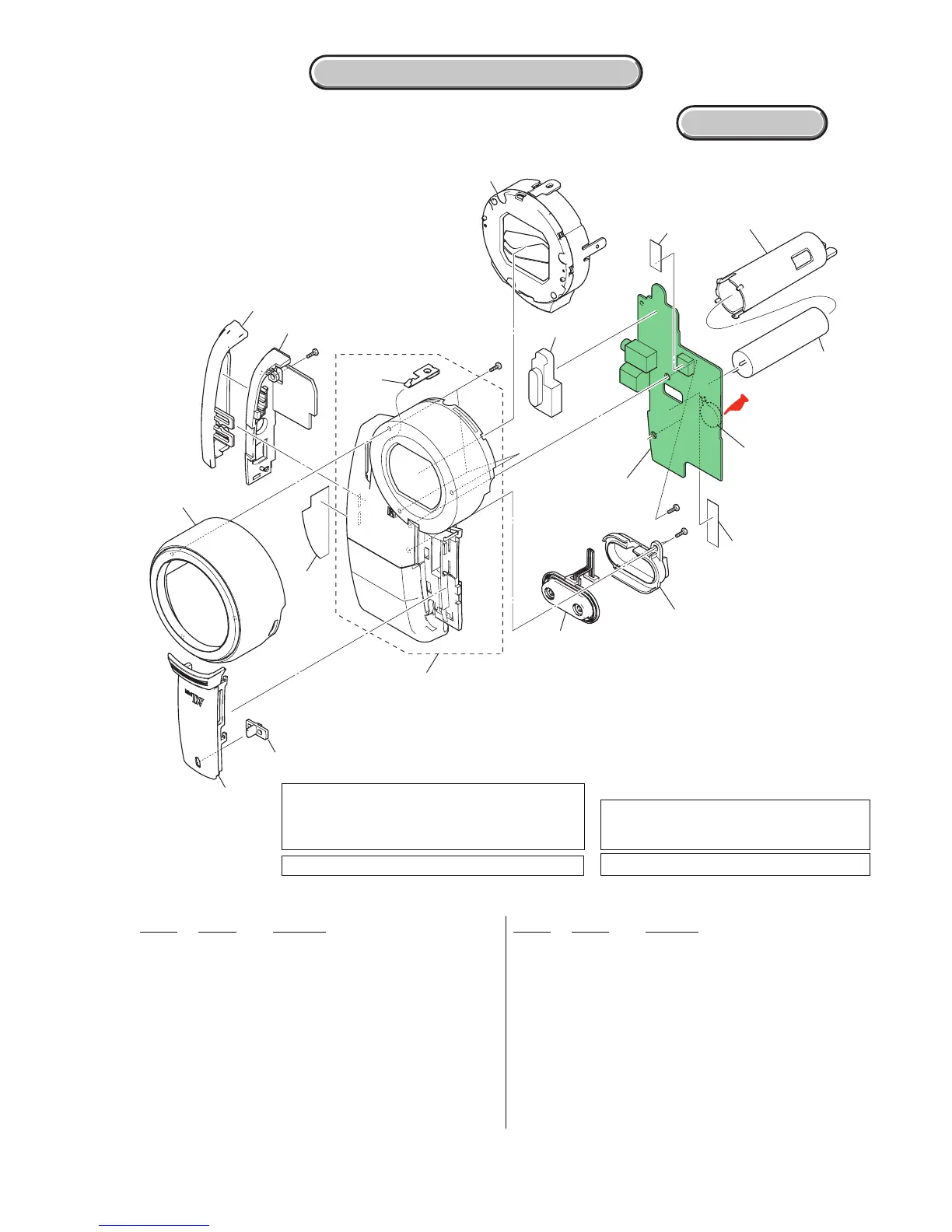

5-1-2. FRONT PANEL BLOCK
Ref. No. Part No. Description Ref. No. Part No. Description
51 X-2108-413-1 PANEL (175) ASSY, F
52 2-667-571-01 SCREW (175), FILTER
53 2-664-986-01 COVER, JACK
* 54 2-664-946-01 RETAINER, MICROPHONE
55 A-1153-994-A SI-054 BOARD, COMPLETE
* 56 2-672-995-01 SHEET (F)
57 3-941-343-01 TAPE (A)
58 2-667-575-01 CABINET, JACK (HC96/HC96E)
58 2-667-575-11 CABINET, JACK (HC94E)
59 2-667-573-01 HOLDER, CAPACITOR
60 2-667-572-01 PLATE (175), F ORNAMENTAL
ns: not supplied
0 61 1-479-569-11 FLASH UNIT
63 1-787-397-11 MOTOR UNIT (LENS BARRIER)
64 2-667-570-01 TALLY (175), REC
* 65 2-667-564-01 PLATE (175), LENS GROUND
* 66 2-675-602-01 SHEET, F INSULATING
0*BT401 1-756-640-11 BATTERY, LITHIUM SECONDARY
0 C415 1-112-766-11 CAP, ELECT 70uF 330V (Note)
MIC901 1-542-513-21 MICROPHONE
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
• Refer to page 5-1 for mark 0.
HARDWARE LIST
SI-054
#3
#12
#12
#12
57
59
58
56
54
55
61
52
64
60
65
63
51
!
: BT401 (BATTERY, LITHIUM SECONDARY)
Board on the mount position.
(See page 4-40.)
MIC901
BT401
C41
To Next Page
