5. REPAIR PARTS LIST
DCR-HC94E/HC96/HC96E_L2

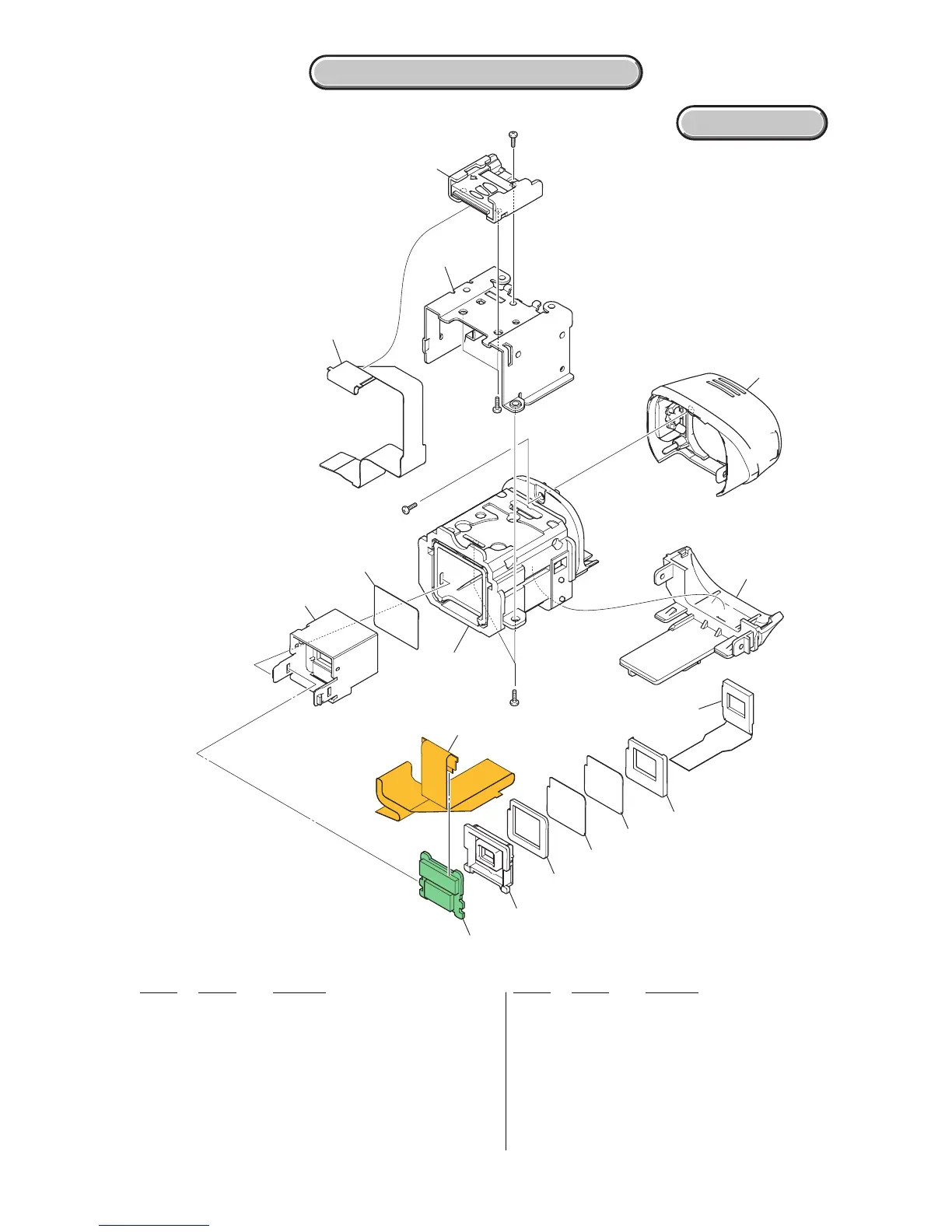

5-1-6. EVF BLOCK
Ref. No. Part No. Description Ref. No. Part No. Description
251 A-1153-981-A LB-124 BOARD, COMPLETE
252 2-664-672-01 GUIDE, LAMP
* 253 2-638-819-01 CUSHION, LCD
* 254 2-638-818-01 ILLUMINATOR
* 255 2-638-816-01 PLATE (TFT), DEFLECTION
256 2-664-671-01 SPACER, LCD
258 1-867-980-11 FP-388 FLEXIBLE BOARD
* 259 2-667-588-01 CABINET (175), INNER
* 260 2-638-813-01 PLATE (CF), DEFLECTION
* 261 2-667-590-01 FRAME (175), FIXED
262 X-2108-415-1 VF (175) ASSY
263 X-2108-414-1 EYE CUP (175) ASSY
264 1-818-890-11 CONNECTOR, EXTERNAL (HOT SHOE)
265 1-867-783-11 FP-385 FLEXIBLE BOARD
266 2-667-589-01 PLATE (175), VF ORNAMENTAL
LCD902 8-753-245-09 LCX059CKK-1
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#14 2-599-475-11 SCREW (M1.7) (Silver)
HARDWARE LIST
#12
#14
#14
#14
LCD902
251
253
258
259
254
255
256
252
260
262
263
266
261
264
265
