2. REPAIR PARTS LIST
Follow the disassembly in the numerical order given.
IDENTIFYING PARTS
AC- DIS-
Link
ACCESSORIES ASSEMBLY
(ENGLISH)
NOTE:
• -XX, -X mean standardized parts, so they may have some
differences from the original one.
• Items marked “*” are not stocked since they are seldom required
for routine service. Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference number in the exploded
views are not supplied.
• Due to standardization, replacements in the parts list may be
different from the parts specified in the diagrams or the com-
ponents used on the set.
• Color Indication of Appearance Parts
Example:
(SILVER) : Cabinet’s Color
(Silver) : Parts Color
The components identified by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifié.
• Abbreviation
AR : Argentine model
AUS : Australian model
BR : Brazilian model
CH : Chinese model
CND : Canadian model
HK : Hong Kong model
KR : Korea model
NE : North European model
Right View
Left View
Front View
Bottom View
Top View
Back View
View Position
VC-587
DA-049
1 HDD Lid
2 HDD
3 HDD Holder
4 Bottom Cabinet
6 F Panel Assy
q; VC-587 Board
qa DA-049 Board
Main Frame Assy
7 Cabinet R Section
[Disassembly]

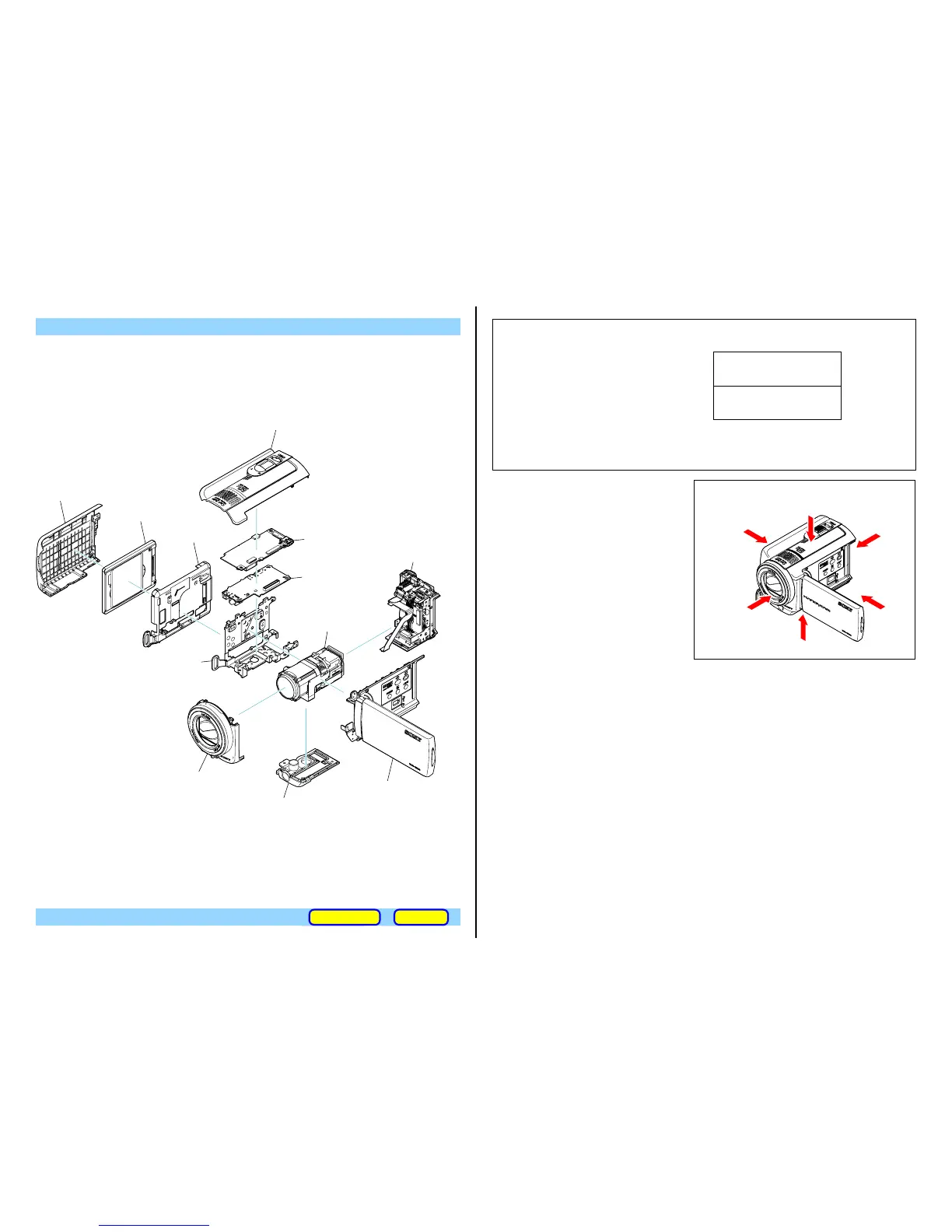

[Exploded View]
• PD-404 Board
• OC-024 Board
• FP-1239 Flexible Board
5
Top Cabinet Section
8
BT Panel Section
• MS-432 Board
• FP-1216 Flexible Board
9
Lens/Chassis Section
• CD-786 Board
• FP-1168 Flexible Board
