5-5
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-H2_L2
BT001
SP9001
A
A
111
110
108
109
104
102
106
107
112
105
101
113
101
101
BT9001
LCD9002
ns
ns
103
SY-150
MS-307
: BT001 (Lithium battery) SY-150 board
on the mount position. (See page 4-52)

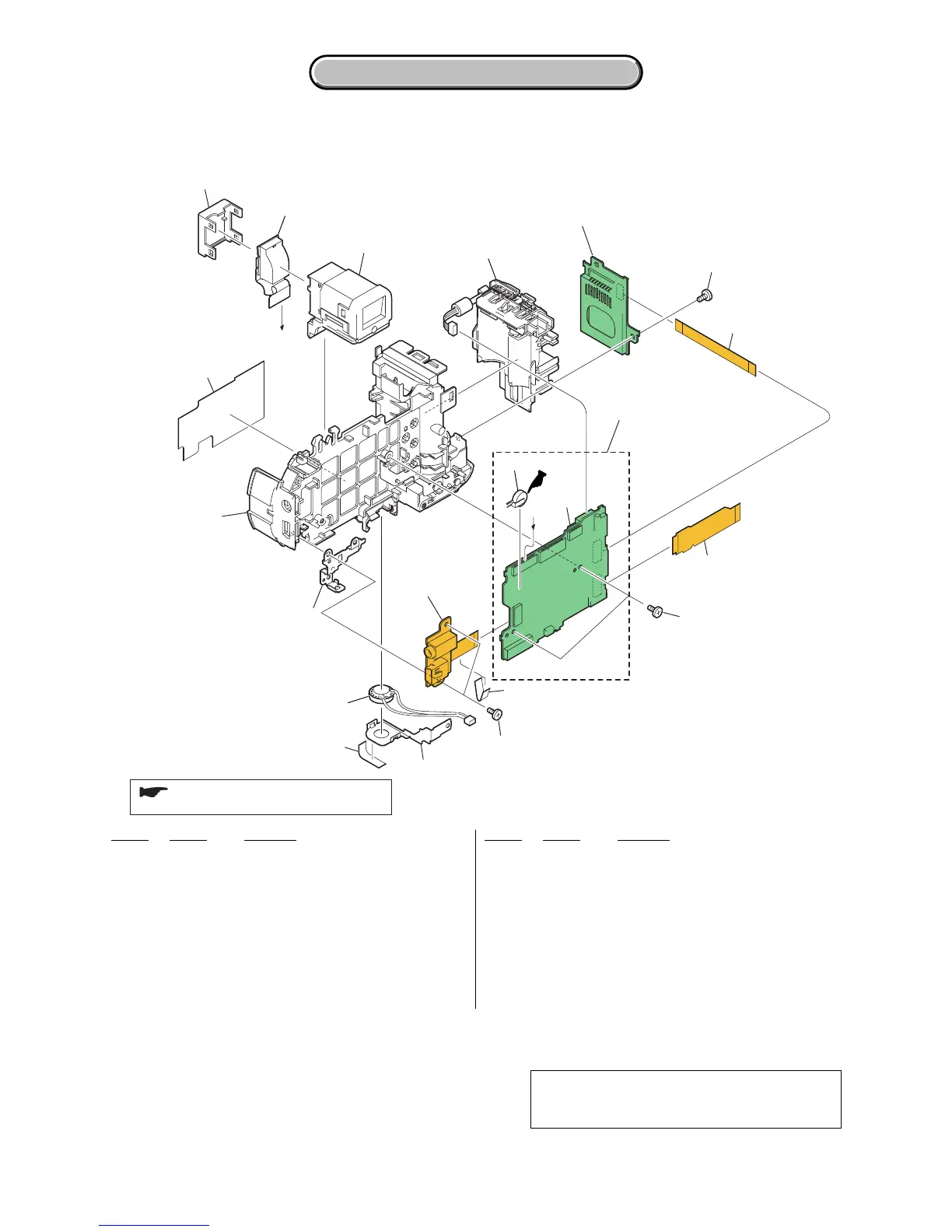

5-1-3. MAIN SECTION
ns : not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
101 3-080-204-11 SCREW, TAPPING, P2
102 A-1176-915-A JK-306 FLEXIBLE BOARD
* 103 2-672-564-01 SHEET (JK), RADIATION
104 A-1176-916-A SY-150 BOARD, COMPLETE (SERVICE) (GP2)
104 A-1176-917-A SY-150 BOARD, COMPLETE (SERVICE) (GP3)
104 A-1176-918-A SY-150 BOARD, COMPLETE (SERVICE) (GP4)
105 1-869-227-11 SW-478 FLEXIBLE BOARD
* 106 2-673-306-01 PLATE, JK GROUND
107 X-2108-910-1 HOLDER ASSY, BATTERY
* 108 2-673-337-01 RETAINER, MODULE
109 X-2108-913-1 ASSY, VF
110 A-1176-912-A MS-307 BOARD, COMPLETE
111 1-831-557-11 FLEXIBLE FLAT CABLE (MS-030)
* 112 2-677-004-01 SHEET (INR), RADIATION
* 113 2-684-446-01 SPACER, SP
0 BT001 1-756-539-21 BATTERY, LITHIUM SECONDARY
* BT9001 1-780-338-11 TERMINAL BOARD, BATTERY
LCD9002 1-802-033-11 LCD MODULE
SP9001 1-826-403-21 LOUDSPEAKER (1.0CM)
• Refer to page 5-1 for mark 0.
CAUTION :
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
