2-14
DSC-N1_L2
2. DISASSEMBLY
2. DISASSEMBLY

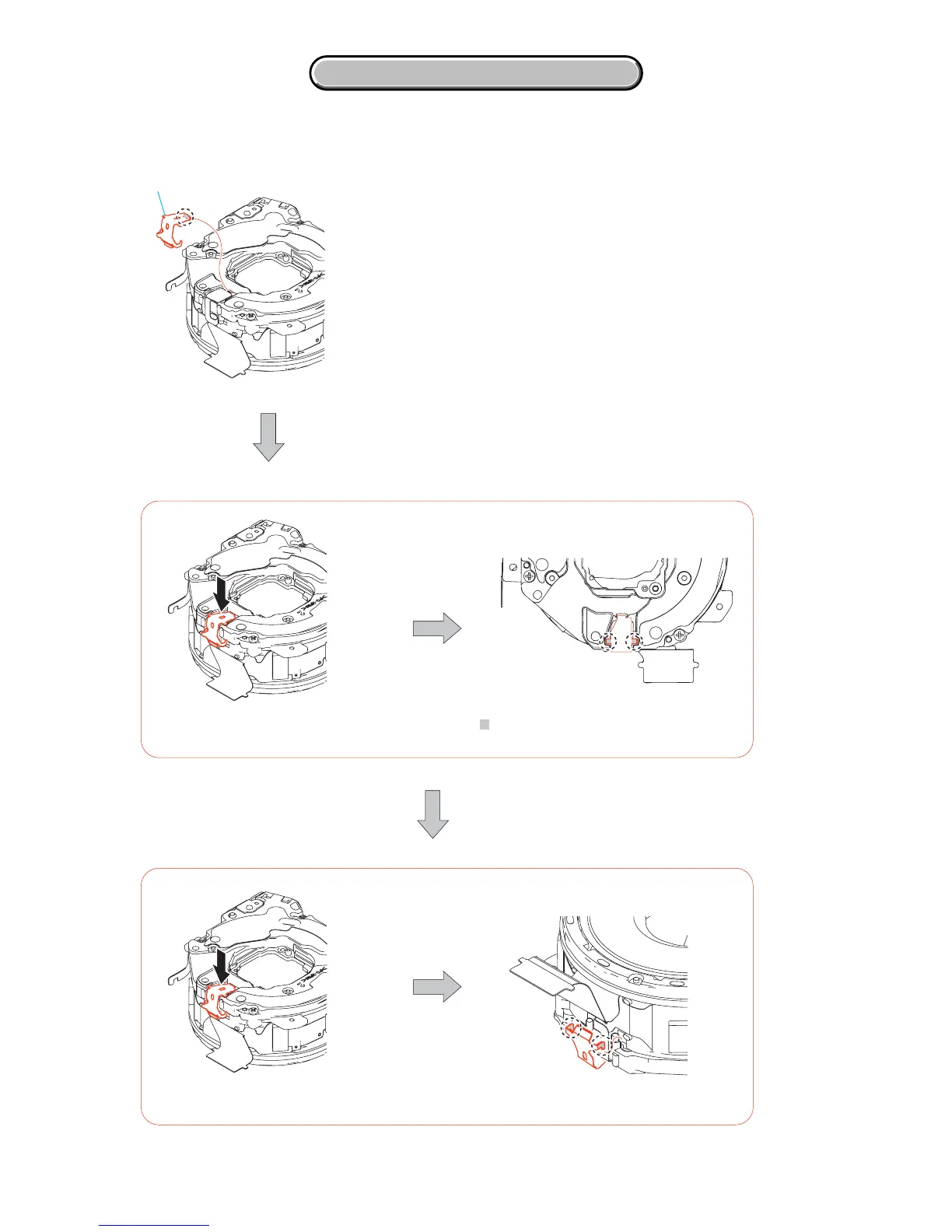

2-4-3. INSTALL NEW Z PLATE SPRING
Z plate spring
1 Hook a claw of the Z plate spring on the zoom gear block.
2 Pressing the spring in the arrow direction, engage the part of the Z plate spring in position shown
above.
3 Pressing the spring in the arrow direction, engage two claws of the Z plate spring.
