Sony DSC-RX10 - Page 25

DSC-RX10_L2
2-11

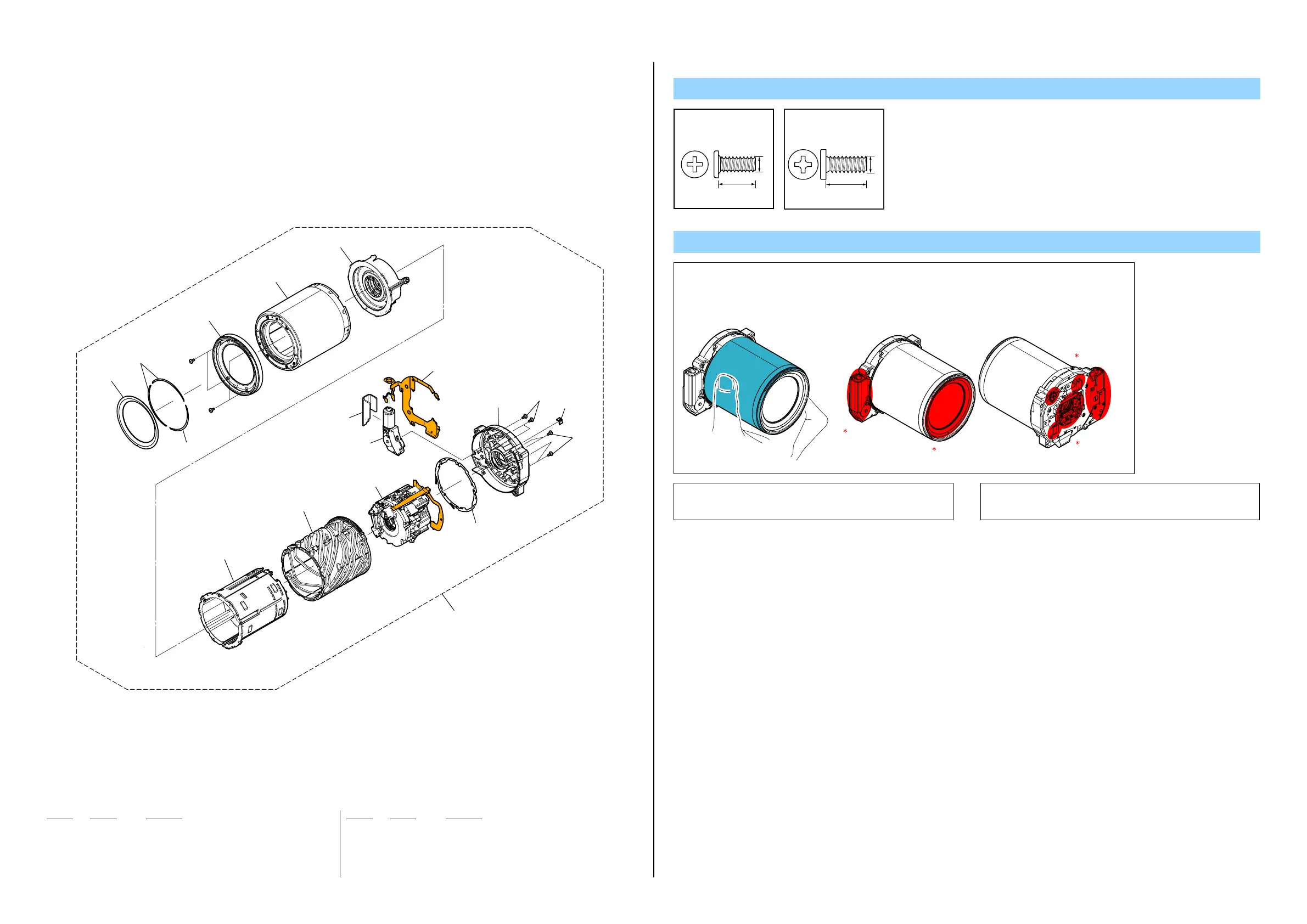

2-1-8. LENS BLOCK SECTION
ns : not supplied
Ref. No. Part No. Description
Ref. No. Part No. Description
351 A-1973-143-A SERVICE, LSV-1690A (Note 1, 2)
352 4-470-385-01 PLATE, ORNAMENTAL
353 4-470-409-01 TAPE, 1 GROUP ORNAMENTAL PLATE
354 4-470-386-01 FRAME, FILTER
355 A-1971-170-A LUBRICATING BLOCK ASSY, TUBE
 357 1-492-548-11 GEAR ASSY, ZOOM(Z1690)
#174 3-713-791-35 SCREW (M1.7X5), TAPPING, P2
#306 4-300-106-01 BTITE (1.4 (CH))
Note
Note 2: When this part is removed, adjustment is required.
For the adjustment method, refer to “Adjustment items after
replacing parts” in the Note tab of the Adjust manual.
Note 2: この部品を取り外したときは調整が必要です。
調整方法についてはAdjust manual の NoteタブにあるAdjust-
ment items after replacing parts を参照してください。
Screw
5.0
1.7
#174: M1.7 X 5.0 (Tapping)
(Black)
3-713-791-35
#306: M1.4 X 4.0 (Tapping)
(Black)
4-300-106-01
1.4
4.0
352
351
353
353
355
357
354
ns
ns
ns
ns
ns
ns
ns
ns
#306
#306
#174
#174
ns
(Note 1, 2)
Note 1 :
Hold the Lens Block at the
center of both sides.
Do not hold the following part.
Hold here.
NOTES ON HOLDING THE LENS BLOCK
Very weak
Very weak
Very weak
Very weak
