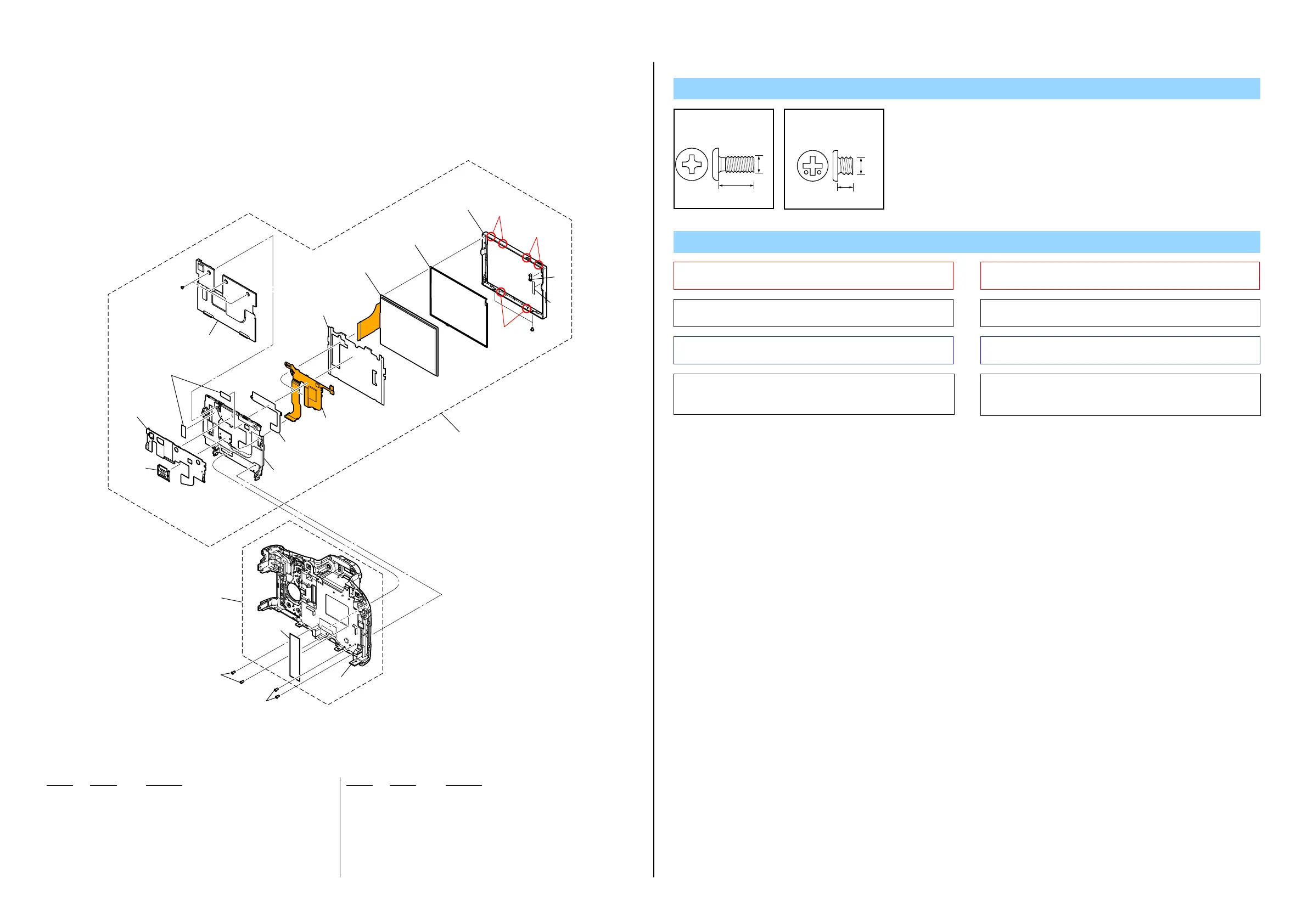

2-1-7. REAR CABINET SECTION
ns : not supplied
Ref. No. Part No. Description
Ref. No. Part No. Description
301 A-1992-169-A CABINET REAR BLOCK (SERVICE)
302 A-1992-168-A LCD BLOCK ASSY (SERVICE)
303 CAUTION SHEET (ANT) (710), ADHESIVE
304 4-469-152-01 SHEET (LCD RELAY FLEXIBLE) (710)
305 4-468-229-01 SHEET (LCD) (710), ADHESIVE (Note 2)
306 4-469-153-02 SHEET(LCD)(710),INTERCEPTION
307 A-1973-079-A LC-1015 BOARD, COMPLETE
308 4-489-040-01 SHEET2 (LCD) (720), INTERCEPTION
309 4-488-347-01 SHEET, FR FLEXIBLE
 LCD901 1-811-695-11 PANEL MODULE (PE5-BJD) (Note 3)
#196 4-178-124-01 SPECIAL (M1.4 (D2.75)) (Note 1)
#239 4-287-435-11 SCREW (M1.4 EUROPE) TYPE (Note 1)
Note
Note 1: This screw cannot be reused. Discard the screw removed
once in servicing. Instead, use a new screw.
Note 1: このねじは再利用することができません。サービス対応時に 一
度でも外した場合は新品のねじと交換してください。
Screw
#196: M1.4 X 2.0
(Black)
4-178-124-01:
2.0
1.4
#239: M1.4 X 1.4
(Red)
4-287-435-11
1.4
1.4
(Claws)
(Claws)
(Claws)
301
#239
(Note 1)
#239
(Note 1)
#196
(Note 1)
#239
(Note 1)
ns
ns
ns
ns
LCD901
(Note 3)
ns
ns
ns
302
306
308
303
(Size:12.0 x 5.0 mm)
304
307
309
305
(Note 2)
Note 2: Do not reuse these Sheets because their adhesive force
decreases when they are removed once.
Note 2: これらのシートは一度剥がすと粘着力が弱くなるため、再利 用
はしないでください。
Note 3: Refer to “Assembly-3: Notes on assembling the LCD panel”
when assembling.
Note 3: 組立時は““Assembly-3: Notes on assembling the LCD panel”を
参照してください。
CAUTION
For the part of 303 : SHEET (ANT) (710), ADHESIVE, cut SHEET,
ADHESIVE (2-649-300-01) into the desired length and use it.
注意
303 : SHEET (ANT) (710), ADHESIVE は，TAPE, SHEET, ADHESIVE
(2-649-300-01) を切って使用すること。
