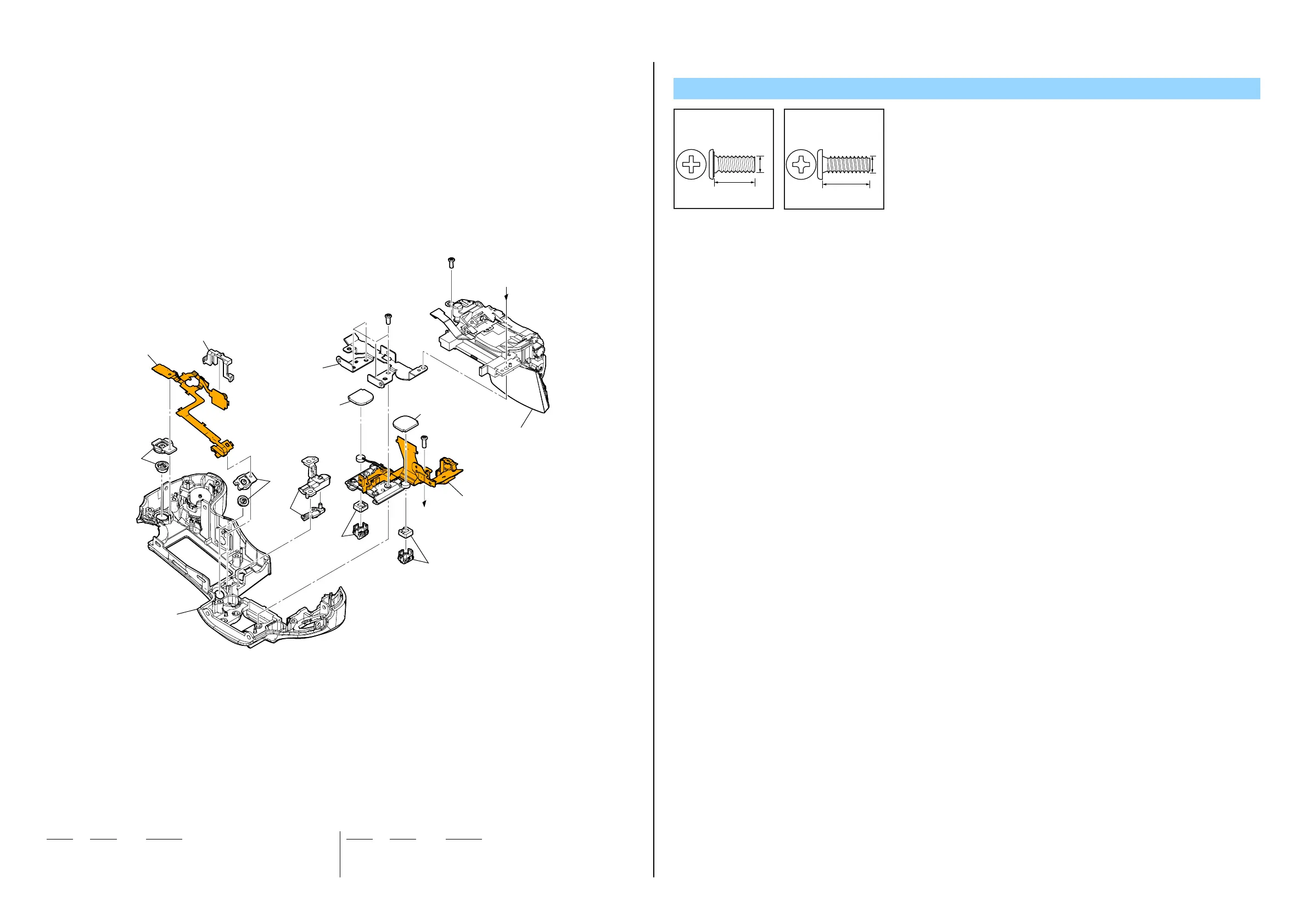

2-1-6. ST BLOCK SECTION
ns : not supplied
Ref. No. Part No. Description
Ref. No. Part No. Description
251 A-1973-080-A AF-2001 FLEXIBLE BOARD, COMPLETE
252 A-1992-173-A MI-2000 FLEXIBLE BOARD, COMPLETE (SERVICE)
 253 A-1992-171-A ST BLOCK ASSY (SERVICE)
#2 2-635-562-31 SCREW (M1.7)
#12 3-080-204-21 SCREW, TAPPING, P2
A
A
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
251
252
253
#2
#2
#12
Screw
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
#12: M1.7 X 5.0 (Tapping)
(Black)
3-080-204-21
1.7
5.0
