Sony DSC-T50 - Page 10

2-3
DSC-T50_L2
EXPLODED VIEW
HARDWARE LIST

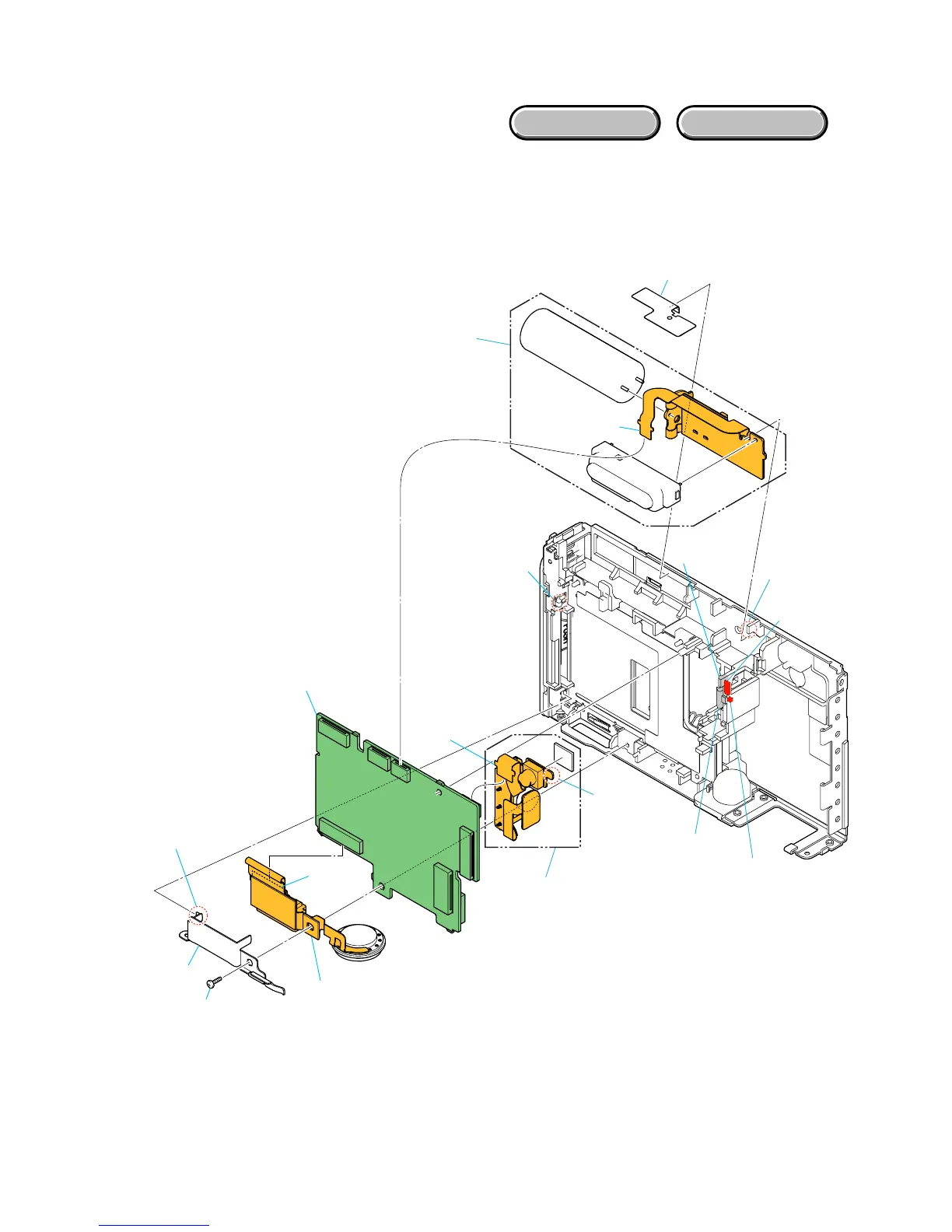

2-1-2. BATTERY HOLDER BLOCK
Follow the disassembly in the numerical order given.
1 MC-160 Flexible Board (1-1 to 1-4)
2 SY-164 Board (2-1 to 2-4)
3 BT-030 Flexible Board (3-1 to 3-7)
2 SY-164 Board
1 MC-160 Flexible Board
2-2 (Claw)
2-4
2-1
2-3 (Light Guide)
1-2 (Claw)
1-3
1-1 (#18)
1-4
3 BT-030 Flexible Board
3-1 (Claw)
3-4 (Claw)
3-6 (Claw)
3-7 (Claw)
3-5 (Claw)
3-2
3-3
SY-164
MC-160
ST-135
