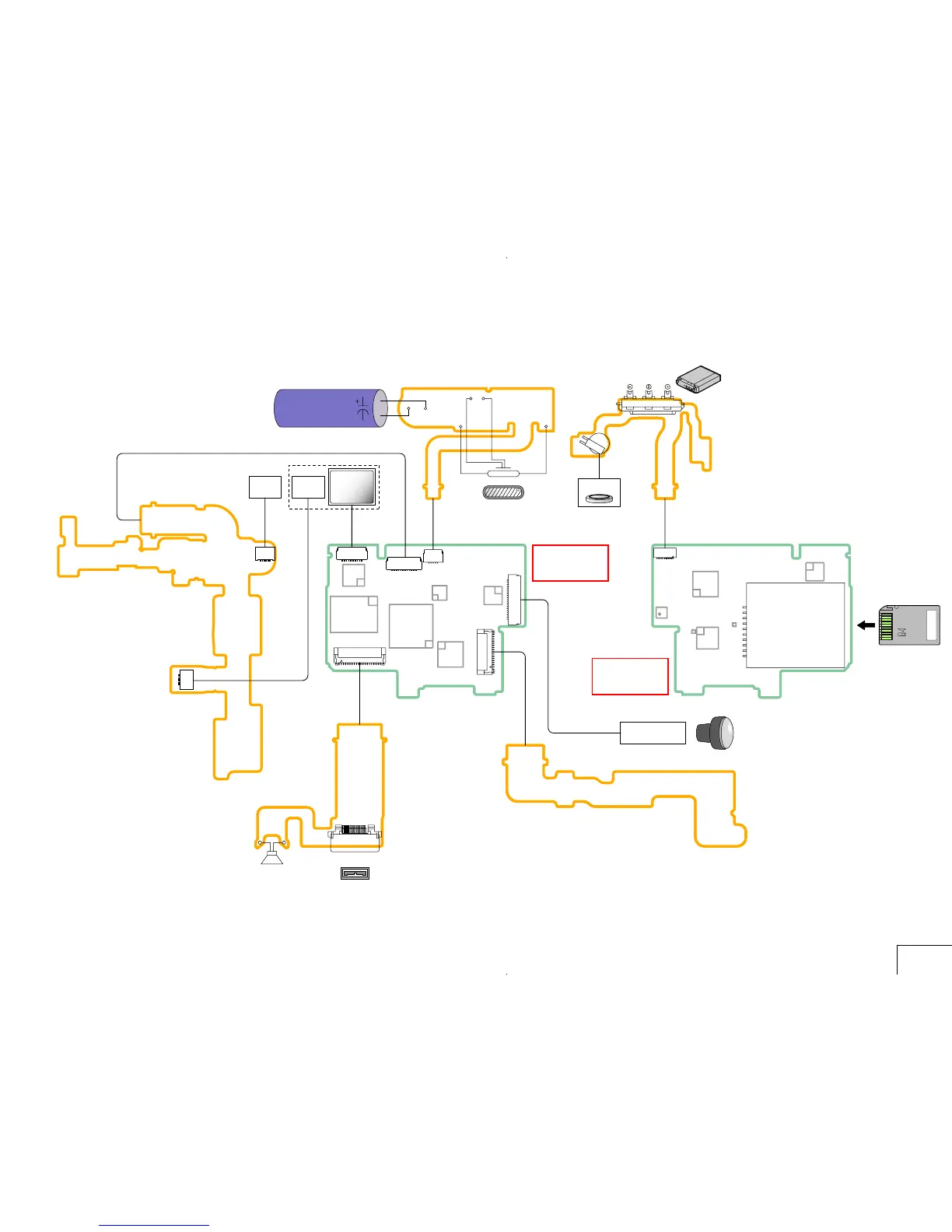

4-1. FRAME SCHEMATIC DIAGRAM
4. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
FRAME
CN001
16
CN002
16
LOCK
LENS BLOCK
3.0 INCH
COLOR
LCD UNIT
TOUCH
PANEL
LCD901
13
112
BT002
LITHIUM BATTERY
133
2
1
27
25
26
28
CN001
MULTI CONNECTOR
SP901
139
111
FLASH UNIT
C901
CHARGING CAPACITOR
238
139
232
133
139
238
210
11 1
1
220
21
CN201
CN101
CN701
CN703
CN705
CN901
IC301
(Not supplied)
112
12 11
10 1
CN001
CN704
MEMORY STICK
CONNECTOR
1
25
D901
BACKLIGHT
BH001
BATTERY
TERMINAL
BT-030 FLEXIBLE BOARD
CD-614 FLEXIBLE BOARD
MC-160 FLEXIBLE BOARD
ST-135 FLEXIBLE BOARD
RL-072 FLEXIBLE BOARD
LEVEL3
SY-164 BOARD
(SIDE A)
LEVEL3
SY-164 BOARD
(SIDE B)
1
2
24
25
