Sony DSC-T70 - Printed Wiring Boards and Schematics; Frame Schematic Diagram

DSC-T70/T75_L2
4-1

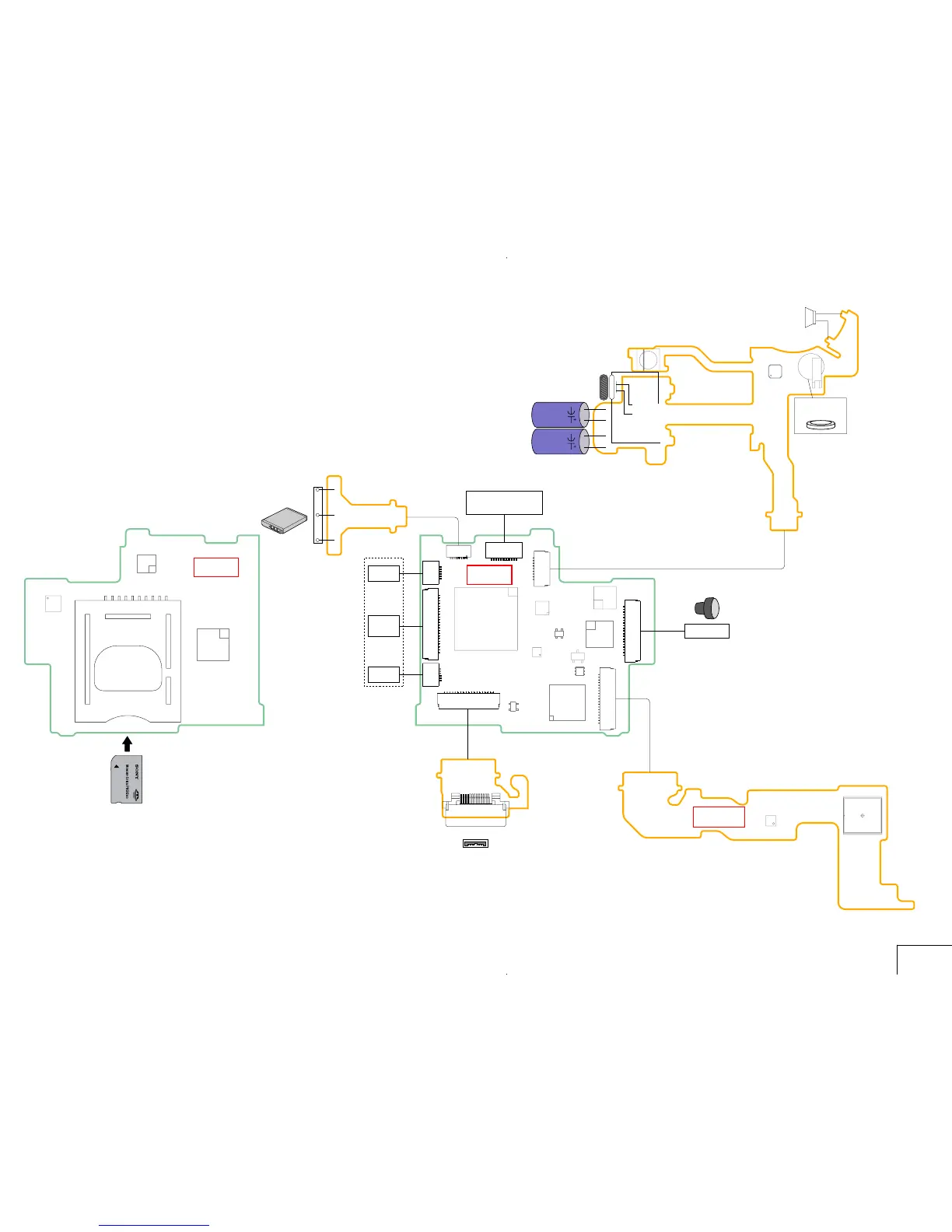

4-1. FRAME SCHEMATIC DIAGRAM
4. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
FRAME
BH001
(BATTERY TERMINAL)
IC001
(Not supplied)
LEVEL3
LEVEL3
CN001
(MULTI CONNECTOR)
-
S
+
C902
(CHARGING CAPACITOR)
C901
(CHARGING CAPACITOR)
SP901
(SPEAKER)
BT001
LITHIUM SECONDARY
BATTERY
( )
D002
AF illuminator/
self-timer lamp
( )
FLASH UNIT
LENS BLOCK
LEVEL3
238
139
238
139
1
218
19
238
139
139
110
12 11
16 16
2
1
44
45
112
CN401
IC211
(Not supplied)
CN301
CN701
CN703
CN704
CN707 CN708CN709
CN710
110
12
11
CN702
MEMORY STICK
CONNECTRO
( )
226
2728
1
25
SY-183 BOARD
(SIDE B)
SY-183 BOARD
(SIDE A)
MC-185
FLEXIBLE
BOARD
CD-710 FLEXIBLE
BOARD
1
10
BT-039 FLEXIBLE
BOARD
CONTROL SWITCH BLOCK
(RL60570)
ST-172 FLEXIBLE
BOARD
119
139
3.0 inch
COLOR
LCD MONITOR
LCD901
TOUCH
PANEL
BACKLIGHT
