Sony DSX-A510BD - Unit Connection Diagram; Key Connection Points Overview

34GB

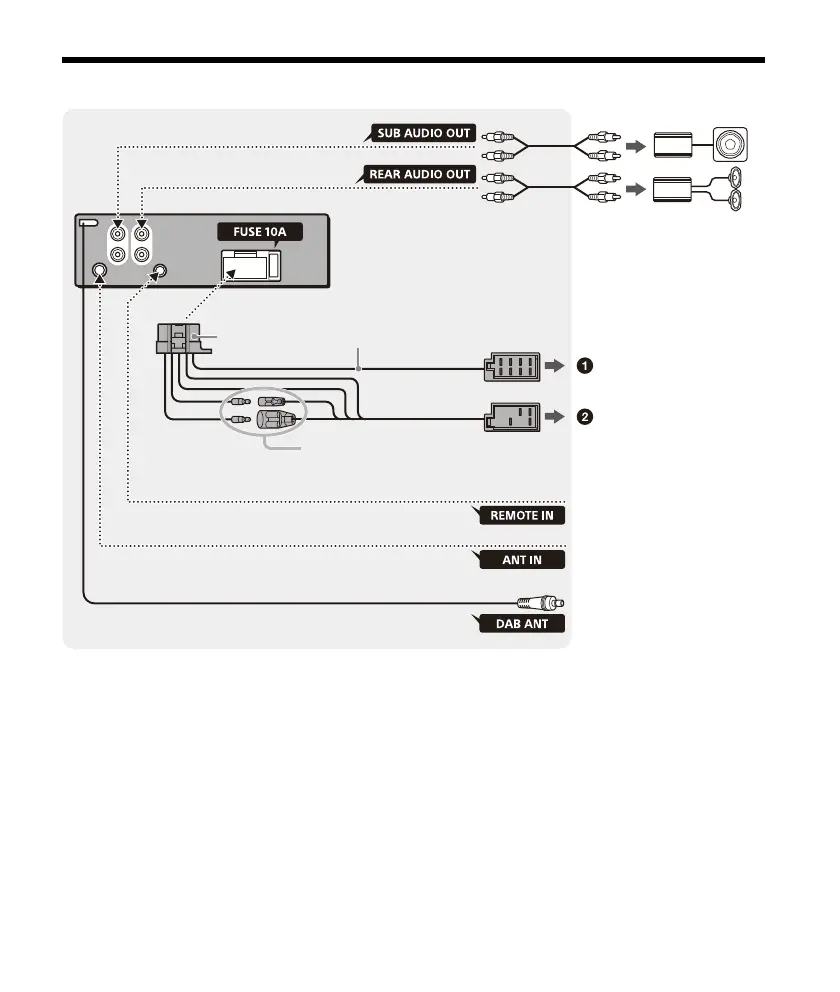

Connection
*1 Not supplied
*2 Speaker impedance: 4  – 8  × 4
*3 RCA pin cord (not supplied)
*4 Depending on the type of car, use an adaptor for a
wired remote control (not supplied). For details on
using the wired remote control, see “Using the wired
remote control” (page 36).
*5 Depending on the type of car, use an adaptor (not
supplied) if the antenna connector does not fit.
*6 Set [SET ANT-PWR] to [ON] (default) or [OFF]
depending on the type of DAB antenna (aerial)
(page 21).
Max. supply current 0.1 A
from a wired remote control
(not supplied)*
4
See “Power connection diagram” (page 36)
for details.
from a car antenna (aerial)*
5
*
3
Power amplifier*
1
For details, see “Making
connections” (page 35).

*
2
*
3
Subwoofer*
1
from DAB antenna (aerial)
(not supplied)*
6
