Sony DVP-FX820 - Connecting to Audio Equipment; Analog Audio Connection; Digital Audio Connection

35
Hookups

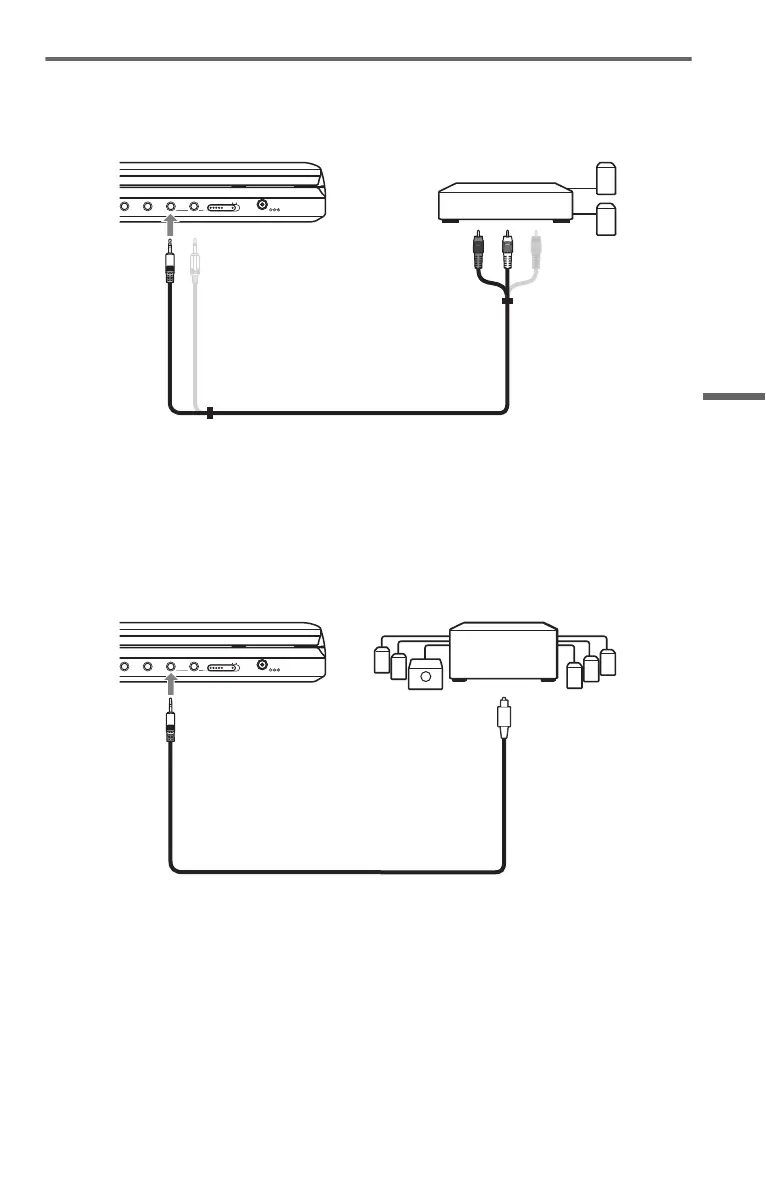

Connecting to an AV amplifier (receiver)
Example 1
To send analog audio signal to an AV amplifier (receiver)
1 Set the LINE SELECT switch on the player’s right side to “OUT.”
* The yellow plug is used for video signals (page 34).
Example 2
To send digital audio signal to an AV amplifier (receiver)
1 Set the LINE SELECT switch on the player’s right side to “OUT.”
2 Set “Digital Output” to “On” in “Audio Setup” (page 30).
DC IN
9.5V
AUDIO VIDEO PHONES
OPTICAL
OUT
AB
LINE SELECT
IN OUT
Stereo amplifier
To AUDIO
Audio/video cord (supplied)
To AUDIO input
DC IN
9.5V
AUDIO VIDEO PHONES
OPTICAL
OUT
AB
LINE SELECT
IN OUT
Amplifier with Dolby Digital
or DTS decoder
To OPTICAL OUT
Optical digital cord (not supplied)
To AUDIO input
,continued
