– 5 –
DVP-NS775V/NS780V
SERVICE NOTE
1. DISC REMOVAL PROCEDURE (at POWER OFF)
1) Open dust cover to access to a hole insert a tapering driver into the aperture of the unit bottom, and move the lever of chuck can in the
direction of the arrow A. (See Fig. 1)
2) Draw out the tray in the direction of the arrow B, and remove a disc. (See Fig. 1)
2. PWB caution for B3834
Please ignore screw mark on A side. Refer B side indication;
QS
: screw mount for NS995V
AV
: screw mount for NS775V
The lever of a zipper cam
B
A
Hold
Tray

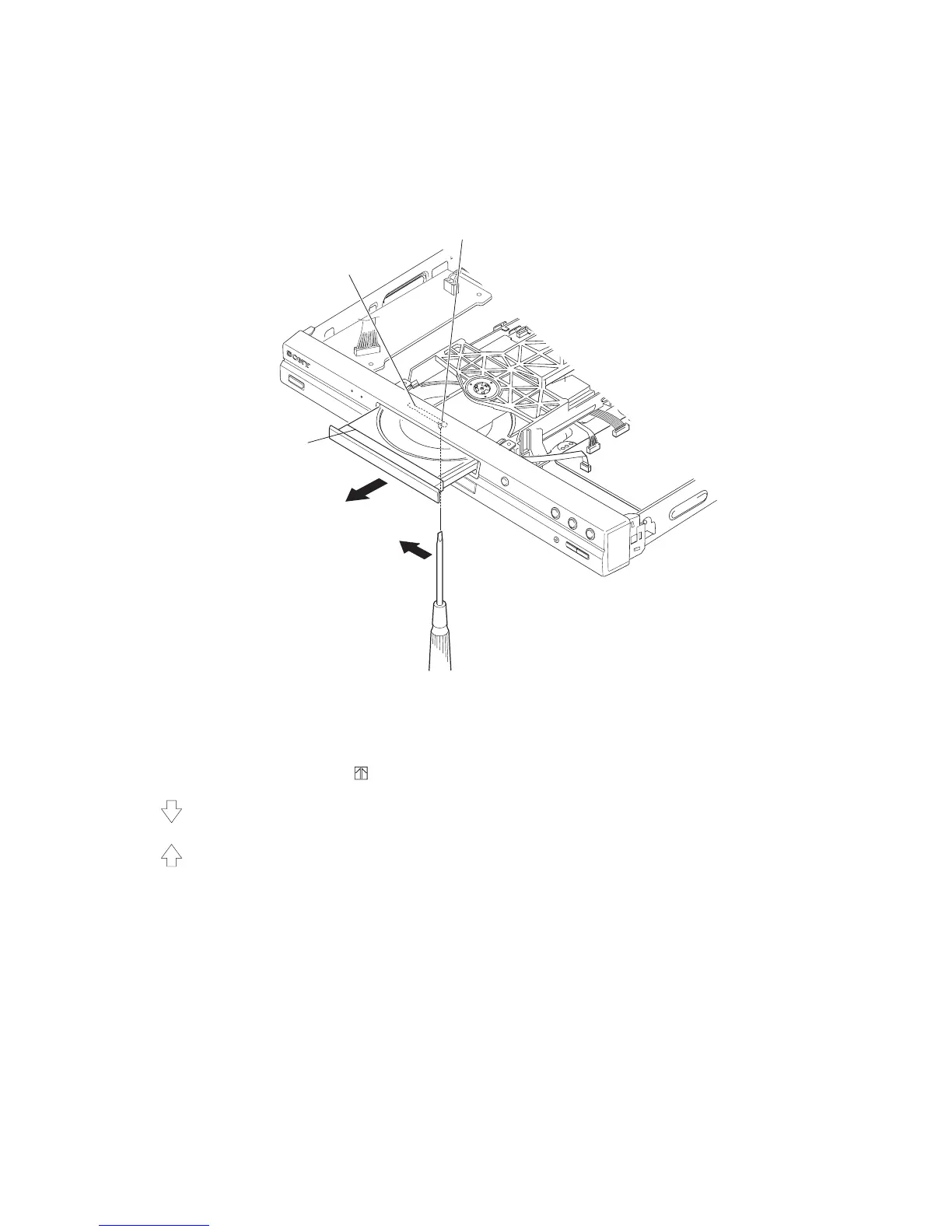

Fig. 1.
