SECTION 2

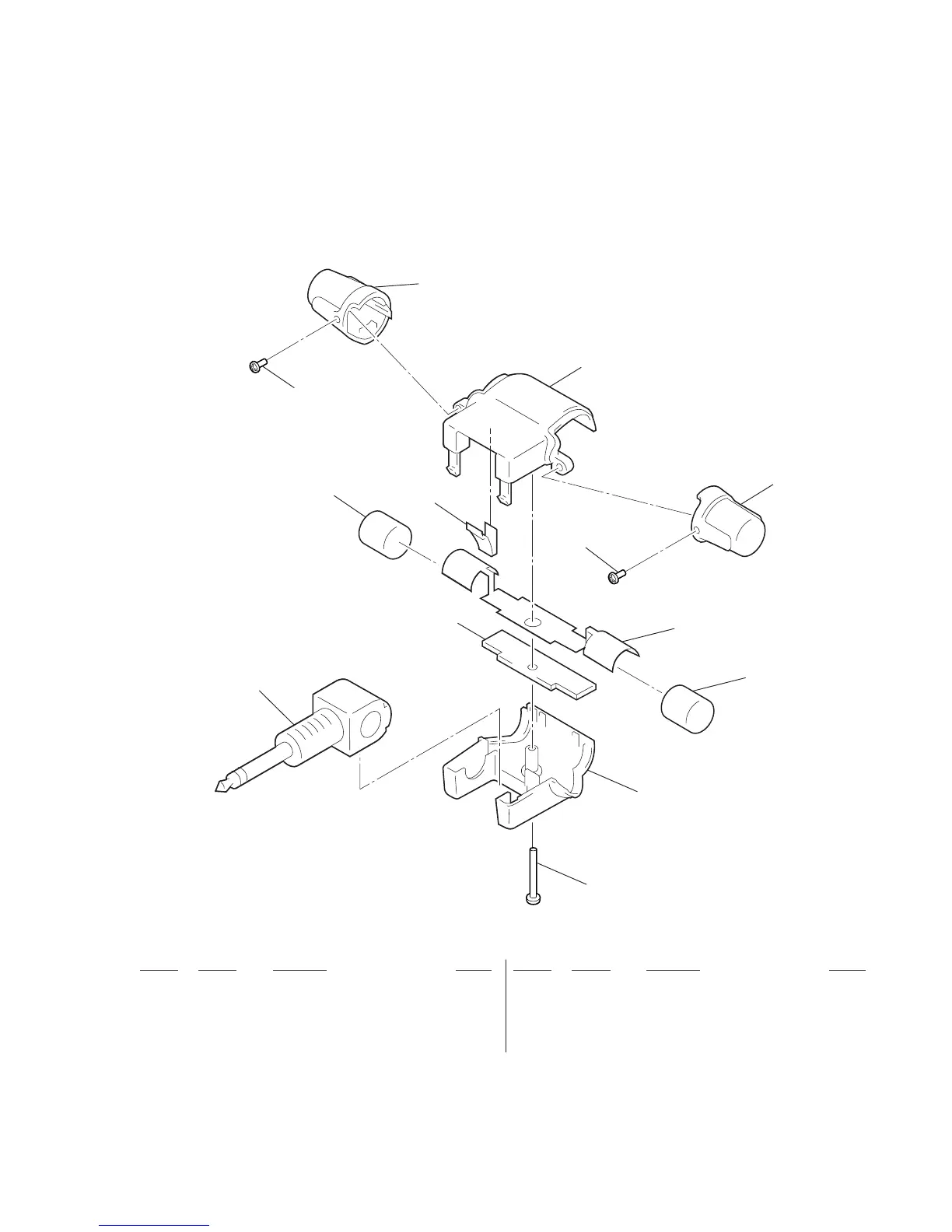

EXPLODED VIEW
NOTE :
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
P1
1
2
2
3
4
5
6
7
(including
4
)
9
8
4
not supplied
1 2-545-316-01 SPRING, CLICK
2 2-387-701-21 SCREW (1.4)
3 X-2542-154-1 GRILLE ASSY (R)
4 2-545-313-01 CASE, FRONT
5 X-2542-153-1 GRILLE ASSY (L)
* 6 1-667-840-11 AMP BOARD
7 A-4540-471-A CAPSULE ASSY
8 2-545-314-01 CASE, REAR
9 3-334-565-11 SCREW (B1.7 X 10), TAPPING
P1 1-782-912-11 CORD (WITH PLUG) (3 CORE) (MIC OUTPUT)
• The mechanical parts with no reference
number in the exploded views are not
supplied.
To Next Page
