Sony ECM-S80 - Exploded View

5
ECM-S80
SECTION 4

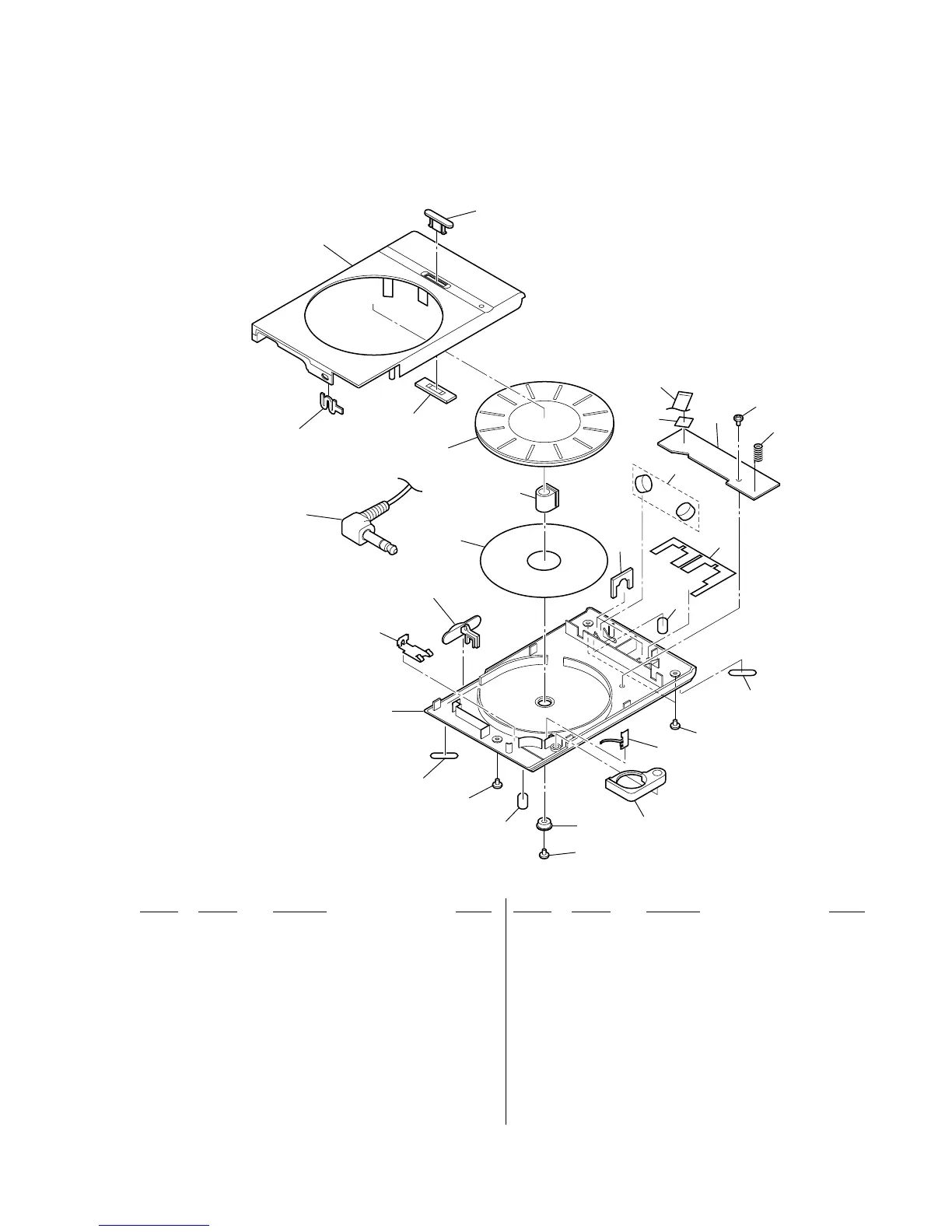

EXPLODED VIEW
NOTE :
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 3-234-433-01 FOOT, RUBBER
2 3-318-203-01 SCREW (B 1.7X6), TAPPING
3 3-234-420-01 TERMINAL, PLUS
4 3-234-425-01 CASE, BATTERY
5 3-234-430-02 SLEEVE
6 3-234-418-01 CASE, REAR
7 3-234-421-01 TERMINAL, MINUS
8 3-234-427-01 SLIDE, CORD
9 3-234-434-01 RING, SLIP
10 3-234-431-01 HOLDER, FLEXIBLE
11 A-3174-083-A REEL ASSY, CORD
12 3-234-422-01 LEVER, SWITCH
13 3-234-424-01 SPRING, LOCK
14 A-3174-081-A CASE ASSY, FRONT
15 3-234-423-01 KNOB, SWITCH
16 1-682-766-11 FLEXIBLE BOARD
* 17 1-682-765-11 AMPLIFIER BOARD
18 3-318-203-34 SCREW (B1.7X2.5), TAPPING
19 3-237-418-01 SPRING, GROUND COIL
20 A-3174-087-A UNIT ASSY (MIC L, R)
21 3-237-422-01 CUSHION
22 3-238-572-01 PLATE, GROUND
23 3-237-420-01 SHEET (E), DOUBLE-FACE ADHESIVE
P1 1-823-289-11 CORD, CONNECTION (2 CORE) (OUTPUT)
• The mechanical parts with no reference
number in the exploded views are not
supplied.
2
5
1
1
4
3
2
1
1
22
21
20
17
16
18
19
10
11
12
13
14
15
9
P1
7
8
6
2
23
