Sony EVI-D70 - Pin Assignments

35
Command List

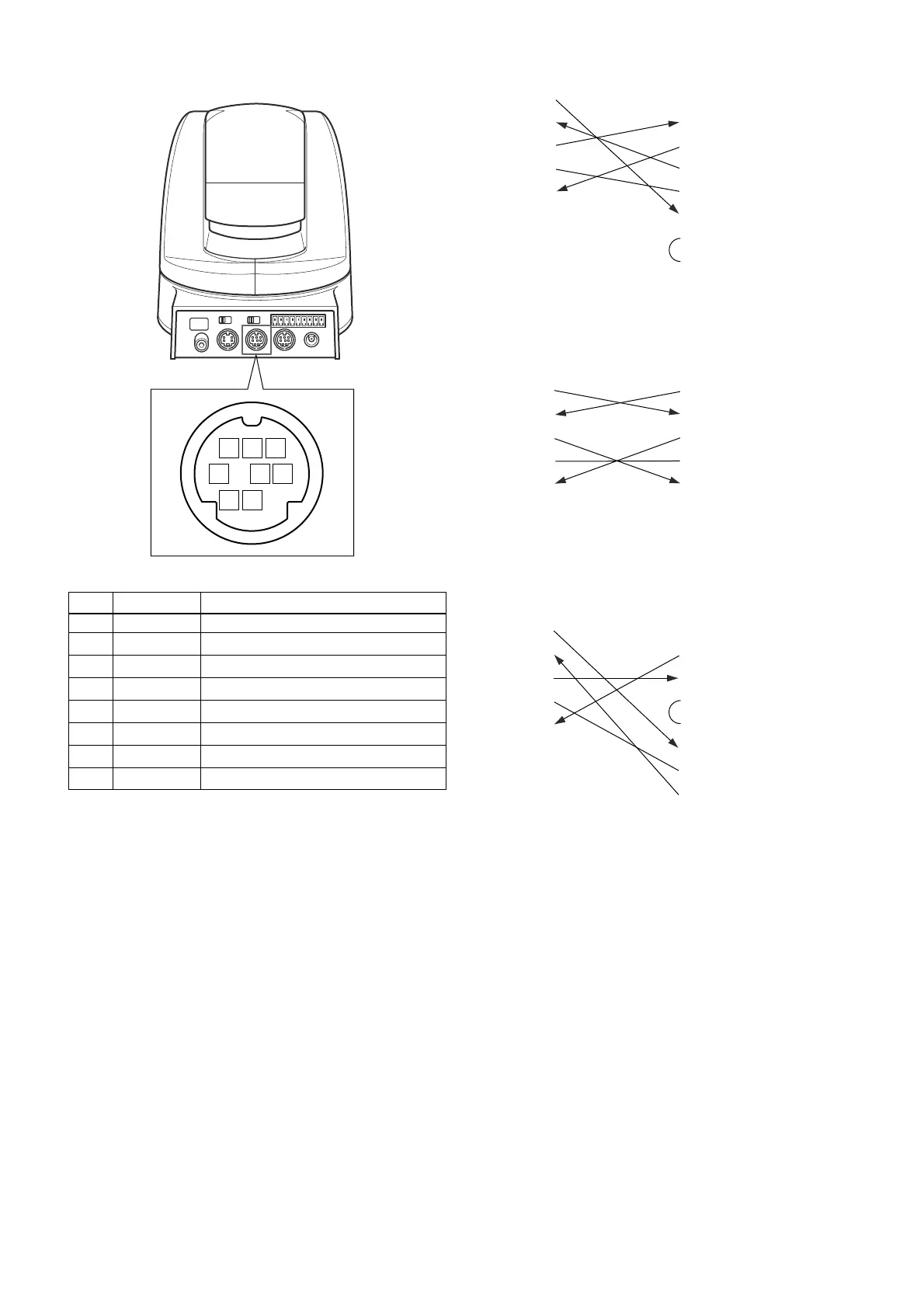

• EVI-D70/P Windows D-sub 25 pin
Pin assignment
8 7 6
5 4 3
2 1
IR OUT outputs the signals of the Remote Commander
at 0 to 5 V when the IR OUT switch is set to ON.
No Pins Signals
1 DTR DataTransmission Ready (OUTPUT)
2 DSR Data Set Ready (INPUT)
3 TXD Transmit Data (OUTPUT)
4 GND Ground
5 RXD Receive Data (INPUT)
6 GND Ground
7 IR OUT IR Commander Signal (OUTPUT)
8 N.C. No Connection
1. DTR
2. DSR
3. TXD
4. GND
5. RXD
6. GND
7. IR OUT
8. N.C.
1. CD
2. RXD
3. TXD
4. DTR
5. GND
6. DSR
7. RTS
8. CTS
9. RI
• EVI-D70/P EVI Camera or Mini
DIN 8 pin serial
1. DTR
2. DSR
3. TXD
4. GND
5. RXD
6. GND
7. IR OUT
8. N.C.
1. DTR
2. DSR
3. TXD
4. GND
5. RXD
6. GND
7. OPEN
8. OPEN
1. DTR
2. DSR
3. TXD
4. GND
5. RXD
6. GND
7. IR OUT
8. N.C.
1. FG
2. TXD
3. RXD
4. RTS
5. CTS
6. DSR
7. GND
20. DTR
• EVI-D70/P Windows D-sub 9 pin
VISCA RS-232C IN
