Sony EVI-D80 - Connector Pin Assignments

25
Command List

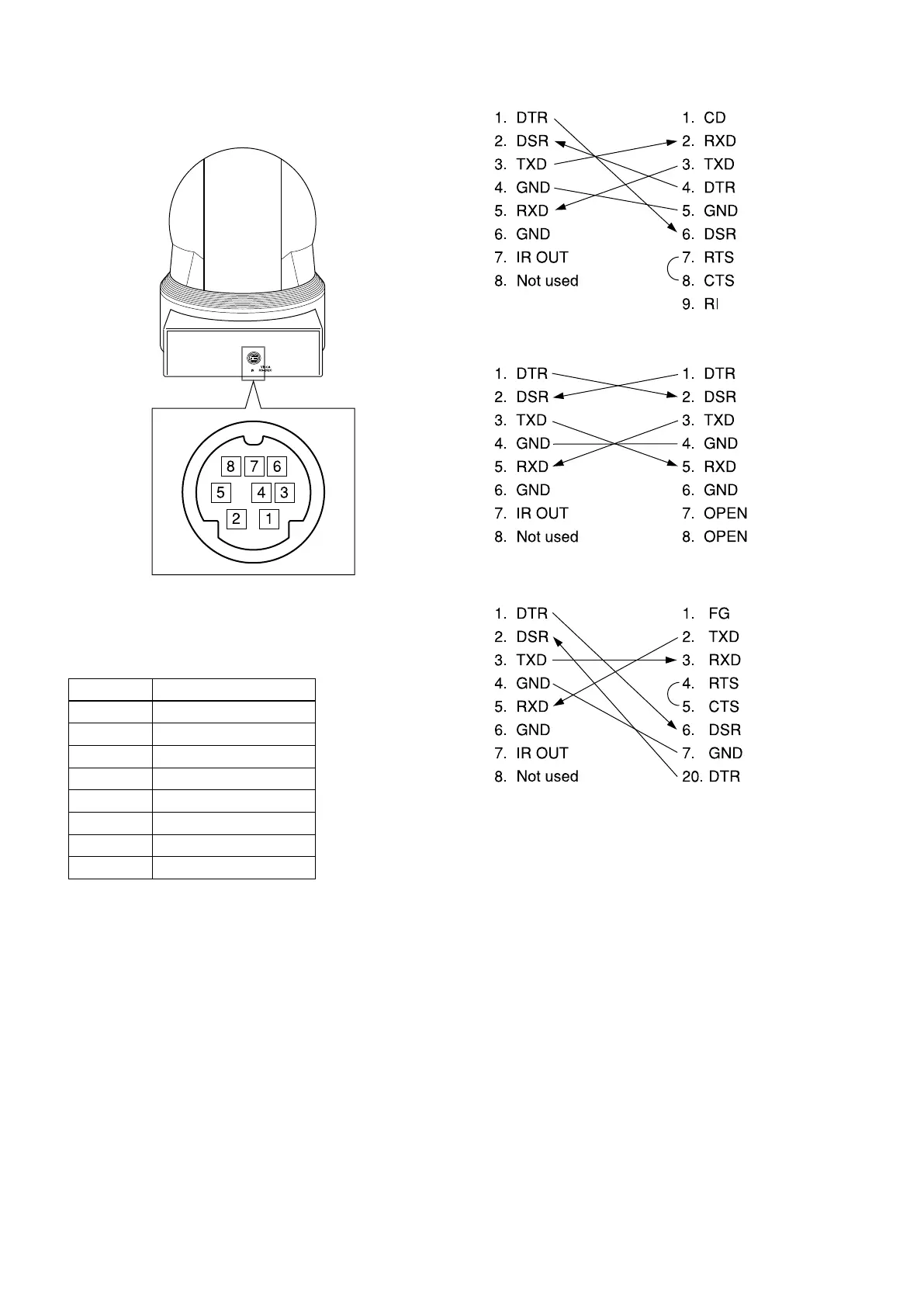

Pin assignment
VISCA IN connector (mini-DIN 8-pin, female)

EVI-D80N/D80P/ Windows D-sub 9 pin
D90N/D90P

EVI-D80N/D80P/ EVI Camera or Mini
D90N/D90P DIN 8 pin serial

EVI-D80N/D80P/ Windows D-sub 25 pin
D90N/D90P
VISCA IN
No Pins
1 DTR IN*
2 DSR IN*
3 TXD IN
4 GND
5 RXD IN
6 GND
7 IR OUT**
8 Not used
* The “IN” in the function names for pins 1 and 2 (“DTR IN” and
“DSR IN”) are in reference to being within the VISCA IN
connector. For details on signal direction, see the diagrams to the
right.
** You can change ON/OFF of IR OUT of pins 7 using the
BOTTOM switch (see page 6).
