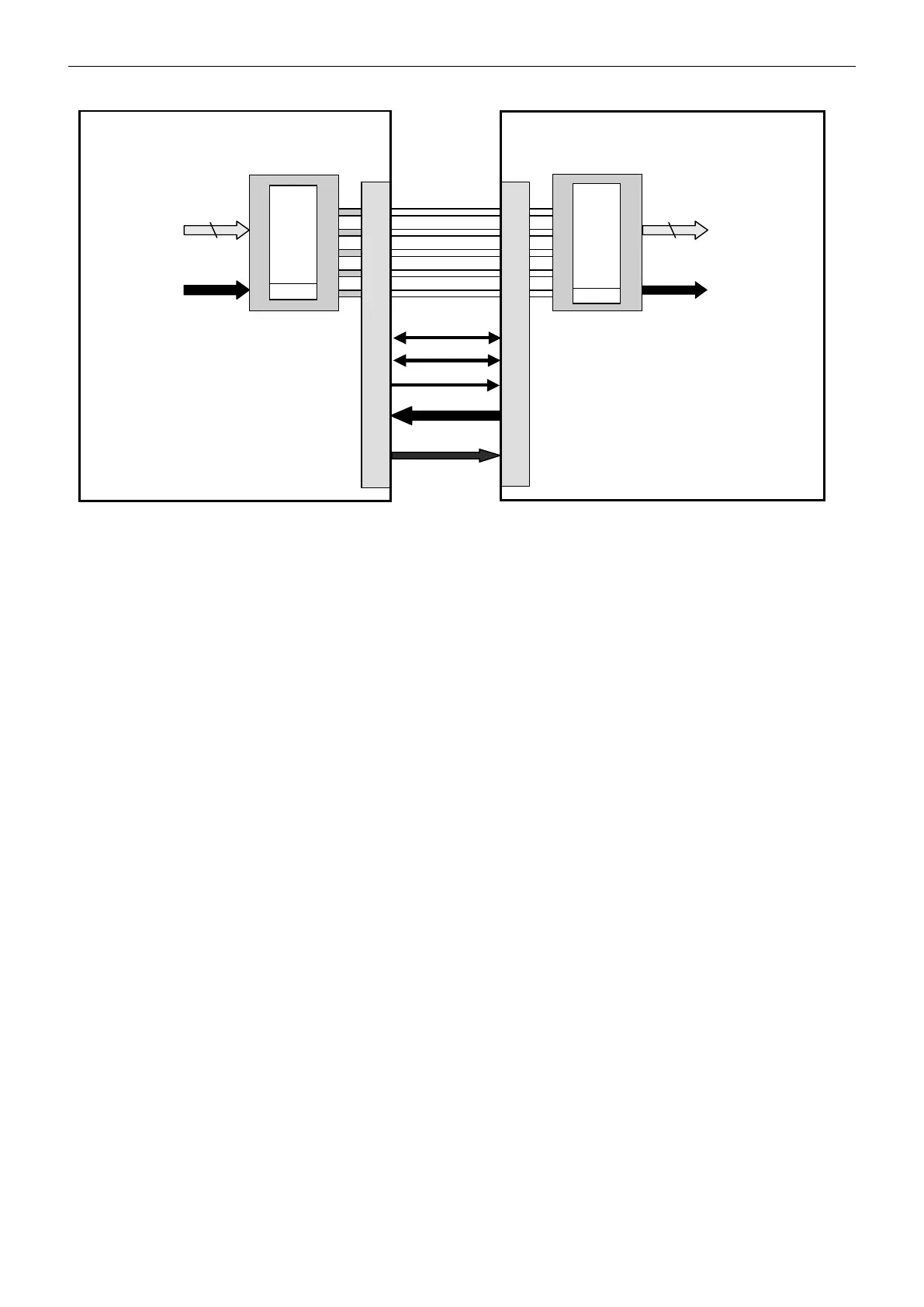

Specifications
Interface
Y/CREC656
Y/CREC656
CKL CKL
28MHz/Interlace
56MHz/Progressive
PLL
8bits 8bits
LVDC
5pairs(10pin)
TXD
RXD
PLL
LVDS
To
TTL
Parallel
TTL
Parallel
to
LVDS
LLPULSE
POWER
VBSSDVideo
USL00-30L-C(KELCop.)
30Coaxcial
cable
RX
THC63LVD104C
(THineElectronics,Inc.)
FCB-EX12E/P,FCB-EX15E/P
FCB-CX12E/P,FCB-CX15E/P
• The FCB-EX12E/P, FCB-EX15E/P, FCB-CX12E/P and FCB-CX15E/P uses the LVDS transmitter IC chip. The
LVDS receiver IC chip
(e.g., THC63LVD104C (Thine Electronics, Inc.), BU90R104 (ROHM Co., Ltd.)) is recommended.
• Recommended connectors and cables
Cable: #42 thin coaxial cable
Connector: USL20-30S (KEL)
