Locations of Controls
FCB-EH6500(GB) A-EEP-100-11(1)
6

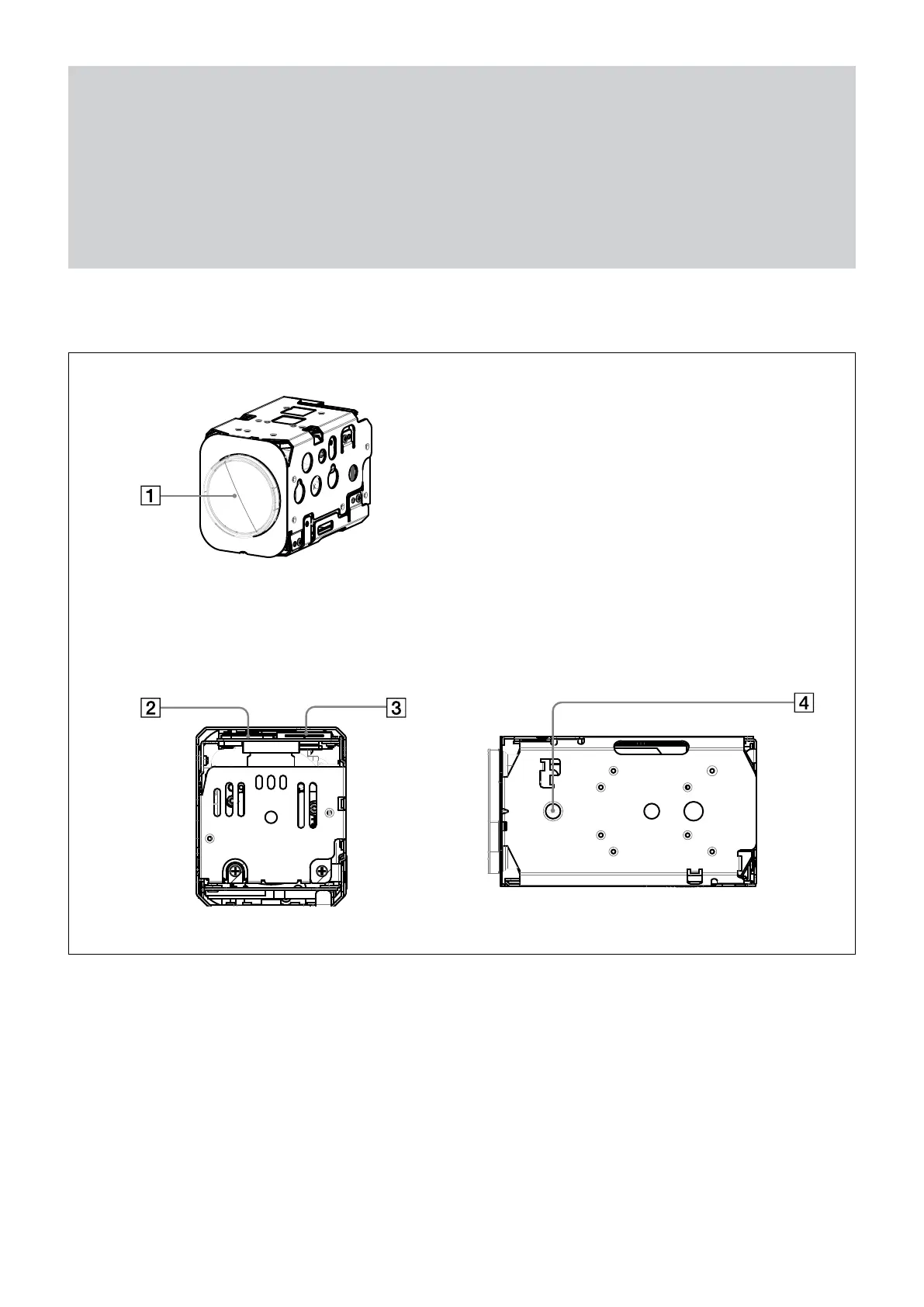

Locations of Controls
 Lens
 CN401 connector
 CN501 connector
 Tripod screw hole
When a tripod is used, please use 7 mm (
9
/
32
in.) or less screw to attach it to the camera.
Also, please be sure to attach the tripod securely.
Front
Back
Bottom
