Sony FCB-EV7520 - Pin Assignment; CN401 Digital I;O and CN501 Analog I;O Pin Assignments

Specifications
FCB-EH6500(GB) A-EEP-100-11(1)
71

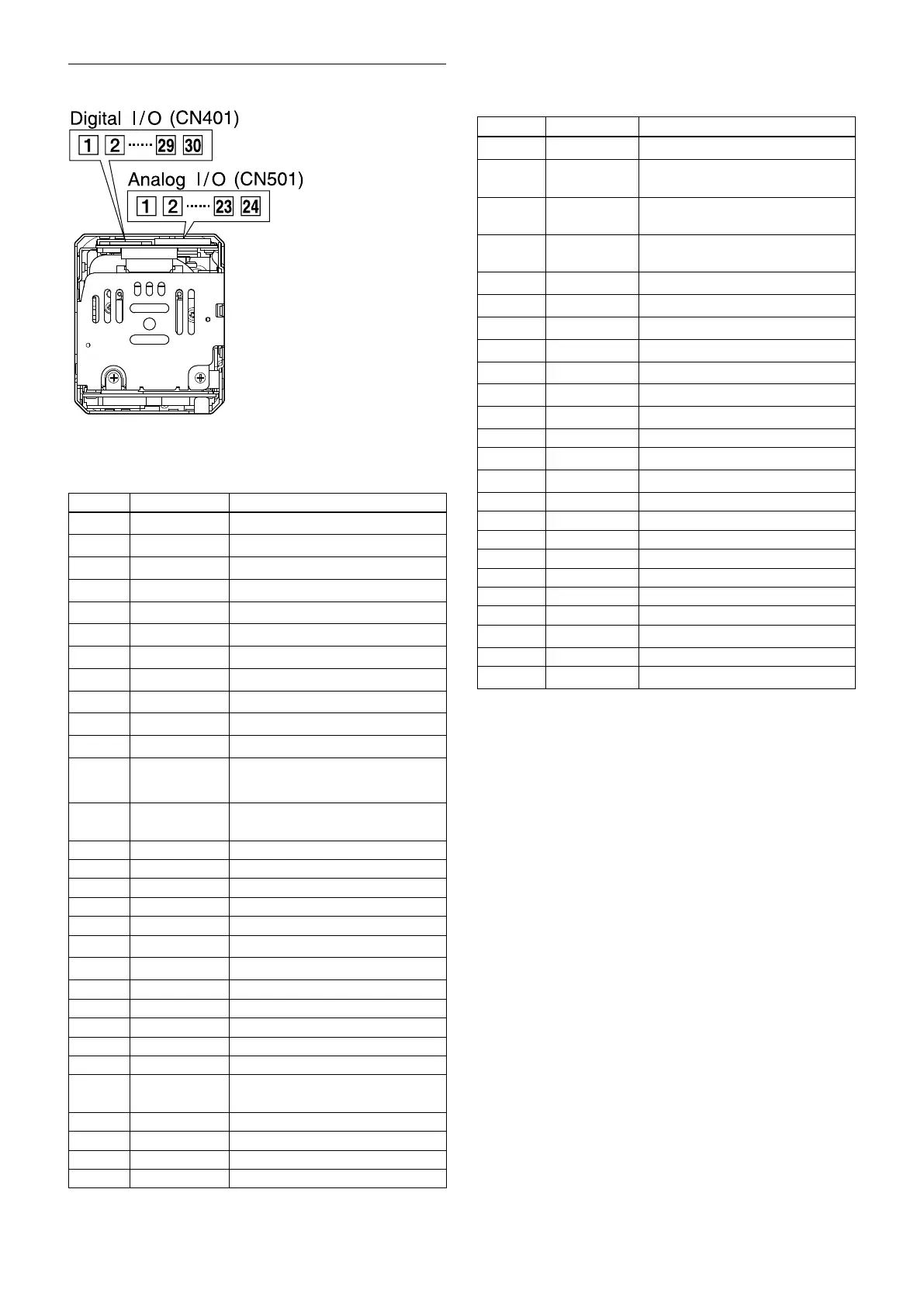

Pin assignment
CN401
KEL Co. USL00-30L-C
Pin No. Name Level
1 TXOUT3+
2 TXOUT3−
3 TXCLKOUT+
4 TXCLKOUT−
5 TXOUT2+
6 TXOUT2−
7 TXOUT1+
8 TXOUT1−
9 TXOUT0+
10 TXOUT0−
11 GND
12 TxD
CMOS 5 V (Low: Max 0.1 V,
High: Min 4.4 V)
13 RxD CMOS 5 V (Low: Max 1.0 V,
High: Min 2.3 V)
14 DC IN 6 to 12 V DC
15 DC IN 6 to 12 V DC
16 DC IN 6 to 12 V DC
17 DC IN 6 to 12 V DC
18 DC IN 6 to 12 V DC
19 GND
20 GND
21 TXOUT7+ Single out mode: open
22 TXOUT7– Single out mode: open
23 TXOUT6+ Single out mode: open
24 TXOUT6– Single out mode: open
25 NC
26 RESET
Reset: Low (GND), Normal:
Open (1.8V)
27 TXOUT5+ Single out mode: open
28 TXOUT5– Single out mode: open
29 TXOUT4+ Single out mode: open
30 TXOUT4– Single out mode: open
CN501
Kyocera-elco 046240024006800+
Pin No. Name Level
1 GND
2 TxD CMOS 5 V
(Low: Max 0.1 V, High: Min 4.4 V)
3 RxD CMOS 5 V
(Low: Max 1.0 V, High: Min 2.3 V)
4 RESET Reset: Low (GND), Normal:
Open (1.8V)
5 GND
6 NC
7 GND
8 NC
9 GND
10 VBS-OUT
11 GND
12 NC
13 GND
14 NC
15 GND
16 NC
17 GND
18 DC IN 6 to 12 V DC
19 DC IN 6 to 12 V DC
20 DC IN 6 to 12 V DC
21 DC IN 6 to 12 V DC
22 GND
23 DC IN 6 to 12 V DC
24 GND
