11
Basic Functions
ICR
SHUTTER
Dark Bright
AGC
MAX
IRIS
OPEN
Shutter 1/60 sec
ICR OFF t ON
GAIN
ICR ON
IRIS
Effect
It consists of the following functions.
• Neg. Art: Negative/Positive Reversal
• Black White: Monochrome Image
Others
E-FLIP
This function turns the video output from the camera
upside down.
Mirror image
This function reverses the video output from the
camera horizontally.
Freeze
This function captures an image in the field memory of
the camera so that this image can be output
continuously.
Because communication inside the camera is based on V
cycle, the captured image is always the one 3V to 4Vs after
the sending of a Command. Thus, you can not specify a time
period after sending EVEN, ODD or a Command.
Memory (Position preset)
Using the position preset function, 6 sets of camera
shooting conditions can be stored and recalled.
This function allows you to achieve the desired status
instantly, even without adjusting the following items
each time.
• Zoom Position
• Digital Zoom On/Off
• Focus Auto/Manual
• Focus Position
• AE Mode
• Shutter control parameters
• Bright Control
• Iris control parameters
• Gain control parameters
• Exposure Compensation On/Off
• Exposure Level
• Backlight Compensation On/Off
• Slow Shutter Auto/Manual
• Slow AE Response speed
• White Balance Mode
• R/B Gain
• Aperture
• ICR Shoot On/Off
Custom Preset
As with the positon preset function, the camera
shooting conditions can be stored and recalled. The
settings are recalled when the power is turned on. For
setting items, see the “Initial Settings, Custom Preset
and Backup” section on page 31.

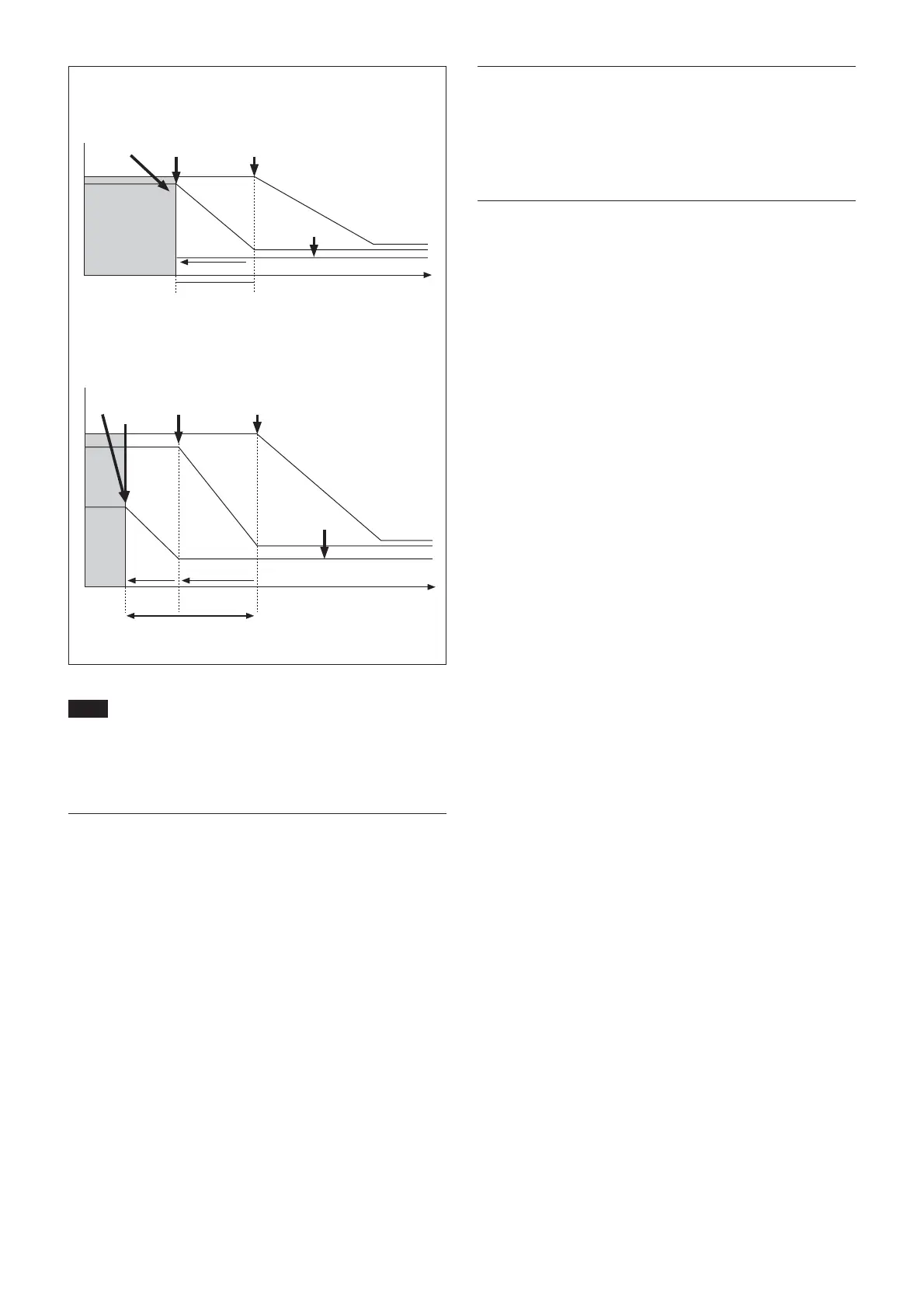

When Auto Slow Shutter is ON
Dark
ICR AGC
MAX
GAIN
MAX
IRIS
IRIS
ICR
ON
OPEN
SHUTTER
Slow
Shutter
ON
Bright
Slow
Shutter
ICR OFF t ON
When Auto Slow Shutter is OFF (initial setting)
Note
When in Auto_ICR_OFF state and WB data is added (default), a
malfunction may occur when the subjects largely consisting of blue
and red colors are taken.
Camera ID
The ID can be set up to 65,536 (0000 to FFFF). As this
will be memorized in the nonvolatile memory inside,
data will be saved regardless of whether it has been
backed up.
