Locations of Controls
Locations of Controls

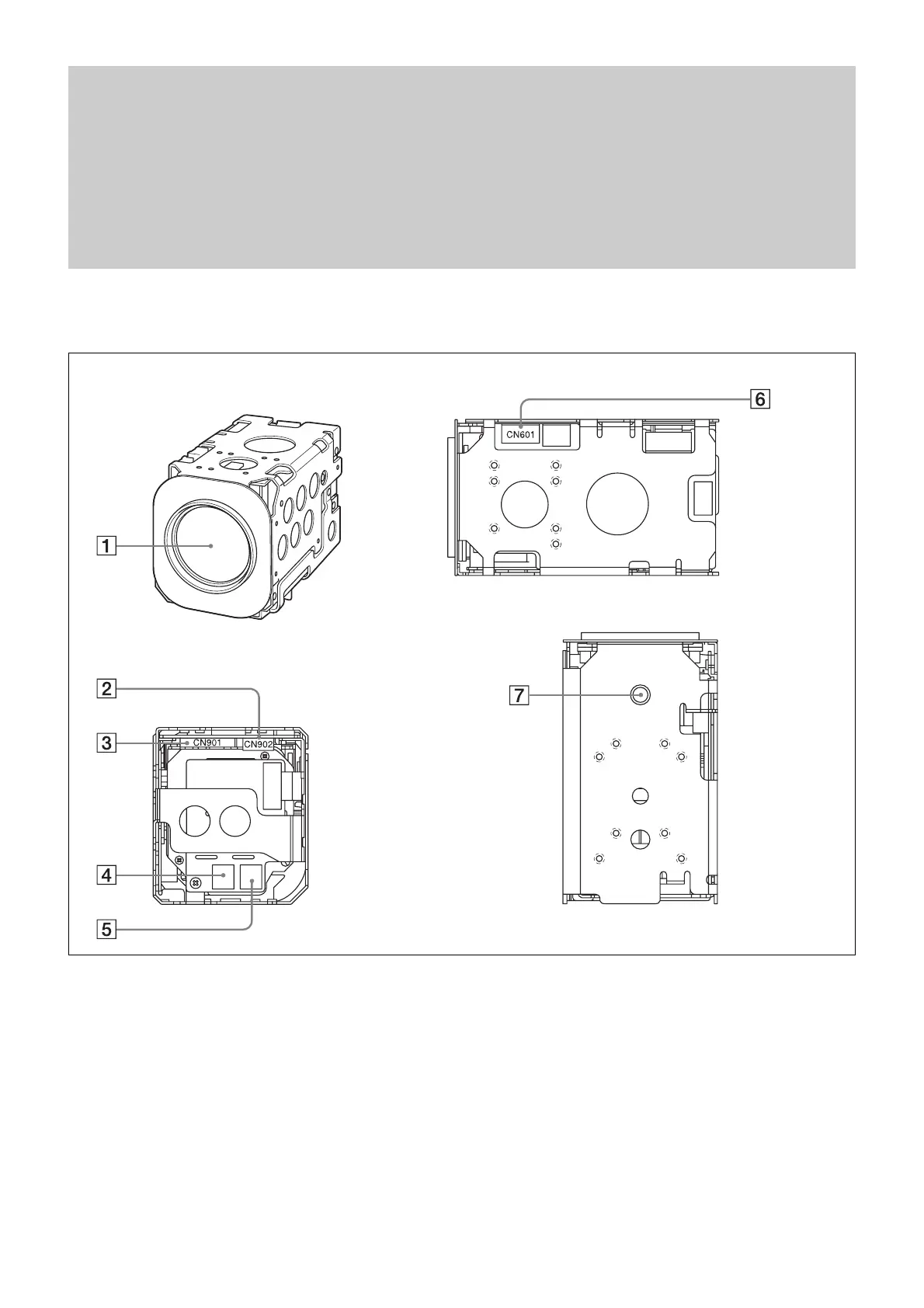

1 Lens
2 CN902 jack
3 CN901 jack
4 TELE button
5 WIDE button
6 CN601 jack (for key SW)
7 Tripod screw holes
When a tripod is used, please use
7 mm (
9
/32 in.) or less screws to
attach it to the camera. Also,
please be sure to attach the tripod
securely.
Front
Back Bottom
Top
