SECTION 6
EXPLODED VIEWS
NOTE :
Items with no part number and no description are not
stocked because they are seldom required for routine
service.
The construction parts of an assembled part are indicated
with a collation number in the remarks column.
Items marked “*” are not stocked
since they are seldom required for
routine service. Some delay should
be anticipated when ordering these
items.

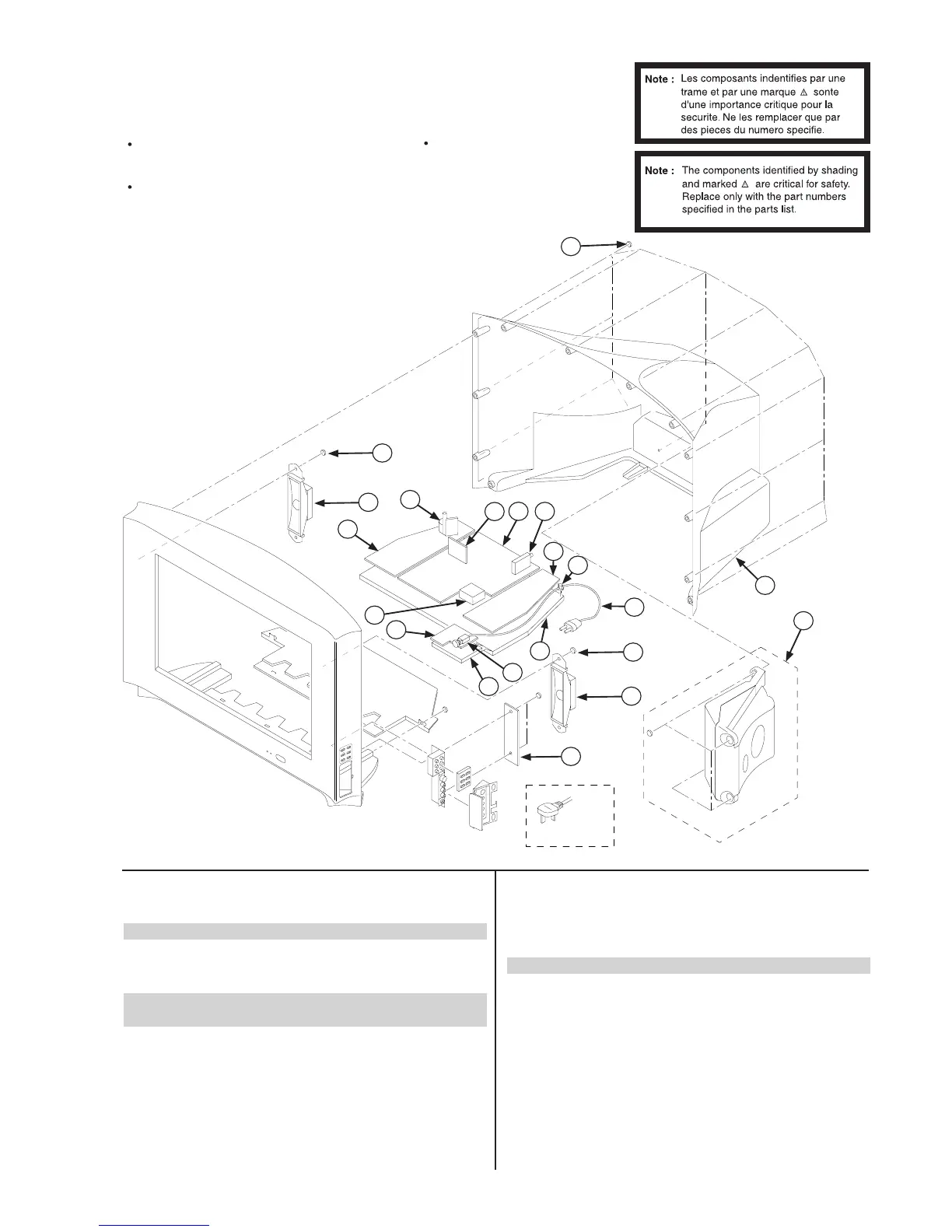

6-1. CHASSIS
REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
- 50 -
1 *A-1410-981-A F5 BOARD, COMPLETE
2 *4-102-697-11 F BRACKET (KV28CS70)
*4-102-697-01 F BRACKET (KV32CS70)
3 £ 1-571-433-21 SWITCH, PUSH (AC POWER)
4 *A-1415-840-A H6 BOARD COMPLETE
5 *4-206-106-33 BRACKET, MAIN (KV28CS70)
*4-206-106-06 BRACKET, MAIN (KV32CS70)
6 £ 1-776-204-12 CORD, POWER FILTER (KV28CS70)
£ 1-765-286-11 CORD, POWER (KV32CS70)
7 *4-202-531-01 AC CORD LOCK (SC)
8 *A-1300-179-A G BOARD, COMPLETE
9 8-598-623-10 TUNER, FSS BTP-AC421 (KV-28CS70B/E/
KV-32CS70B/E/K)
8-598-624-10 TUNER, FSS BTP-AU621 (KV-28CS70U/
KV-32CS70U)
10 *A-1055-725-A A BOARD, COMPLETE (KV-28CS70B)
*A-1062-981-A A BOARD, COMPLETE (KV-28CS70E)
*A-1063-011-A A BOARD, COMPLETE (KV-28CS70U)
*A-1055-720-A A BOARD, COMPLETE (KV-32CS70B)
*A-1060-570-A A BOARD, COMPLETE (KV-32CS70E)
*A-1060-570-A A BOARD, COMPLETE (KV-32CS70K)
*A-1060-567-A A BOARD, COMPLETE (KV-32CS70U)
11 *A-1300-287-A M BOARD, COMPLETE
12 £ 1-453-340-41 TRANSFORMER ASSY, FLYBACK (NX-4522//Z2B4)
13 *A-1062-906-A D BOARD, COMPLETE (KV28CS70)
*A-1060-868-A D BOARD, COMPLETE (KV32CS70)
14 1-424-855-11 COIL, CHOKE 29MMH
15 4-384-096-01 SCREW (4x16), TAPPING +P (KV28CS70)
4-058-870-01 SCREW (4x16)W(+)P TAPPING (KV32CS70)
16 1-825-859-11 LOUDSPEAKER (5.5x15CM)
17 *1-825-860-11 WOOFER ASSY
18 4-103-127-01 COVER REAR (KV28CS70)
4-102-696-01 REAR COVER (KV32CS70)
19 4-039-356-01 SCREW (3x12) (+)BV TAPPING (KV28CS70)
7-685-648-79 SCREW +BVTP 3x12 TYPE2 IT-3 (KV32CS70)
3
8
15
13
UK
Models only
19
16
12
14
15
16
11
9
10
7
6
4
2
1
5
18
17
To Next Page
