Connecting Your TV

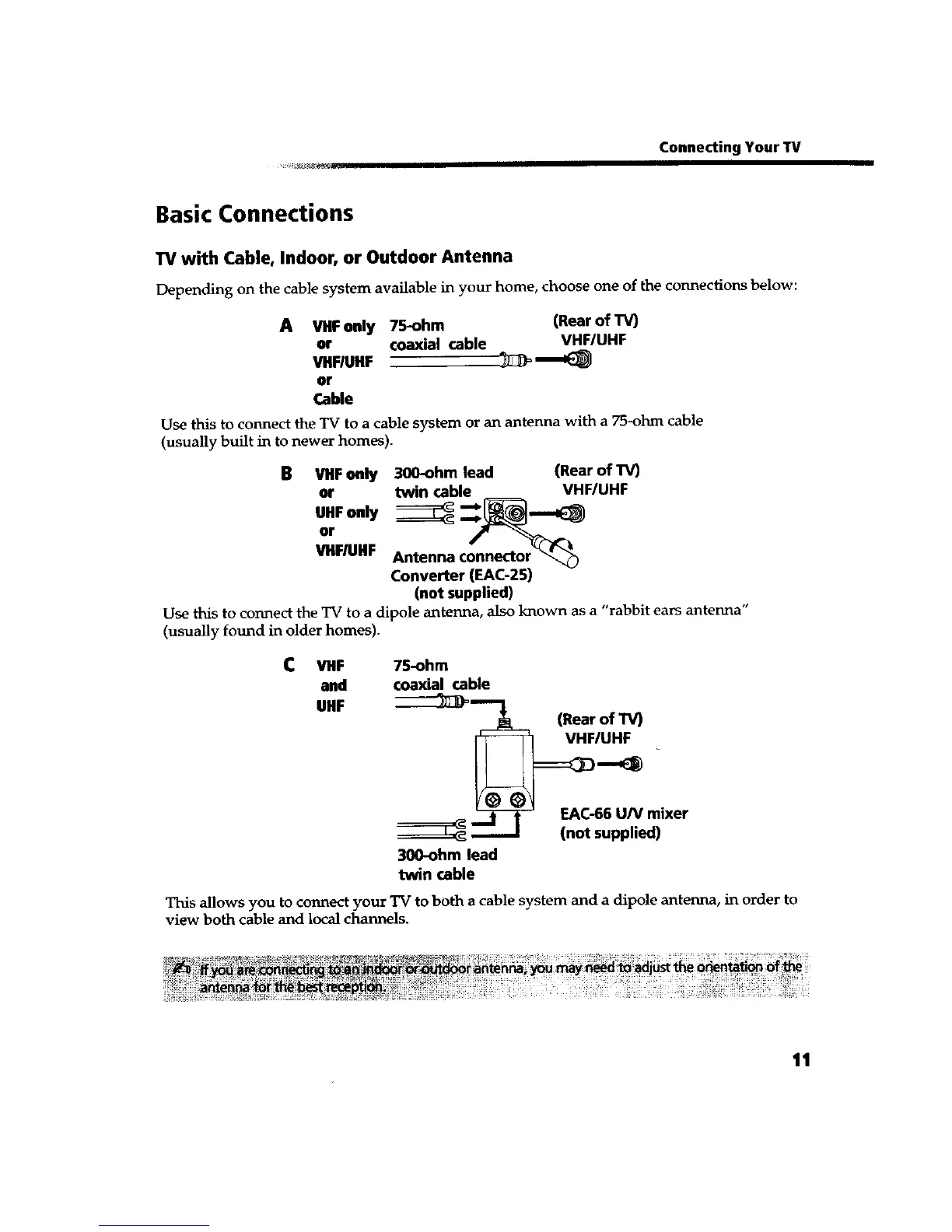

Basic Connections
TV with Cable, Indoor, or Outdoor Antenna
Depending on the cable system available in your home, choose one of the connections below:
VHF only 75-ohm (Rear of TV)
or coaxial cable VHF/UHF
VHF/UHF _)_'_
or
Cable
A
Use this to connect the TV to a cable system or an antenna with a 75-ohm cable
(usually built in to newer homes).
B VHF only
or
UHFonly
or
VHFIUHF
300-ohm lead (Rear of TV)
twin cable VHF/UHF
Antenna connector
Converter (EAC-25)
(not supplied)
• , ii * tt
Use this to connect the TV to a dipole antenna, also known as a rabhit ears antenna
(usually found in older homes).
C VHF
and
UHF
75-ohm
coaxial cable
_P'-_-- (Rear of TV)
EAC-66 U/V mixer
(notsupp,
300-ohm lead
twin cable
This allows you to connect your TV to both a cable system and a dipole antenna, in order to
view both cable and local channels.
11
