Sony FDL-22 - 5 Exploded View; Chassis

– 27 –
NOTE:
• Items with no part number and no description are
not stocked because they are seldom required
for routine service.

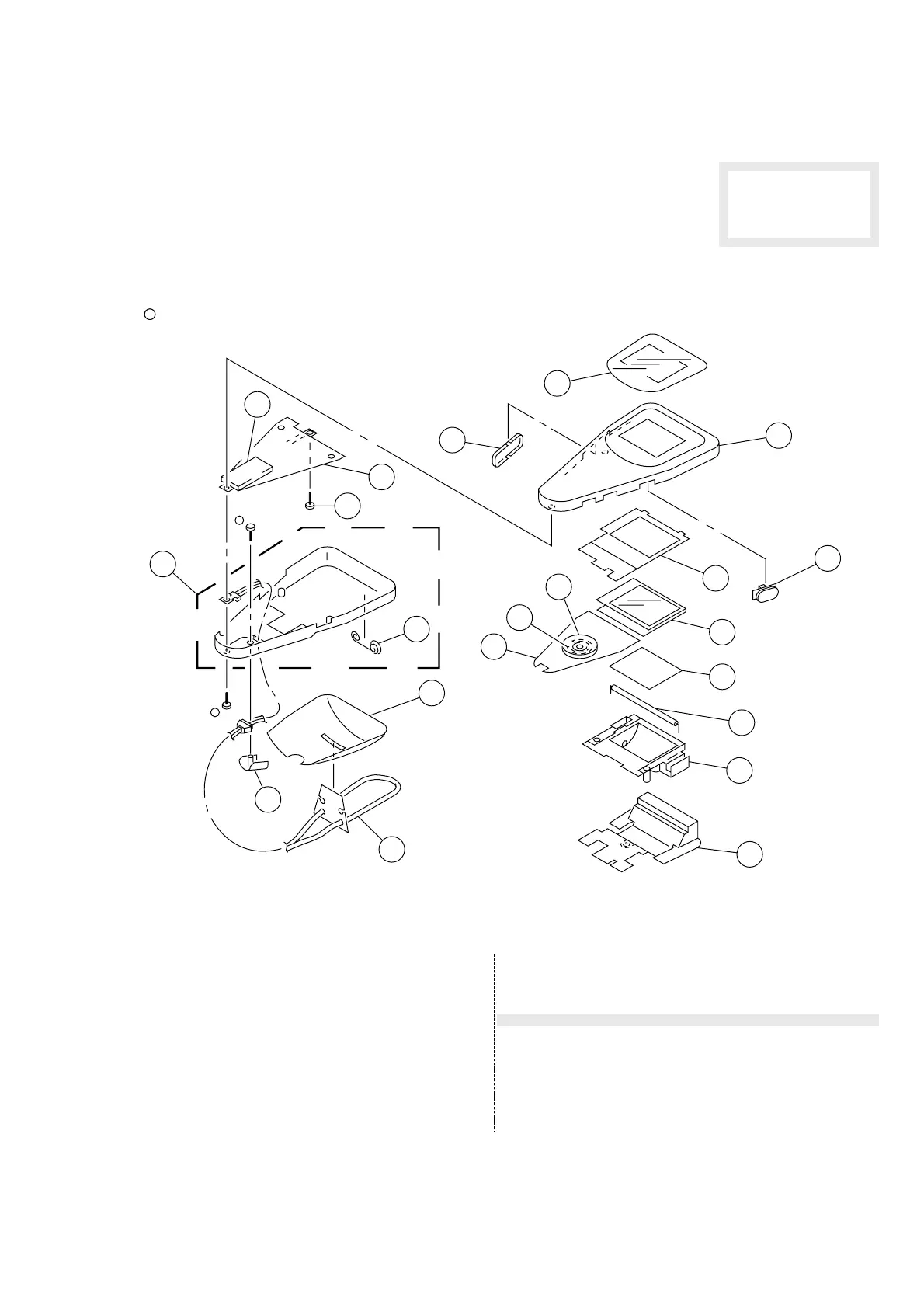

5-1. CHASSIS
• The construction parts of an assembled part are
indicated with a collation number in the remark
column.
• Items marked " * " are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
: 7-685-106-19 +P2 X10
REF. NO. PART NO. DESCRIPTION REMARK
------------ ------------- ------------------- -------------
REF. NO. PART NO. DESCRIPTION REMARK
------------ ------------- ------------------- -------------
1 4-048-324-01 FILTER
2 X-4032-638-4 CABINET ASSY, FRONT
3 4-048-321-01 SWITCH, POWER
4 4-048-322-01 BUTTON, CHANNEL
5 *4-048-327-01 SHIELD, PANEL
6 1-810-873-12 MODULE, INDICATOR
7 *A-1135-818-A B BOARD, COMPLETE
8 1-504-847-11 SPEAKER (2.8CM)
9 4-048-551-01 SPACER, SPEAKER
10 *4-048-325-01 ILLUMINATOR
11 1-517-425-13 LIGHT, BACK
12 *4-048-317-01 REFLECTOR
13 *A-1394-649-A L BOARD, COMPLETE
14 *A-1297-491-A A BOARD, COMPLETE
15 ! 1-693-219-11 TUNER UNIT (TEPA5)
16 4-908-792-51 SCREW (B2)
17 X-4032-639-4 CABINET ASSY, REAR 21
18 4-048-323-01 COVER, ANTENNA
19 1-501-767-11 ANTENNA, STRAP
20 4-048-320-01 COVER, BATTERY
21 4-048-468-01 SPRING (B), BATTERY
The components identified by
shading and mark
! are criti-
cal for safety.
Replace only with part number
specified.
10
11
1
12
2
13
3
14
4
15
5
16
6
17
7
18
8
19
9
20
21
SECTION 5
EXPLODED VIEW
