SECTION 2
DISASSEMBLY

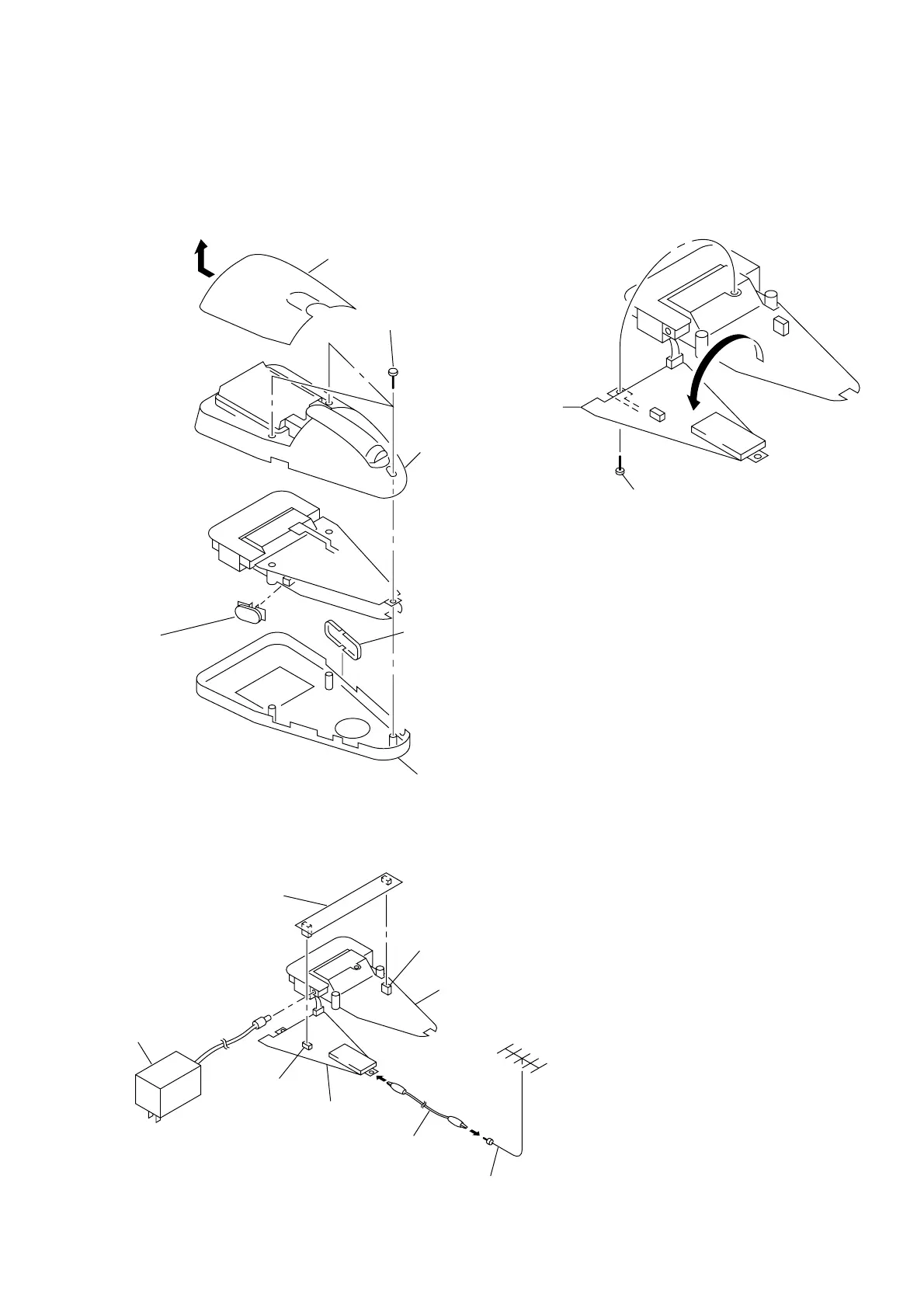

2-1. CABINET ASSY REMOVAL 2-2. A BOARD REMOVAL
2-3. SERVICE POSITION
Service cord
1-900-211-84
AC power adaptor
CN201
A board
cord
Antenna
B board
CN502
1 Battery cover
3 Rear cabinet assy
4 Front cabinet assy
2 Three screws
(+P2x10)
Channel button
*When attaching, be sure to
confirm that the correct side
is facing up.
Power switch button
1 One screw (+B2)
2 A board
