– 6 –
SECTION 3
CIRCUIT ADJUSTMENTS

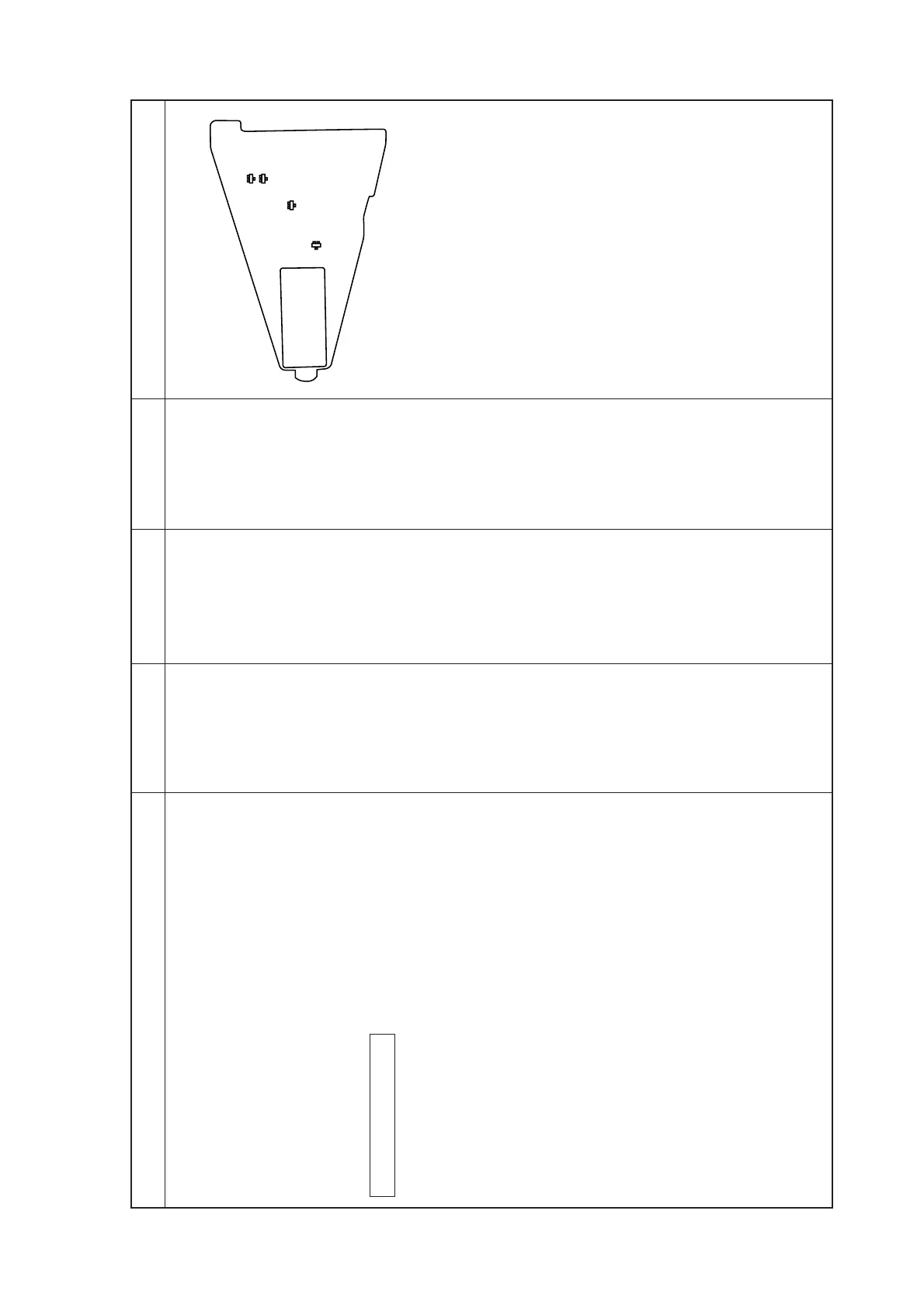

– A BOARD – (COMPONENT SIDE) *4.55 ± 0.05 V DC
MEASUREMENT
POSITION
ADJUSTMENT
LOCATION
ILLUSTRATION AND SHAPE
AND NUMBER
ADJUSTMENT ITEM AND PROCEDURE
EQUIPMENT
AND SIGNAL
A BOARD ADJUSTMENT
+4.5 ADJUSTMENT
Measure *JL with a *digital voltmeter and adjust *RV for the *Voltage.
*Digital
Voltmeter
*JL61
*RV601
RV601
RV201
RV001 RV003
TU101
