HCD-H7/H1500
SECTION 3
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.

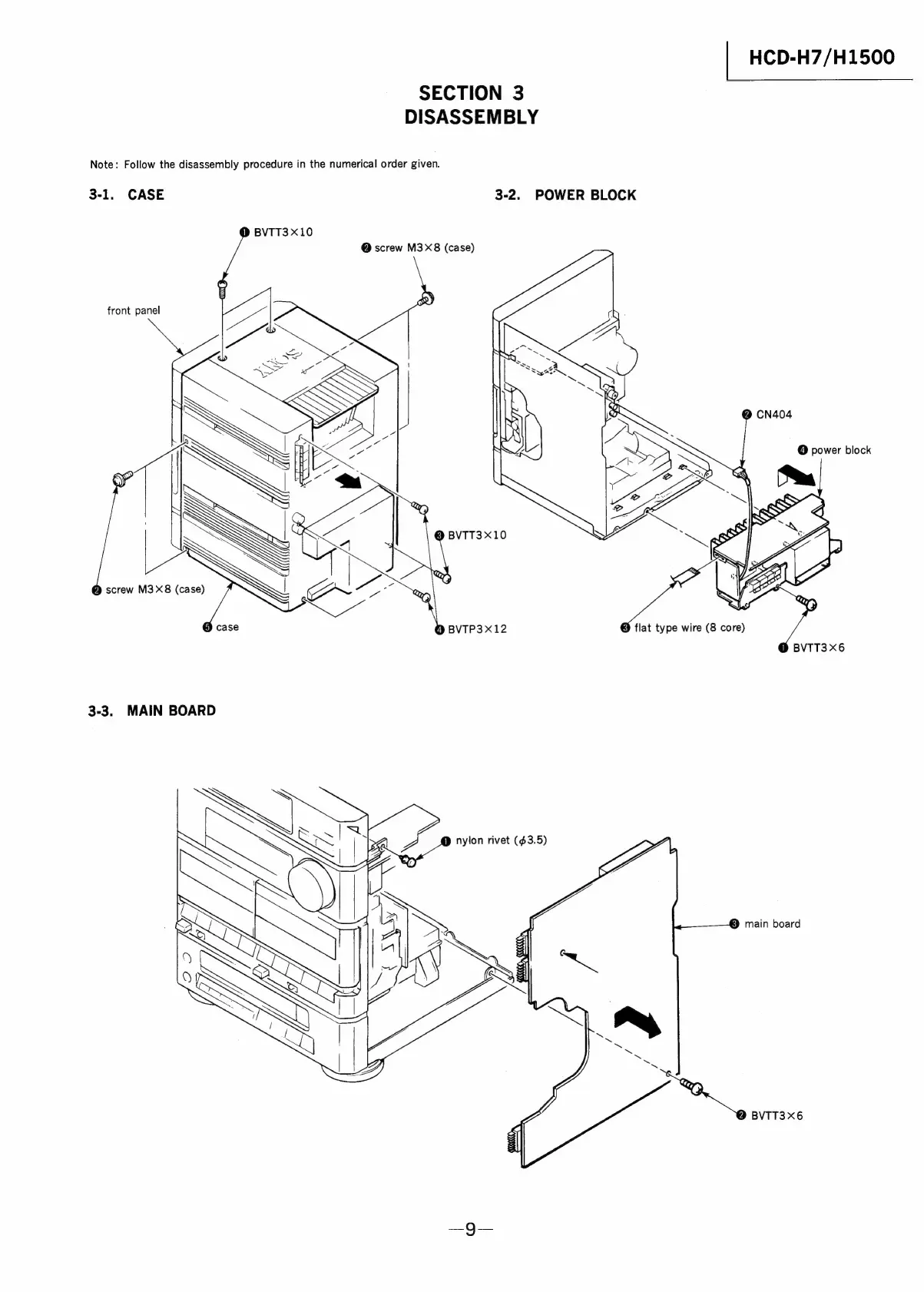

3-1. CASE 3-2. POWER BLOCK
BVTT3 X10
@ screw M38 (case)
front panel
B CN404
© power block
g
_
:
& flat type wire (8 core)
B BVTP3Xx12
DD BVTT3X6
3-3. MAIN BOARD
a
main board
