Sony FH-B7CD - 8 Electrical Parts List

HCD-H7/H1500

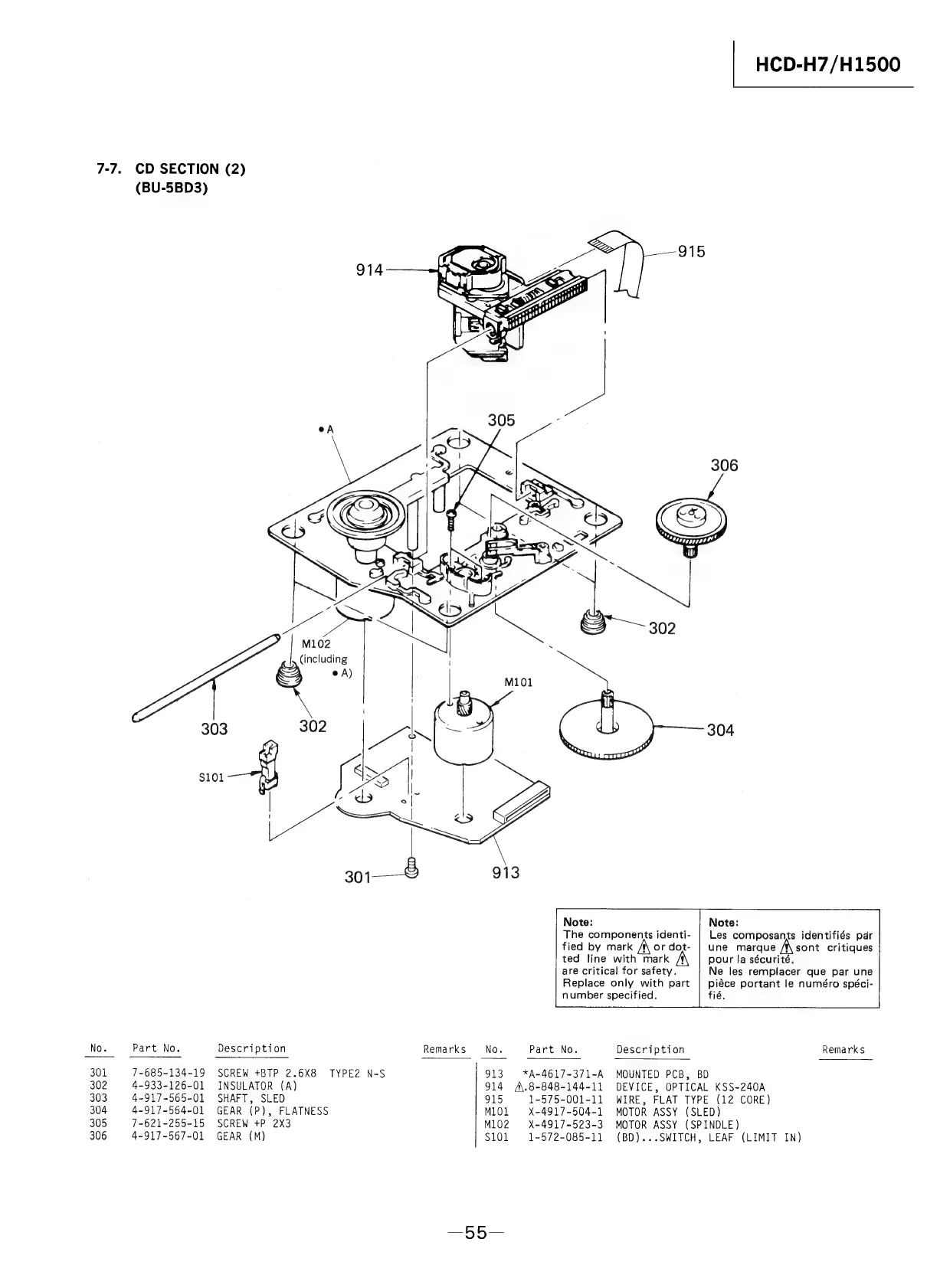

7-7, CD SECTION (2)
(BU-5BD3)
306
1
(including
303 304
$101
391-@ 913
Note: Note:
The components identi- | Les composants identifiés pdr
fied by mark A\or dot- | une marque A\sont critiques
ted line with mark pour la sécurité.
are critical for safety. Ne les. remplacer que par une
Replace only with part | piéce portant le numéro spéci-
number specified. fié.
No. Part No. Description Remarks No. Part No. Description Remarks
301 7~-685-134-19 SCREW +BTP 2.6X8 TYPE2 N-S 913. *A-4617-371-A MOUNTED PCB, BD
302 4-933-126-01 INSULATOR (A) 914 A.8-848-144-11 DEVICE, OPTICAL KSS-240A
303 4-917-565-01 SHAFT, SLED 915 1-575-001-11 WIRE, FLAT TYPE (12 CORE)
304 4-917-564-01 GEAR (P}, FLATNESS M1O1l X~-4917-504-1 MOTOR ASSY (SLED)
305 7-621-255-15 SCREW +P 2X3 M102 X-4917-523-3 MOTOR ASSY (SPINDLE)
306 4-917-567-01 GEAR (M) $101 1-572-085-11 (BD)...SWITCH, LEAF (LIMIT IN)
