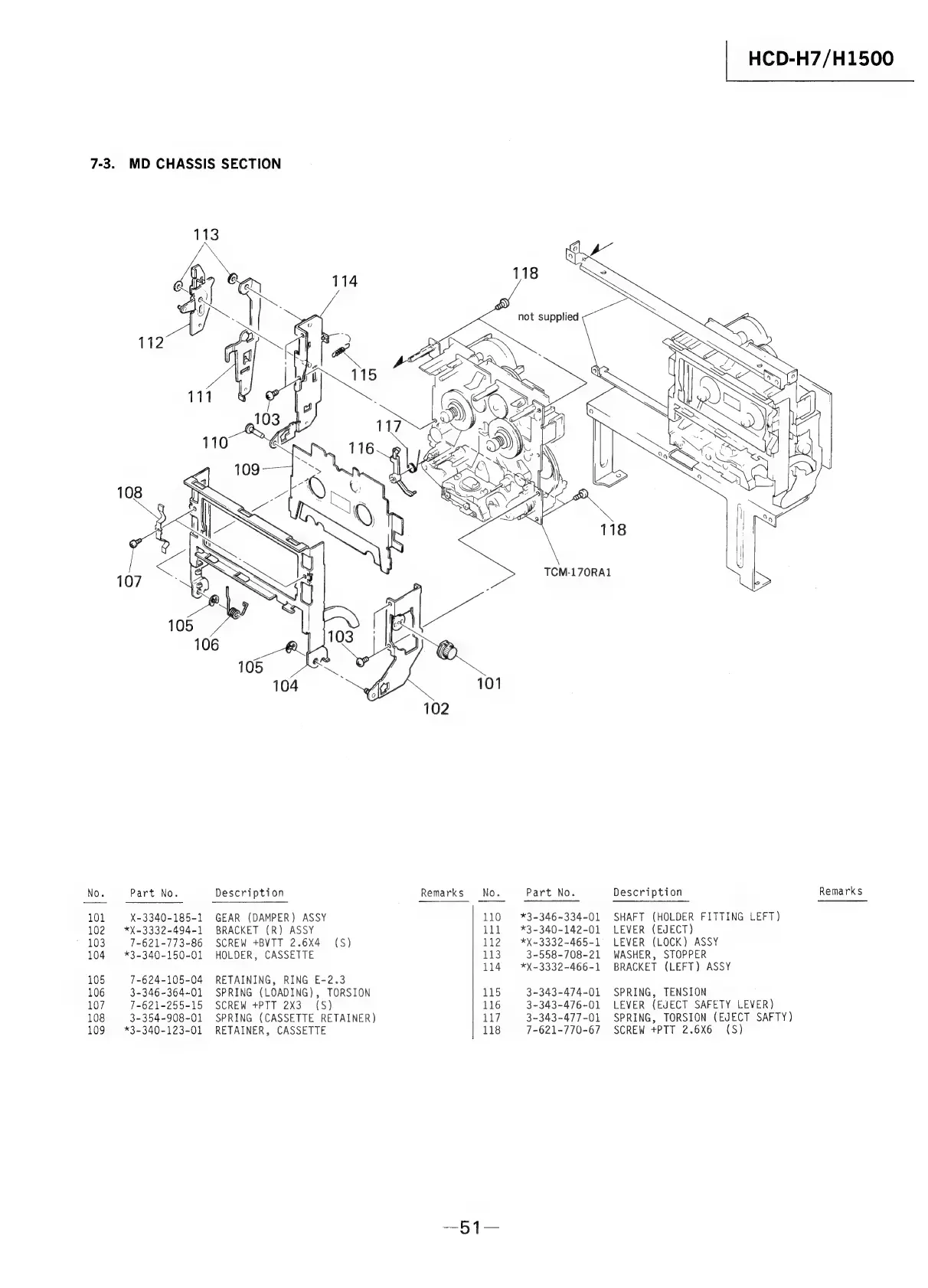

7-3. MD CHASSIS SECTION
Description
No. Part No.
101 X-3340-185-1
102 *X-3332-494-1
* 103 7-621-773-86
104 *3-340-150-01
105 7-624-105-04
106 3-346-364-01
107 7-621-255-15
108 3-354-908-01
109 *3-340-123-01
GEAR (DAMPER) ASSY
BRACKET (R) ASSY
SCREW +BVTT 2.6X4 (S)
HOLDER, CASSETTE
RETAINING, RING E-2.3
SPRING (LOADING), TORSION
SCREW +PTT 2X3 (S)
SPRING (CASSETTE RETAINER)
RETAINER, CASSETTE
Remarks No.
110
ill
112
113
114
115
116
117
118
not supplied
Part No.
*3-346~334-01
*3-340-142-01]
*X-3332-465-1
3-558-708-21
*X-3332-466-1
3-343-474-01
3-343-476-01
3-343-477-01
7-621-770-67
Description
| HCD-H7/H1500
Remarks
SHAFT (HOLDER FITTING LEFT)
LEVER (EJECT)
LEVER (LOCK) ASSY
WASHER, STOPPER
BRACKET (LEFT) ASSY
SPRING, TENSION
LEVER (EJECT SAFETY LEVER)
SPRING, TORSION (EJECT SAFTY)
SCREW +PTT 2.6X6 (S)
