Sony GTK-XB7 Service Manual

51
GTK-XB7

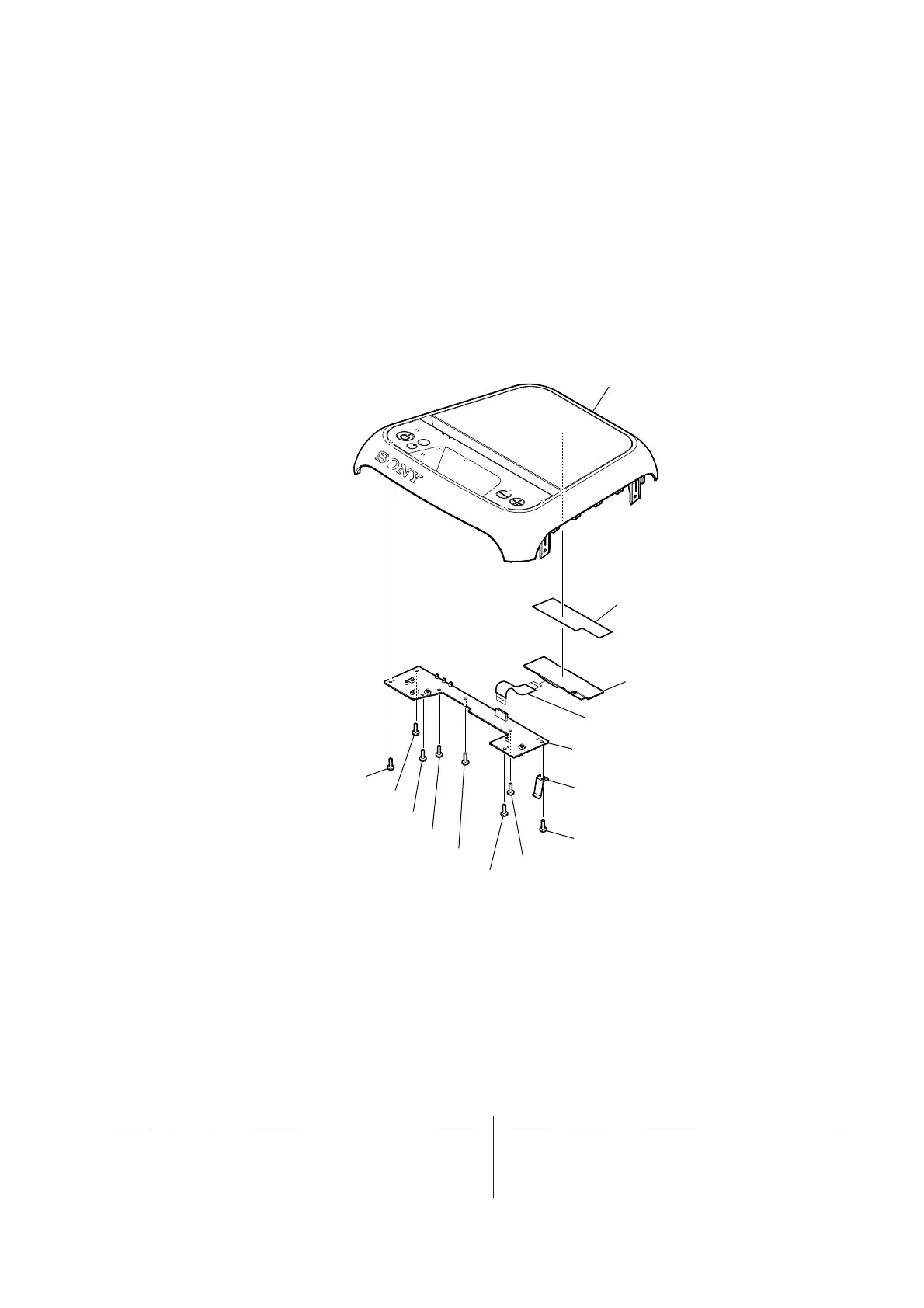

5-3. TOP COVER SECTION
102
103
101
not supplied
FFC2
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
101 9-885-209-34 CONTROL BOARD, COMPLETE
102 9-885-210-93 BT&NFC BOARD, COMPLETE (SERVICE)
103 9-885-209-47 TOP COVER (BLACK) + PLATE (for Black)
103 9-885-209-58 TOP COVER (RED) + PLATE (for Red)
103 9-885-209-69 TOP COVER (BLUE) + PLATE (for Blue)
FFC2 9-885-209-35 FFC (TO BT&NFC)
